SDO HMI 2014-11-11 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.69 | 68.79 | 12.73 | 40.33 | -8.68 | 323.25 | -30.28 | 111.78 | 0.5390 | 882.4 | 560.4 | |
|
previous
or next observation for the same group /

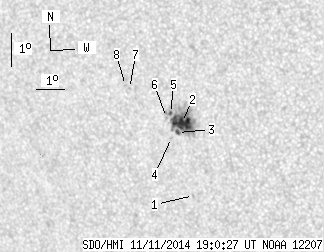

back to the solar disc SDO HMI 2014-11-11 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.56 | -10.89 | 323.54 | -29.99 | 115.76 | 0.5472 | 624.0 | 628.4 | |
| 19.54 | 63.62 | 11.46 | 37.28 | -8.67 | 323.34 | -30.19 | 111.82 | 0.5376 | 1047.5 | 574.8 | |
| 1.38 | -2.00 | 0.81 | -2.00 | -8.98 | 323.18 | -30.35 | 112.25 | 0.5415 | 679.0 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.81 | -9.14 | 322.95 | -30.58 | 112.38 | 0.5453 | 449.0 | 310.8 | |
| 0.77 | -2.00 | 0.46 | -2.00 | -8.41 | 322.98 | -30.55 | 111.14 | 0.5412 | 760.9 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -8.53 | 322.83 | -30.70 | 111.26 | 0.5439 | 472.0 | 371.0 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -7.69 | 321.61 | -31.92 | 109.10 | 0.5567 | 729.0 | 514.8 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -7.61 | 321.47 | -32.06 | 108.87 | 0.5582 | 587.0 | 468.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
