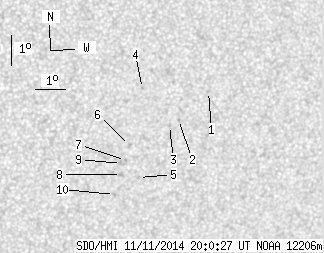

SDO HMI 2014-11-11 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.94 | 0.00 | 8.08 | -23.71 | 9.00 | 16.02 | 209.27 | 0.5197 | 688.1 | 573.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.55 | -21.82 | 11.11 | 18.13 | 214.45 | 0.5128 | 656.0 | 527.6 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -22.72 | 10.22 | 17.24 | 212.11 | 0.5164 | 620.0 | 573.6 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -22.92 | 9.94 | 16.96 | 211.49 | 0.5166 | 735.0 | 612.7 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -21.68 | 8.89 | 15.91 | 211.27 | 0.4928 | 782.0 | 618.7 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -24.63 | 9.12 | 16.14 | 208.48 | 0.5319 | 404.0 | 373.6 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -23.56 | 8.68 | 15.70 | 208.91 | 0.5151 | 766.0 | 580.0 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -24.05 | 8.60 | 15.62 | 208.29 | 0.5209 | 790.0 | 483.8 | |
| 0.00 | 2.32 | 0.00 | 1.35 | -24.52 | 8.52 | 15.55 | 207.72 | 0.5264 | 705.0 | 641.3 | |
| 0.00 | 2.67 | 0.00 | 1.55 | -24.15 | 8.48 | 15.50 | 208.01 | 0.5213 | 727.0 | 605.3 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -25.19 | 8.37 | 15.39 | 206.85 | 0.5339 | 696.0 | 562.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
