SDO HMI 2014-11-11 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 146.52 | 658.51 | 79.10 | 356.43 | 14.35 | 13.40 | 20.97 | 300.03 | 0.4018 | -431.1 | -291.0 | |
|
previous
or next observation for the same group /

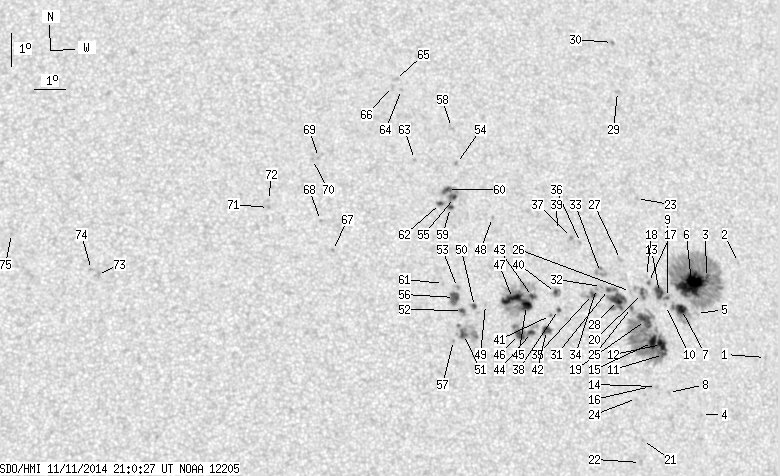

back to the solar disc SDO HMI 2014-11-11 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.72 | 12.36 | 18.37 | 25.94 | 290.99 | 0.4596 | -595.0 | -523.5 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 15.25 | 17.80 | 25.37 | 297.28 | 0.4671 | -619.0 | -467.5 | |
| 1.03 | 204.98 | 0.57 | 113.20 | 14.82 | 16.66 | 24.23 | 297.37 | 0.4487 | -623.6 | -302.3 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 10.70 | 16.07 | 23.65 | 288.84 | 0.4182 | -709.0 | -622.3 | |
| 0.00 | 2.07 | 0.00 | 1.14 | 13.74 | 16.20 | 23.77 | 295.50 | 0.4357 | -205.0 | -249.7 | |
| 34.87 | -3.00 | 19.22 | -3.00 | 14.65 | 16.13 | 23.71 | 297.48 | 0.4403 | -1237.4 | 999999 | |
| 6.89 | 24.11 | 3.77 | 13.21 | 13.87 | 15.71 | 23.29 | 296.20 | 0.4296 | -1127.8 | -564.3 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 11.39 | 15.04 | 22.62 | 291.15 | 0.4060 | -762.0 | -632.1 | |
| 0.52 | 11.28 | 0.28 | 6.16 | 14.24 | 15.29 | 22.86 | 297.38 | 0.4259 | -950.8 | -848.0 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 14.00 | 15.20 | 22.77 | 296.95 | 0.4231 | -646.0 | -590.2 | |
| 1.46 | 127.24 | 0.79 | 68.93 | 12.53 | 14.98 | 22.56 | 293.85 | 0.4112 | -790.4 | -653.2 | |
| 6.80 | -11.00 | 3.69 | -11.00 | 12.83 | 14.94 | 22.52 | 294.57 | 0.4124 | -1009.9 | 999999 | |
| 6.37 | -9.00 | 3.48 | -9.00 | 14.40 | 15.04 | 22.61 | 297.96 | 0.4234 | -1096.5 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 11.58 | 14.67 | 22.24 | 291.89 | 0.4013 | -754.0 | -630.3 | |
| 6.54 | -11.00 | 3.55 | -11.00 | 12.90 | 14.65 | 22.23 | 294.97 | 0.4086 | -1339.1 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 11.58 | 14.47 | 22.05 | 292.06 | 0.3985 | -824.0 | -775.9 | |
| 0.43 | 1.46 | 0.23 | 0.80 | 14.71 | 14.71 | 22.28 | 298.95 | 0.4209 | -825.6 | -733.6 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 14.89 | 14.66 | 22.24 | 299.39 | 0.4215 | -542.0 | -372.6 | |
| 9.64 | -11.00 | 5.23 | -11.00 | 13.57 | 14.49 | 22.06 | 296.64 | 0.4103 | -1197.0 | 999999 | |
| 2.32 | 10.24 | 1.26 | 5.57 | 14.38 | 14.47 | 22.05 | 298.46 | 0.4154 | -1047.3 | -799.6 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 9.97 | 14.08 | 21.66 | 288.41 | 0.3848 | -797.0 | -660.4 | |
| 0.00 | 1.89 | 0.00 | 1.01 | 9.32 | 13.97 | 21.55 | 286.83 | 0.3803 | -410.0 | -512.4 | |
| 0.00 | 1.55 | 0.00 | 0.85 | 17.27 | 14.61 | 22.19 | 304.34 | 0.4386 | -87.0 | -167.7 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 11.23 | 13.98 | 21.56 | 291.61 | 0.3894 | -736.0 | -697.1 | |
| 0.86 | -11.00 | 0.47 | -11.00 | 13.97 | 14.07 | 21.64 | 297.95 | 0.4069 | -1073.3 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.03 | 14.45 | 14.08 | 21.66 | 299.01 | 0.4104 | -769.0 | -496.4 | |
| 0.00 | 2.24 | 0.00 | 1.22 | 15.43 | 13.86 | 21.43 | 301.37 | 0.4143 | -745.0 | -626.5 | |
| 11.45 | 26.69 | 6.19 | 14.43 | 14.19 | 13.66 | 21.24 | 298.86 | 0.4027 | -1162.1 | -797.9 | |
| 0.00 | 2.41 | 0.00 | 1.35 | 20.58 | 14.44 | 22.01 | 310.70 | 0.4647 | -888.0 | -670.4 | |
| 0.00 | 1.64 | 0.00 | 0.92 | 22.11 | 14.51 | 22.08 | 313.21 | 0.4799 | -883.0 | -771.2 | |
| 1.38 | -28.00 | 0.74 | -28.00 | 14.53 | 13.37 | 20.94 | 299.93 | 0.4010 | -1165.8 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 14.62 | 13.15 | 20.72 | 300.39 | 0.3986 | -848.0 | -697.2 | |
| 0.00 | 7.66 | 0.00 | 4.14 | 15.05 | 13.16 | 20.73 | 301.32 | 0.4019 | -896.0 | -789.2 | |
| 0.00 | 1.72 | 0.00 | 0.93 | 14.57 | 12.98 | 20.55 | 300.45 | 0.3959 | -1055.0 | -896.3 | |
| 1.81 | 7.92 | 0.97 | 4.26 | 14.39 | 12.83 | 20.41 | 300.21 | 0.3925 | -1135.6 | -826.4 | |
| 0.00 | 1.46 | 0.00 | 0.79 | 15.97 | 12.60 | 20.17 | 303.99 | 0.4016 | -847.0 | -722.0 | |
| 0.00 | 1.46 | 0.00 | 0.79 | 16.13 | 12.32 | 19.89 | 304.68 | 0.3992 | -1009.0 | -887.9 | |
| 1.03 | 1.89 | 0.55 | 1.01 | 13.96 | 11.68 | 19.26 | 300.55 | 0.3733 | -856.1 | -635.3 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 16.35 | 11.88 | 19.46 | 305.72 | 0.3954 | -878.0 | -656.9 | |
| 1.29 | 5.42 | 0.69 | 2.90 | 14.47 | 11.63 | 19.21 | 301.82 | 0.3766 | -983.7 | -745.9 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 13.78 | 11.41 | 18.98 | 300.46 | 0.3681 | -715.0 | -566.4 | |
| 4.30 | 6.54 | 2.29 | 3.48 | 13.33 | 11.24 | 18.82 | 299.56 | 0.3624 | 831.4 | 507.3 | |
| 2.07 | 76.54 | 1.10 | 40.59 | 14.37 | 10.88 | 18.45 | 302.54 | 0.3653 | 902.3 | 68.6 | |
| 2.15 | 22.81 | 1.14 | 12.07 | 13.28 | 10.76 | 18.33 | 300.04 | 0.3551 | 833.5 | 357.8 | |
| 7.92 | -43.00 | 4.20 | -43.00 | 14.10 | 10.66 | 18.24 | 302.18 | 0.3602 | -958.3 | 999999 | |
| 4.99 | -44.00 | 2.64 | -44.00 | 13.23 | 10.37 | 17.94 | 300.41 | 0.3492 | 977.0 | 999999 | |
| 11.97 | -43.00 | 6.34 | -43.00 | 14.32 | 10.23 | 17.80 | 303.30 | 0.3560 | 905.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 16.79 | 9.80 | 17.38 | 309.60 | 0.3728 | -820.0 | -693.1 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 14.15 | 9.35 | 16.92 | 304.16 | 0.3426 | 688.0 | 589.5 | |
| 1.21 | 2.41 | 0.63 | 1.27 | 14.10 | 8.99 | 16.57 | 304.56 | 0.3373 | 959.9 | 805.1 | |
| 2.84 | 24.36 | 1.49 | 12.76 | 13.26 | 8.58 | 16.16 | 303.01 | 0.3245 | 1017.3 | 307.8 | |
| 1.46 | 4.13 | 0.77 | 2.17 | 13.98 | 8.60 | 16.18 | 304.87 | 0.3310 | 964.6 | 679.2 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 14.68 | 8.50 | 16.07 | 306.80 | 0.3359 | 740.0 | 689.4 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 18.46 | 8.80 | 16.37 | 314.70 | 0.3778 | 842.0 | 706.8 | |
| 1.21 | 18.77 | 0.64 | 9.97 | 17.42 | 8.63 | 16.21 | 312.84 | 0.3648 | 636.7 | -96.1 | |
| 6.20 | 9.90 | 3.25 | 5.19 | 14.38 | 8.38 | 15.95 | 306.24 | 0.3316 | 1077.2 | 876.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 13.08 | 8.25 | 15.83 | 303.05 | 0.3184 | 860.0 | 750.9 | |
| 0.00 | 2.67 | 0.00 | 1.43 | 19.57 | 8.75 | 16.32 | 316.92 | 0.3894 | 631.0 | 596.7 | |
| 1.29 | -55.00 | 0.69 | -55.00 | 17.11 | 8.47 | 16.05 | 312.46 | 0.3597 | 898.8 | 999999 | |
| 2.93 | -55.00 | 1.56 | -55.00 | 17.67 | 8.43 | 16.00 | 313.71 | 0.3650 | -938.7 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 14.81 | 8.06 | 15.63 | 307.84 | 0.3314 | 873.0 | 629.3 | |
| 1.29 | 2.84 | 0.68 | 1.51 | 17.24 | 8.16 | 15.74 | 313.27 | 0.3573 | -863.3 | -665.6 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 18.60 | 7.45 | 15.02 | 317.35 | 0.3641 | 896.0 | 739.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 20.78 | 7.23 | 14.81 | 321.73 | 0.3875 | 755.0 | 608.7 | |
| 0.00 | 2.32 | 0.00 | 1.25 | 21.09 | 7.07 | 14.64 | 322.57 | 0.3897 | 697.0 | 544.2 | |
| 0.00 | 1.98 | 0.00 | 1.06 | 20.87 | 6.95 | 14.52 | 322.42 | 0.3859 | 619.0 | 546.0 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 15.86 | 4.61 | 12.19 | 317.23 | 0.3004 | 793.0 | 635.7 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 16.78 | 4.29 | 11.87 | 320.05 | 0.3080 | -854.0 | -627.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 18.71 | 4.36 | 11.94 | 323.81 | 0.3332 | 799.0 | 710.7 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 18.65 | 4.17 | 11.74 | 324.14 | 0.3306 | 747.0 | 615.5 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 17.19 | 2.67 | 10.25 | 324.90 | 0.2970 | 1001.0 | 787.0 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 17.41 | 2.69 | 10.26 | 325.30 | 0.2999 | 874.0 | 689.6 | |
| 0.00 | 3.62 | 0.00 | 1.84 | 15.20 | 357.26 | 4.84 | 338.56 | 0.2237 | 710.0 | 632.6 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 15.35 | 357.08 | 4.66 | 339.54 | 0.2250 | 923.0 | 729.3 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 16.46 | 354.63 | 2.21 | 350.83 | 0.2326 | 609.0 | 503.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
