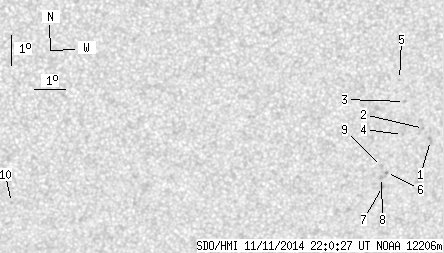

SDO HMI 2014-11-11 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.48 | 0.00 | 7.23 | -23.40 | 8.21 | 16.34 | 209.91 | 0.5199 | 536.7 | 488.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-11 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.84 | 0.00 | 1.65 | -23.01 | 9.96 | 18.09 | 213.02 | 0.5266 | 653.0 | 578.1 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -22.61 | 9.67 | 17.80 | 213.06 | 0.5194 | 721.0 | 651.5 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -21.71 | 8.92 | 17.04 | 212.99 | 0.5022 | 721.0 | 559.6 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -22.79 | 8.99 | 17.11 | 211.85 | 0.5161 | 795.0 | 669.0 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -20.99 | 8.66 | 16.79 | 213.46 | 0.4912 | 559.0 | 498.1 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -24.05 | 8.61 | 16.74 | 209.95 | 0.5288 | 751.0 | 637.3 | |
| 0.00 | 1.81 | 0.00 | 1.06 | -24.52 | 8.54 | 16.66 | 209.37 | 0.5341 | 808.0 | 715.5 | |
| 0.00 | 1.38 | 0.00 | 0.80 | -24.21 | 8.46 | 16.59 | 209.57 | 0.5298 | 833.0 | 614.9 | |
| 0.00 | 1.46 | 0.00 | 0.85 | -23.85 | 8.41 | 16.54 | 209.88 | 0.5248 | 87.0 | 106.6 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -24.90 | 356.22 | 4.34 | 188.29 | 0.4785 | -561.0 | -495.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
