SDO HMI 2014-11-11 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.15 | 0.00 | 9.01 | -10.00 | 337.96 | -13.91 | 134.50 | 0.3313 | -103.7 | -164.5 | |
|
previous
or next observation for the same group /

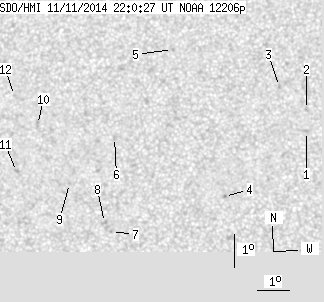

back to the solar disc SDO HMI 2014-11-11 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 0.93 | -9.32 | 343.13 | -8.74 | 145.33 | 0.2649 | 852.0 | 655.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -8.65 | 343.15 | -8.73 | 143.88 | 0.2556 | 873.0 | 549.7 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -7.96 | 342.34 | -9.53 | 139.74 | 0.2549 | 878.0 | 734.9 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -11.33 | 340.55 | -11.32 | 142.46 | 0.3174 | 781.0 | 665.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -6.88 | 339.11 | -12.76 | 128.49 | 0.2815 | 776.0 | 619.2 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -9.57 | 337.22 | -14.65 | 131.40 | 0.3340 | -734.0 | -603.7 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -12.45 | 336.97 | -14.90 | 136.93 | 0.3693 | -777.0 | -629.4 | |
| 0.00 | 2.58 | 0.00 | 1.38 | -12.17 | 336.77 | -15.10 | 136.02 | 0.3684 | -849.0 | -667.5 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -10.99 | 335.74 | -16.13 | 131.78 | 0.3674 | -721.0 | -568.5 | |
| 0.00 | 2.41 | 0.00 | 1.28 | -9.21 | 334.83 | -17.04 | 126.38 | 0.3609 | -717.0 | -622.1 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -10.65 | 334.08 | -17.79 | 128.34 | 0.3845 | -832.0 | -655.8 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -8.34 | 334.15 | -17.72 | 123.34 | 0.3621 | -774.0 | -664.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
