SDO HMI 2014-11-11 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.55 | 73.26 | 13.00 | 42.30 | -8.78 | 323.23 | -28.64 | 113.04 | 0.5169 | 933.1 | 533.0 | |
|
previous
or next observation for the same group /

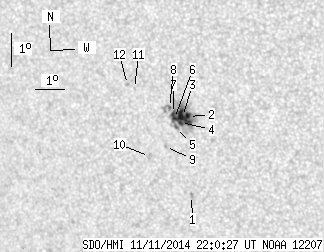

back to the solar disc SDO HMI 2014-11-11 22:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.15 | 0.00 | 1.25 | -11.07 | 323.48 | -28.39 | 117.26 | 0.5270 | 737.0 | 602.3 | |
| 3.87 | 65.26 | 2.23 | 37.63 | -8.66 | 323.61 | -28.26 | 113.09 | 0.5109 | 1326.2 | 524.7 | |
| 10.76 | -2.00 | 6.20 | -2.00 | -8.66 | 323.41 | -28.47 | 112.95 | 0.5138 | 1101.3 | 999999 | |
| 2.32 | -2.00 | 1.34 | -2.00 | -8.85 | 323.32 | -28.55 | 113.22 | 0.5160 | 883.4 | 999999 | |
| 0.69 | -2.00 | 0.40 | -2.00 | -9.00 | 323.17 | -28.70 | 113.40 | 0.5189 | 641.9 | 999999 | |
| 2.41 | -2.00 | 1.39 | -2.00 | -8.73 | 323.13 | -28.75 | 112.88 | 0.5180 | 895.8 | 999999 | |
| 2.07 | -2.00 | 1.19 | -2.00 | -8.58 | 323.10 | -28.77 | 112.59 | 0.5175 | 875.3 | 999999 | |
| 0.43 | -2.00 | 0.25 | -2.00 | -8.40 | 322.98 | -28.89 | 112.18 | 0.5182 | 768.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -9.59 | 322.74 | -29.13 | 114.13 | 0.5281 | 778.0 | 658.8 | |
| 0.00 | 2.50 | 0.00 | 1.46 | -9.91 | 322.15 | -29.72 | 114.28 | 0.5379 | 559.0 | 484.3 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -7.86 | 321.82 | -30.05 | 110.45 | 0.5316 | 674.0 | 626.8 | |
| 0.00 | 1.55 | 0.00 | 0.91 | -7.74 | 321.59 | -30.29 | 110.11 | 0.5343 | 799.0 | 611.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
