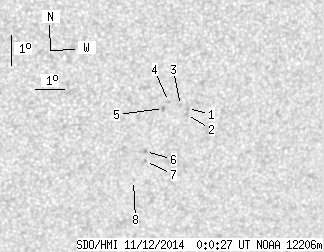

SDO HMI 2014-11-12 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.52 | 0.00 | 6.14 | -23.31 | 9.22 | 18.46 | 213.23 | 0.5331 | 717.1 | 600.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-12 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.70 | -22.75 | 9.88 | 19.11 | 214.75 | 0.5318 | 666.0 | 602.9 | |
| 0.00 | 1.55 | 0.00 | 0.91 | -22.95 | 9.87 | 19.10 | 214.51 | 0.5341 | 772.0 | 585.0 | |
| 0.00 | 1.55 | 0.00 | 0.90 | -22.65 | 9.62 | 18.86 | 214.52 | 0.5284 | 661.0 | 526.2 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -22.51 | 9.20 | 18.43 | 214.09 | 0.5232 | 686.0 | 570.0 | |
| 0.00 | 1.55 | 0.00 | 0.90 | -22.73 | 9.06 | 18.29 | 213.63 | 0.5248 | 800.0 | 662.8 | |
| 0.00 | 1.38 | 0.00 | 0.81 | -24.15 | 8.65 | 17.88 | 211.48 | 0.5386 | 780.0 | 685.5 | |
| 0.00 | 1.38 | 0.00 | 0.81 | -24.49 | 8.70 | 17.93 | 211.19 | 0.5430 | 679.0 | 585.1 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -25.12 | 8.38 | 17.61 | 210.10 | 0.5483 | 693.0 | 565.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
