SDO HMI 2014-11-12 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.82 | 72.00 | 13.03 | 41.14 | -8.78 | 323.22 | -27.54 | 113.82 | 0.5016 | 905.2 | 535.0 | |
|
previous
or next observation for the same group /

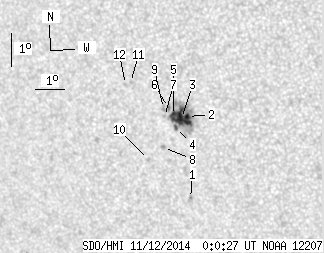

back to the solar disc SDO HMI 2014-11-12 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.50 | 0.00 | 1.44 | -11.14 | 323.47 | -27.30 | 118.28 | 0.5131 | 855.0 | 677.4 | |
| 2.93 | 58.04 | 1.67 | 33.11 | -8.64 | 323.59 | -27.18 | 113.85 | 0.4957 | 1362.3 | 522.7 | |
| 14.90 | -2.00 | 8.50 | -2.00 | -8.71 | 323.38 | -27.38 | 113.81 | 0.4990 | 1041.6 | 999999 | |
| 1.12 | -2.00 | 0.64 | -2.00 | -8.99 | 323.16 | -27.61 | 114.15 | 0.5037 | 614.9 | 999999 | |
| 3.87 | -2.00 | 2.22 | -2.00 | -8.62 | 323.12 | -27.65 | 113.46 | 0.5022 | 880.6 | 999999 | |
| 0.00 | 2.58 | 0.00 | 1.48 | -8.39 | 322.97 | -27.80 | 112.90 | 0.5029 | 778.0 | 564.1 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -8.66 | 322.81 | -27.96 | 113.30 | 0.5067 | 283.0 | 243.2 | |
| 0.00 | 1.64 | 0.00 | 0.94 | -9.61 | 322.69 | -28.07 | 114.93 | 0.5137 | 861.0 | 717.6 | |
| 0.00 | 2.76 | 0.00 | 1.58 | -8.42 | 322.80 | -27.97 | 112.84 | 0.5055 | 608.0 | 491.4 | |
| 0.00 | 1.38 | 0.00 | 0.80 | -9.99 | 322.14 | -28.62 | 115.19 | 0.5235 | 738.0 | 551.9 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -7.66 | 321.73 | -29.04 | 110.72 | 0.5164 | 731.0 | 587.4 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -7.73 | 321.55 | -29.22 | 110.72 | 0.5192 | 705.0 | 573.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
