Sunspot Group 12205

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

12205	118.62	580.57	65.32	320.06	14.25	13.87	23.65	297.03	0.4383	-484.5	-272.9

previous or next observation for the same group / back to the solar disc

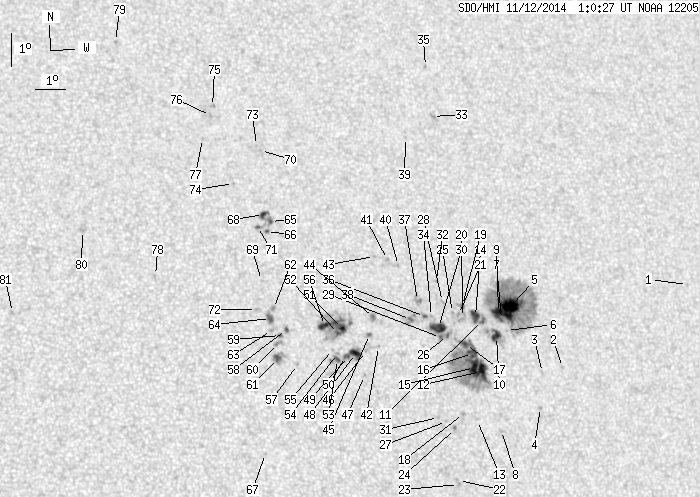

SDO HMI 2014-11-12 01:00:27 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	0.86	0.00	0.51	15.18	22.63	32.41	292.64	0.5626	-563.0	-451.8
2	0.00	1.12	0.00	0.63	12.81	17.85	27.64	290.90	0.4862	-717.0	-536.7
3	0.00	0.69	0.00	0.39	12.67	17.15	26.94	291.06	0.4755	-679.0	-506.8
4	0.00	1.38	0.00	0.77	11.63	16.97	26.75	289.02	0.4683	-744.0	-613.2
5	25.49	197.56	14.32	111.09	14.66	16.27	26.05	295.63	0.4732	-1175.1	-280.8
6	0.00	0.95	0.00	0.53	13.97	16.08	25.86	294.39	0.4667	-605.0	-482.0
7	0.26	-5.00	0.14	-5.00	14.31	15.95	25.73	295.16	0.4668	-992.0	999999
8	0.00	1.89	0.00	1.05	10.97	15.59	25.37	288.42	0.4452	-824.0	-622.5
9	8.18	-5.00	4.58	-5.00	14.52	15.88	25.66	295.65	0.4669	-1197.6	999999
10	5.43	18.00	3.02	10.03	13.80	15.72	25.50	294.30	0.4607	-1032.6	-631.9
11	1.55	14.04	0.86	7.80	14.29	15.31	25.09	295.63	0.4576	-964.0	-784.7
12	9.99	125.82	5.52	69.38	12.76	15.10	24.88	292.59	0.4463	-950.1	-577.8
13	0.00	0.78	0.00	0.43	11.29	14.82	24.60	289.59	0.4351	-586.0	-527.1
14	6.11	-11.00	3.40	-11.00	14.42	15.08	24.87	296.06	0.4553	-1026.8	999999
15	8.96	-12.00	4.94	-12.00	12.88	14.88	24.66	293.02	0.4437	-1277.6	999999
16	5.86	-12.00	3.24	-12.00	13.30	14.85	24.64	293.93	0.4457	-1028.6	999999
17	3.88	-12.00	2.14	-12.00	13.58	14.65	24.43	294.67	0.4443	-1110.0	999999
18	0.00	1.55	0.00	0.85	11.51	14.37	24.15	290.38	0.4296	-812.0	-632.1
19	0.86	2.84	0.48	1.58	14.76	14.69	24.47	297.09	0.4518	-781.5	-604.1
20	0.00	4.91	0.00	2.72	14.40	14.64	24.43	296.38	0.4490	-902.0	-800.9
21	0.00	1.38	0.00	0.76	14.49	14.52	24.30	296.68	0.4478	-922.0	-817.8
22	0.00	1.21	0.00	0.66	9.51	14.04	23.82	286.00	0.4162	-677.0	-643.9
23	0.00	0.86	0.00	0.47	9.39	14.03	23.81	285.73	0.4156	-652.0	-666.6
24	0.00	1.72	0.00	0.94	11.07	14.07	23.85	289.59	0.4230	-918.0	-795.4
25	0.00	1.12	0.00	0.62	14.56	14.33	24.11	296.98	0.4455	-759.0	-619.2
26	0.86	23.17	0.47	12.73	13.87	14.08	23.86	295.74	0.4378	-1012.1	-720.5
27	0.00	1.12	0.00	0.61	11.28	13.79	23.57	290.27	0.4198	-611.0	-512.1
28	0.00	1.72	0.00	0.95	14.90	14.03	23.81	297.94	0.4435	-795.0	-640.2
29	0.78	-26.00	0.43	-26.00	13.81	13.84	23.62	295.83	0.4341	-1038.2	999999
30	10.08	-26.00	5.54	-26.00	14.11	13.81	23.59	296.50	0.4355	-1133.9	999999
31	0.00	1.03	0.00	0.56	11.41	13.53	23.32	290.74	0.4166	-823.0	-704.4
32	0.00	1.21	0.00	0.67	15.54	13.91	23.69	299.37	0.4460	-829.0	-708.0
33	0.00	2.24	0.00	1.27	20.57	14.51	24.29	308.18	0.4920	-860.0	-704.3
34	0.00	1.12	0.00	0.62	14.45	13.61	23.39	297.39	0.4348	-860.0	-750.2
35	0.00	1.38	0.00	0.79	22.14	14.54	24.33	310.75	0.5057	-794.0	-642.4
36	0.86	2.33	0.47	1.28	14.46	13.38	23.16	297.61	0.4316	-1047.2	-888.3
37	0.00	5.94	0.00	3.26	14.95	13.20	22.98	298.82	0.4323	-1076.0	-837.0
38	0.78	4.31	0.42	2.35	14.38	12.90	22.68	297.88	0.4244	-1083.3	-896.3
39	0.00	0.78	0.00	0.44	19.94	13.47	23.25	308.19	0.4742	-700.0	-507.6
40	0.00	0.95	0.00	0.52	16.02	12.69	22.47	301.56	0.4330	-828.0	-575.4
41	0.00	1.55	0.00	0.85	16.21	12.35	22.13	302.31	0.4298	-909.0	-808.4
42	0.00	1.21	0.00	0.65	13.59	11.76	21.54	297.23	0.4032	-637.0	-494.7
43	0.00	0.78	0.00	0.42	16.31	11.92	21.71	302.98	0.4249	-829.0	-680.9
44	0.00	3.96	0.00	2.15	14.46	11.69	21.47	299.28	0.4081	-1089.0	-870.4
45	0.52	2.67	0.28	1.44	13.95	11.50	21.29	298.33	0.4020	-891.8	-561.2
46	0.00	0.60	0.00	0.32	13.44	11.32	21.11	297.34	0.3960	195.0	191.0
47	0.00	1.21	0.00	0.65	12.72	11.22	21.01	295.75	0.3899	653.0	673.4
48	5.60	13.35	3.01	7.17	13.39	10.99	20.77	297.56	0.3909	833.2	618.4
49	0.26	-48.00	0.14	-48.00	13.30	10.76	20.54	297.61	0.3869	957.0	999999
50	0.26	-48.00	0.14	-48.00	13.31	10.66	20.44	297.71	0.3856	1053.7	999999
51	2.50	57.87	1.34	31.08	14.15	10.64	20.42	299.71	0.3912	-816.3	149.3
52	1.72	-51.00	0.92	-51.00	14.00	10.49	20.28	299.53	0.3881	-961.4	999999
53	1.46	4.74	0.78	2.53	13.22	10.39	20.17	297.80	0.3811	1007.6	844.6
54	0.00	1.29	0.00	0.69	13.40	10.41	20.19	298.21	0.3826	623.0	560.9
55	0.00	0.95	0.00	0.51	13.53	10.25	20.04	298.67	0.3813	570.0	473.8
56	4.99	-51.00	2.68	-51.00	14.26	10.06	19.84	300.60	0.3839	970.3	999999
57	0.00	1.12	0.00	0.59	13.10	9.09	18.87	298.97	0.3616	-907.0	-657.1
58	0.78	2.24	0.41	1.19	14.16	8.82	18.60	301.90	0.3659	860.3	686.4
59	0.52	1.72	0.27	0.91	13.98	8.61	18.39	301.74	0.3616	961.8	808.9
60	0.00	3.70	0.00	1.96	13.74	8.53	18.31	301.27	0.3586	687.0	531.5
61	2.67	9.30	1.41	4.92	13.29	8.46	18.24	300.23	0.3541	991.4	659.0
62	0.00	2.15	0.00	1.15	14.80	8.46	18.24	303.91	0.3662	851.0	689.8
63	0.00	1.46	0.00	0.78	14.14	8.33	18.12	302.49	0.3591	965.0	754.3
64	2.41	6.72	1.28	3.57	14.50	8.33	18.11	303.37	0.3620	1111.4	828.2
65	0.95	18.95	0.51	10.18	17.45	8.62	18.40	309.53	0.3921	907.7	-122.1
66	0.69	-65.00	0.37	-65.00	17.15	8.45	18.24	309.14	0.3872	873.2	999999
67	0.00	1.03	0.00	0.54	10.45	7.88	17.66	293.28	0.3262	-699.0	-572.1
68	2.67	-65.00	1.44	-65.00	17.67	8.41	18.19	310.28	0.3916	-923.8	999999
69	0.00	1.12	0.00	0.60	15.66	8.14	17.93	306.33	0.3695	697.0	500.0
70	0.00	1.03	0.00	0.56	19.64	8.53	18.32	313.95	0.4128	787.0	671.0
71	0.69	-65.00	0.37	-65.00	17.30	8.18	17.96	309.88	0.3852	-835.9	999999
72	0.00	1.21	0.00	0.64	14.78	7.91	17.69	304.63	0.3586	775.0	646.9
73	0.00	0.95	0.00	0.51	19.80	8.42	18.20	314.41	0.4132	743.0	582.1
74	0.00	0.95	0.00	0.51	18.64	7.53	17.31	313.57	0.3908	812.0	650.7
75	0.00	1.98	0.00	1.08	21.03	7.11	16.89	318.65	0.4122	611.0	537.5
76	0.00	1.72	0.00	0.93	20.75	7.01	16.79	318.33	0.4080	865.0	718.0
77	0.00	1.03	0.00	0.56	20.04	6.66	16.44	317.63	0.3963	902.0	641.7
78	0.00	1.03	0.00	0.54	15.86	4.76	14.54	312.41	0.3285	772.0	649.3
79	0.00	1.12	0.00	0.61	23.12	4.12	13.90	327.12	0.4088	704.0	562.5
80	0.00	2.33	0.00	1.21	17.27	2.53	12.32	320.13	0.3192	955.0	750.2
81	0.00	1.55	0.00	0.80	14.80	0.19	9.97	320.28	0.2631	883.0	653.5

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
