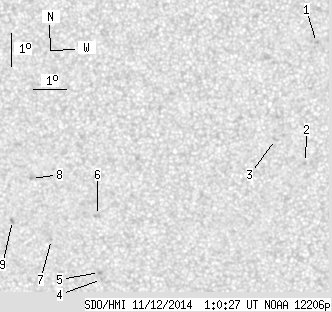

SDO HMI 2014-11-12 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.43 | 0.00 | 7.01 | -9.63 | 338.09 | -12.13 | 137.86 | 0.3054 | -253.4 | -267.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-12 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.65 | -5.05 | 343.67 | -6.55 | 141.62 | 0.1839 | 944.0 | 783.7 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -8.67 | 343.28 | -6.94 | 149.85 | 0.2389 | 759.0 | 564.0 | |
| 0.00 | 2.07 | 0.00 | 1.05 | -7.98 | 342.38 | -7.83 | 145.14 | 0.2372 | 709.0 | 607.5 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -12.30 | 336.89 | -13.32 | 139.77 | 0.3502 | -848.0 | -725.3 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -12.09 | 336.84 | -13.38 | 139.25 | 0.3481 | -915.0 | -815.6 | |
| 0.00 | 2.50 | 0.00 | 1.31 | -10.34 | 336.86 | -13.35 | 135.72 | 0.3269 | -649.0 | -671.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -11.09 | 335.39 | -14.82 | 134.35 | 0.3526 | -732.0 | -574.4 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -9.24 | 334.86 | -15.35 | 129.28 | 0.3392 | -814.0 | -713.8 | |
| 0.00 | 1.89 | 0.00 | 1.01 | -10.53 | 334.20 | -16.01 | 130.97 | 0.3608 | -735.0 | -687.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
