SDO HMI 2014-11-12 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.20 | 493.26 | 65.55 | 347.66 | -11.07 | 307.05 | -43.17 | 109.16 | 0.7124 | -28.4 | -279.6 | |
|
previous
or next observation for the same group /

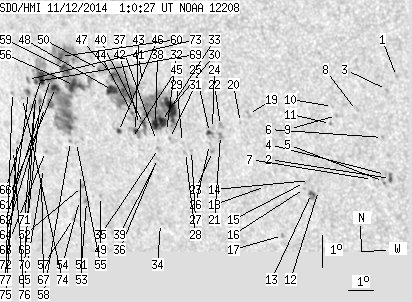

back to the solar disc SDO HMI 2014-11-12 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.73 | -9.97 | 318.13 | -32.09 | 112.79 | 0.5697 | 727.0 | 615.5 | |
| 1.21 | 3.36 | 0.74 | 2.07 | -13.12 | 317.50 | -32.72 | 117.38 | 0.5951 | 945.1 | 786.9 | |
| 0.00 | 1.21 | 0.00 | 0.73 | -10.38 | 317.73 | -32.49 | 113.21 | 0.5771 | 536.0 | 446.9 | |
| 0.00 | 1.12 | 0.00 | 0.69 | -13.00 | 317.34 | -32.88 | 117.09 | 0.5964 | 566.0 | 528.9 | |
| 0.00 | 2.33 | 0.00 | 1.44 | -13.22 | 317.23 | -32.99 | 117.36 | 0.5990 | 646.0 | 612.9 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -11.86 | 317.39 | -32.82 | 115.36 | 0.5893 | -457.0 | -425.0 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -13.17 | 316.84 | -33.38 | 117.02 | 0.6036 | 622.0 | 639.7 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -11.06 | 316.56 | -33.66 | 113.58 | 0.5958 | 710.0 | 618.0 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -11.23 | 315.80 | -34.42 | 113.41 | 0.6064 | 694.0 | 548.2 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -10.96 | 315.69 | -34.53 | 112.93 | 0.6064 | 616.0 | 515.5 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -11.49 | 315.55 | -34.67 | 113.65 | 0.6109 | 662.0 | 567.3 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -13.58 | 314.77 | -35.45 | 116.32 | 0.6313 | 544.0 | 544.0 | |
| 1.55 | 4.91 | 0.99 | 3.14 | -13.68 | 314.49 | -35.73 | 116.30 | 0.6353 | 885.9 | 671.6 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -13.28 | 314.48 | -35.74 | 115.71 | 0.6332 | 768.0 | 690.0 | |
| 0.00 | 0.34 | 0.00 | 0.22 | -13.35 | 314.28 | -35.94 | 115.69 | 0.6360 | 761.0 | 744.5 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -13.53 | 314.25 | -35.97 | 115.95 | 0.6374 | 541.0 | 431.9 | |
| 0.00 | 1.29 | 0.00 | 0.85 | -15.03 | 313.12 | -37.10 | 117.42 | 0.6586 | 727.0 | 575.0 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -13.52 | 312.76 | -37.46 | 115.09 | 0.6552 | 394.0 | 351.9 | |
| 0.00 | 2.50 | 0.00 | 1.62 | -11.31 | 312.49 | -37.73 | 111.76 | 0.6484 | 720.0 | 581.2 | |
| 0.00 | 0.69 | 0.00 | 0.45 | -11.57 | 312.14 | -38.08 | 111.96 | 0.6538 | 596.0 | 504.5 | |
| 0.00 | 2.67 | 0.00 | 1.77 | -12.00 | 311.29 | -38.93 | 112.16 | 0.6660 | 889.0 | 766.6 | |
| 0.00 | 3.10 | 0.00 | 2.05 | -11.69 | 311.34 | -38.88 | 111.75 | 0.6640 | 776.0 | 648.9 | |
| 0.00 | 1.38 | 0.00 | 0.92 | -12.51 | 310.88 | -39.33 | 112.68 | 0.6730 | 649.0 | 582.6 | |
| 0.00 | 2.50 | 0.00 | 1.66 | -11.79 | 311.01 | -39.21 | 111.74 | 0.6685 | 619.0 | 474.1 | |
| 1.46 | 5.17 | 0.98 | 3.44 | -11.92 | 310.87 | -39.35 | 111.85 | 0.6707 | 715.1 | 565.5 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -12.29 | 310.80 | -39.41 | 112.35 | 0.6731 | 583.0 | 459.1 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -12.51 | 310.05 | -40.17 | 112.29 | 0.6829 | 664.0 | 498.1 | |
| 0.00 | 1.55 | 0.00 | 1.05 | -12.58 | 309.80 | -40.42 | 112.27 | 0.6862 | 403.0 | 366.7 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -12.27 | 309.74 | -40.48 | 111.82 | 0.6857 | 370.0 | 389.4 | |
| 18.09 | 110.92 | 12.27 | 75.97 | -11.24 | 309.44 | -40.78 | 110.25 | 0.6851 | 868.4 | 100.0 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -12.17 | 309.23 | -40.99 | 111.45 | 0.6912 | 641.0 | 485.6 | |
| 0.00 | 0.78 | 0.00 | 0.53 | -11.95 | 309.15 | -41.07 | 111.12 | 0.6913 | 557.0 | 526.6 | |
| 6.72 | -30.00 | 4.59 | -30.00 | -11.65 | 309.01 | -41.21 | 110.64 | 0.6919 | 878.3 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.24 | -14.83 | 308.29 | -41.93 | 114.62 | 0.7129 | 572.0 | 546.0 | |
| 0.00 | 1.89 | 0.00 | 1.31 | -12.49 | 308.72 | -41.49 | 111.68 | 0.6984 | 470.0 | 362.1 | |
| 0.00 | 1.64 | 0.00 | 1.13 | -12.80 | 308.62 | -41.60 | 112.05 | 0.7009 | 175.0 | 224.2 | |
| 0.00 | 0.52 | 0.00 | 0.36 | -12.25 | 308.69 | -41.53 | 111.33 | 0.6979 | 421.0 | 442.5 | |
| 6.72 | -30.00 | 4.61 | -30.00 | -11.72 | 308.75 | -41.47 | 110.63 | 0.6952 | 724.3 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.66 | -12.96 | 308.50 | -41.71 | 112.22 | 0.7028 | 387.0 | 368.5 | |
| 2.41 | -30.00 | 1.67 | -30.00 | -11.74 | 308.26 | -41.96 | 110.45 | 0.7010 | 474.0 | 999999 | |
| 0.00 | 2.33 | 0.00 | 1.60 | -10.51 | 308.44 | -41.78 | 108.83 | 0.6945 | 411.0 | 280.1 | |
| 0.00 | 1.46 | 0.00 | 1.02 | -11.78 | 308.09 | -42.13 | 110.43 | 0.7032 | -348.0 | -235.1 | |
| 1.81 | -30.00 | 1.26 | -30.00 | -12.00 | 307.88 | -42.34 | 110.65 | 0.7064 | 315.4 | 999999 | |
| 0.52 | 83.54 | 0.36 | 58.24 | -11.45 | 307.86 | -42.36 | 109.89 | 0.7046 | 153.7 | -504.5 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -12.23 | 307.67 | -42.55 | 110.87 | 0.7096 | 287.0 | 225.5 | |
| 1.29 | 2.76 | 0.91 | 1.94 | -12.03 | 307.17 | -43.05 | 110.40 | 0.7147 | 595.9 | 425.2 | |
| 3.70 | -44.00 | 2.59 | -44.00 | -10.31 | 307.28 | -42.94 | 108.11 | 0.7075 | -956.3 | 999999 | |
| 7.15 | -44.00 | 5.01 | -44.00 | -10.77 | 307.16 | -43.06 | 108.70 | 0.7104 | -952.7 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.94 | -14.08 | 305.95 | -44.27 | 112.61 | 0.7358 | -767.0 | -710.6 | |
| 0.60 | 7.66 | 0.42 | 5.39 | -10.15 | 306.73 | -43.49 | 107.69 | 0.7134 | -917.0 | -581.4 | |
| 0.00 | 2.33 | 0.00 | 1.72 | -14.26 | 305.30 | -44.92 | 112.58 | 0.7435 | -828.0 | -749.3 | |
| 0.00 | 1.89 | 0.00 | 1.40 | -13.80 | 305.24 | -44.98 | 111.96 | 0.7425 | -862.0 | -748.5 | |
| 0.00 | 1.21 | 0.00 | 0.89 | -13.43 | 305.24 | -44.97 | 111.48 | 0.7411 | -729.0 | -532.7 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -14.25 | 305.00 | -45.22 | 112.43 | 0.7467 | -601.0 | -575.3 | |
| 0.00 | 1.21 | 0.00 | 0.88 | -12.44 | 305.30 | -44.92 | 110.22 | 0.7371 | -707.0 | -567.6 | |
| 11.28 | 198.16 | 8.12 | 144.26 | -10.68 | 305.58 | -44.64 | 108.01 | 0.7284 | -880.6 | -534.2 | |
| 0.00 | 1.55 | 0.00 | 1.16 | -14.82 | 304.58 | -45.64 | 113.00 | 0.7532 | -636.0 | -552.9 | |
| 0.00 | 1.12 | 0.00 | 0.82 | -12.42 | 305.05 | -45.17 | 110.10 | 0.7399 | -684.0 | -647.5 | |
| 5.34 | -56.00 | 3.86 | -56.00 | -10.21 | 305.28 | -44.94 | 107.27 | 0.7303 | -927.7 | 999999 | |
| 2.76 | -56.00 | 1.99 | -56.00 | -9.82 | 305.14 | -45.08 | 106.70 | 0.7308 | -775.8 | 999999 | |
| 4.31 | -56.00 | 3.15 | -56.00 | -10.78 | 304.74 | -45.47 | 107.84 | 0.7381 | -932.1 | 999999 | |
| 4.22 | -56.00 | 3.09 | -56.00 | -10.51 | 304.58 | -45.64 | 107.44 | 0.7391 | -837.1 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.10 | -12.78 | 303.87 | -46.35 | 110.13 | 0.7539 | -667.0 | -484.8 | |
| 0.00 | 0.69 | 0.00 | 0.51 | -11.41 | 304.13 | -46.08 | 108.47 | 0.7468 | -513.0 | -450.5 | |
| 0.00 | 0.95 | 0.00 | 0.72 | -13.31 | 303.65 | -46.57 | 110.73 | 0.7579 | -262.0 | -293.2 | |
| 7.32 | -56.00 | 5.40 | -56.00 | -10.50 | 304.19 | -46.03 | 107.29 | 0.7435 | -852.0 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.52 | -13.53 | 303.50 | -46.72 | 110.96 | 0.7602 | -391.0 | -325.9 | |
| 0.86 | 3.01 | 0.64 | 2.24 | -11.21 | 304.00 | -46.21 | 108.15 | 0.7476 | -718.3 | -552.8 | |
| 1.38 | -56.00 | 1.02 | -56.00 | -10.63 | 303.90 | -46.32 | 107.37 | 0.7471 | -623.3 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.83 | -11.06 | 303.81 | -46.40 | 107.90 | 0.7493 | -698.0 | -625.6 | |
| 0.52 | 3.01 | 0.39 | 2.26 | -11.37 | 303.70 | -46.51 | 108.27 | 0.7514 | -584.7 | -456.2 | |
| 1.46 | 3.27 | 1.10 | 2.45 | -10.98 | 303.52 | -46.70 | 107.70 | 0.7523 | -612.1 | -483.8 | |
| 0.52 | 2.33 | 0.39 | 1.74 | -10.58 | 303.56 | -46.66 | 107.20 | 0.7507 | -511.2 | -408.2 | |
| 0.00 | 0.60 | 0.00 | 0.45 | -11.18 | 303.21 | -47.00 | 107.86 | 0.7562 | -505.0 | -466.6 | |
| 0.00 | 1.38 | 0.00 | 1.06 | -12.55 | 302.67 | -47.55 | 109.43 | 0.7660 | -569.0 | -455.3 | |
| 0.00 | 0.78 | 0.00 | 0.60 | -12.81 | 302.43 | -47.79 | 109.67 | 0.7693 | -523.0 | -468.7 | |
| 0.00 | 1.21 | 0.00 | 0.92 | -11.01 | 302.80 | -47.42 | 107.51 | 0.7602 | -440.0 | -355.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
