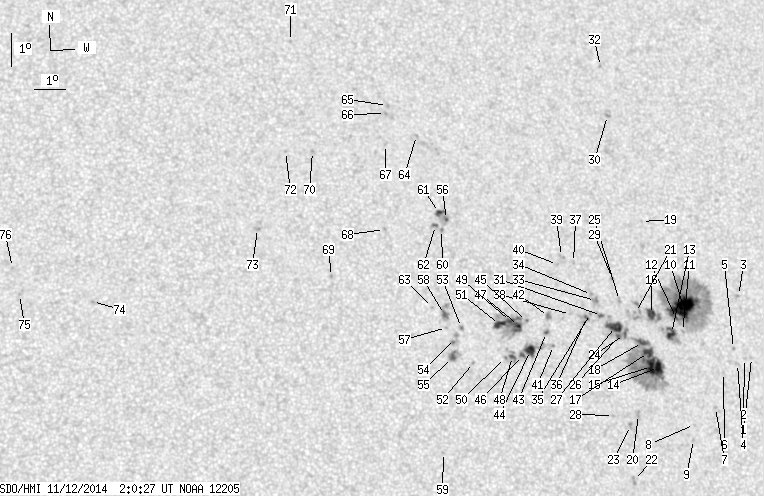

SDO HMI 2014-11-12 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 112.75 | 592.81 | 62.41 | 328.25 | 14.22 | 13.90 | 24.23 | 296.51 | 0.4463 | -492.1 | -314.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-12 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.54 | 13.04 | 18.37 | 28.70 | 290.76 | 0.5024 | -612.0 | -543.3 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 13.02 | 18.13 | 28.46 | 290.86 | 0.4989 | -647.0 | -507.4 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 14.92 | 18.18 | 28.51 | 294.43 | 0.5086 | -603.0 | -502.2 | |
| 0.00 | 1.64 | 0.00 | 0.93 | 12.87 | 17.87 | 28.20 | 290.72 | 0.4945 | -669.0 | -596.4 | |
| 0.00 | 1.21 | 0.00 | 0.69 | 13.33 | 17.78 | 28.12 | 291.65 | 0.4954 | -689.0 | -603.8 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 12.62 | 17.35 | 27.68 | 290.51 | 0.4861 | -665.0 | -480.9 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 11.57 | 16.96 | 27.29 | 288.64 | 0.4760 | -700.0 | -593.1 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 11.08 | 16.19 | 26.53 | 288.03 | 0.4629 | -638.0 | -463.0 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 10.64 | 16.12 | 26.45 | 287.13 | 0.4600 | -586.0 | -497.3 | |
| 28.85 | 210.84 | 16.27 | 118.98 | 14.64 | 16.23 | 26.56 | 295.23 | 0.4803 | -1199.1 | -335.0 | |
| 0.00 | 1.46 | 0.00 | 0.82 | 13.89 | 16.10 | 26.43 | 293.83 | 0.4744 | -527.0 | -434.5 | |
| 0.86 | -10.00 | 0.48 | -10.00 | 14.29 | 15.95 | 26.28 | 294.73 | 0.4743 | -920.4 | 999999 | |
| 6.46 | 16.88 | 3.62 | 9.45 | 13.84 | 15.72 | 26.05 | 294.00 | 0.4687 | -1018.2 | -608.4 | |
| 9.13 | 156.84 | 5.07 | 86.83 | 12.82 | 15.16 | 25.49 | 292.31 | 0.4555 | -957.4 | -573.1 | |
| 11.11 | -14.00 | 6.16 | -14.00 | 12.86 | 14.93 | 25.26 | 292.55 | 0.4524 | -1236.5 | 999999 | |
| 5.60 | -10.00 | 3.13 | -10.00 | 14.43 | 15.11 | 25.44 | 295.64 | 0.4635 | -1026.2 | 999999 | |
| 6.29 | -14.00 | 3.49 | -14.00 | 13.28 | 14.88 | 25.21 | 293.48 | 0.4538 | -1062.7 | 999999 | |
| 3.70 | -14.00 | 2.06 | -14.00 | 13.59 | 14.71 | 25.04 | 294.24 | 0.4531 | -997.3 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 17.26 | 15.16 | 25.49 | 301.10 | 0.4819 | -589.0 | -524.4 | |
| 0.00 | 3.79 | 0.00 | 2.08 | 11.43 | 14.35 | 24.68 | 289.87 | 0.4370 | -803.0 | -623.3 | |
| 0.00 | 14.90 | 0.00 | 8.29 | 14.50 | 14.58 | 24.91 | 296.21 | 0.4564 | -942.0 | -687.6 | |
| 0.00 | 3.19 | 0.00 | 1.74 | 9.46 | 14.05 | 24.38 | 285.61 | 0.4245 | -890.0 | -692.1 | |
| 0.00 | 2.33 | 0.00 | 1.28 | 11.11 | 14.05 | 24.38 | 289.34 | 0.4312 | -920.0 | -760.1 | |
| 0.86 | -14.00 | 0.48 | -14.00 | 13.85 | 14.13 | 24.46 | 295.22 | 0.4463 | -1001.4 | 999999 | |
| 0.00 | 2.41 | 0.00 | 1.34 | 14.88 | 14.08 | 24.42 | 297.39 | 0.4518 | -805.0 | -598.6 | |
| 1.12 | -14.00 | 0.62 | -14.00 | 13.79 | 13.92 | 24.25 | 295.27 | 0.4430 | -1043.8 | 999999 | |
| 9.56 | -14.00 | 5.28 | -14.00 | 14.09 | 13.86 | 24.19 | 295.96 | 0.4439 | -1160.7 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.71 | 11.42 | 13.52 | 23.85 | 290.40 | 0.4246 | -785.0 | -638.3 | |
| 0.00 | 1.46 | 0.00 | 0.81 | 15.55 | 13.93 | 24.26 | 298.88 | 0.4540 | -873.0 | -746.8 | |
| 0.00 | 1.81 | 0.00 | 1.03 | 20.55 | 14.52 | 24.85 | 307.59 | 0.4985 | -918.0 | -718.2 | |
| 0.78 | 3.19 | 0.43 | 1.76 | 14.44 | 13.43 | 23.76 | 297.05 | 0.4399 | -1071.6 | -826.0 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 22.08 | 14.55 | 24.88 | 310.09 | 0.5117 | -784.0 | -690.5 | |
| 0.00 | 4.39 | 0.00 | 2.42 | 14.90 | 13.28 | 23.61 | 298.14 | 0.4408 | -1014.0 | -845.2 | |
| 0.00 | 1.55 | 0.00 | 0.85 | 15.08 | 13.17 | 23.50 | 298.62 | 0.4404 | -868.0 | -687.0 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 14.51 | 13.07 | 23.40 | 297.51 | 0.4353 | -1027.0 | -912.6 | |
| 1.03 | 6.29 | 0.57 | 3.45 | 14.39 | 12.92 | 23.25 | 297.40 | 0.4325 | -1092.2 | -850.7 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 16.06 | 12.68 | 23.01 | 301.11 | 0.4406 | -700.0 | -659.9 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 14.49 | 12.40 | 22.73 | 298.10 | 0.4259 | -740.0 | -540.1 | |
| 0.00 | 1.64 | 0.00 | 0.90 | 16.26 | 12.30 | 22.64 | 301.88 | 0.4370 | -782.0 | -814.9 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 16.02 | 12.14 | 22.47 | 301.56 | 0.4330 | -830.0 | -608.6 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 13.57 | 11.74 | 22.07 | 296.70 | 0.4106 | -759.0 | -591.1 | |
| 0.00 | 4.48 | 0.00 | 2.44 | 14.45 | 11.66 | 22.00 | 298.72 | 0.4153 | -1128.0 | -872.4 | |
| 0.60 | 1.64 | 0.33 | 0.89 | 13.96 | 11.55 | 21.88 | 297.77 | 0.4105 | -963.7 | -800.4 | |
| 6.55 | 20.15 | 3.53 | 10.88 | 13.43 | 10.97 | 21.30 | 297.14 | 0.3988 | 865.5 | 285.5 | |
| 0.00 | 1.64 | 0.00 | 0.89 | 14.31 | 10.92 | 21.26 | 299.18 | 0.4041 | 805.0 | 705.1 | |
| 1.29 | -44.00 | 0.70 | -44.00 | 13.29 | 10.69 | 21.03 | 297.08 | 0.3939 | 974.1 | 999999 | |
| 1.55 | 45.22 | 0.84 | 24.36 | 14.19 | 10.65 | 20.98 | 299.21 | 0.3994 | -696.2 | -39.8 | |
| 1.55 | 6.98 | 0.83 | 3.75 | 13.26 | 10.37 | 20.70 | 297.36 | 0.3890 | 1041.6 | 720.1 | |
| 2.76 | -47.00 | 1.49 | -47.00 | 14.32 | 10.40 | 20.73 | 299.76 | 0.3968 | 778.9 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 13.24 | 10.13 | 20.47 | 297.54 | 0.3855 | 829.0 | 728.3 | |
| 5.34 | -47.00 | 2.87 | -47.00 | 14.24 | 10.03 | 20.36 | 299.98 | 0.3911 | 1001.1 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 13.11 | 9.09 | 19.42 | 298.38 | 0.3696 | -757.0 | -491.9 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 14.17 | 8.79 | 19.12 | 301.29 | 0.3733 | 919.0 | 785.9 | |
| 0.00 | 4.74 | 0.00 | 2.52 | 13.84 | 8.57 | 18.90 | 300.79 | 0.3677 | 410.0 | 764.9 | |
| 1.98 | 9.22 | 1.05 | 4.89 | 13.27 | 8.42 | 18.75 | 299.57 | 0.3613 | 1016.0 | 711.9 | |
| 0.78 | 12.40 | 0.42 | 6.69 | 17.46 | 8.63 | 18.96 | 308.78 | 0.3993 | 869.8 | -70.8 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 14.18 | 8.30 | 18.64 | 301.93 | 0.3667 | 829.0 | 630.7 | |
| 1.55 | 9.30 | 0.83 | 4.96 | 14.57 | 8.27 | 18.61 | 302.90 | 0.3694 | 1105.3 | 814.8 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 10.43 | 7.93 | 18.26 | 292.61 | 0.3353 | -784.0 | -668.5 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 17.16 | 8.43 | 18.76 | 308.43 | 0.3940 | 922.0 | 805.6 | |
| 2.67 | -56.00 | 1.44 | -56.00 | 17.68 | 8.42 | 18.75 | 309.52 | 0.3988 | -907.8 | 999999 | |
| 0.78 | 2.24 | 0.42 | 1.21 | 17.29 | 8.25 | 18.58 | 308.95 | 0.3929 | -749.0 | -628.0 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 14.79 | 7.91 | 18.24 | 303.91 | 0.3662 | 827.0 | 667.6 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 20.07 | 7.94 | 18.27 | 314.82 | 0.4168 | 726.0 | 628.2 | |
| 0.00 | 1.55 | 0.00 | 0.84 | 21.02 | 7.09 | 17.42 | 317.79 | 0.4177 | 730.0 | 617.1 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 20.77 | 6.99 | 17.32 | 317.51 | 0.4140 | 807.0 | 715.9 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 19.81 | 6.88 | 17.21 | 315.96 | 0.4022 | 731.0 | 647.3 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 17.19 | 6.57 | 16.90 | 311.28 | 0.3712 | -785.0 | -595.1 | |
| 0.00 | 1.29 | 0.00 | 0.68 | 15.79 | 4.74 | 15.08 | 311.26 | 0.3344 | 790.0 | 597.5 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 19.63 | 4.46 | 14.80 | 319.77 | 0.3740 | 705.0 | 609.5 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 23.07 | 4.10 | 14.43 | 326.11 | 0.4129 | 735.0 | 652.9 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 19.64 | 3.59 | 13.92 | 321.45 | 0.3651 | 693.0 | 549.4 | |
| 0.00 | 1.98 | 0.00 | 1.04 | 17.28 | 2.50 | 12.83 | 319.07 | 0.3250 | 906.0 | 822.4 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 15.12 | 357.20 | 7.53 | 328.54 | 0.2434 | 813.0 | 668.9 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 15.35 | 354.94 | 5.28 | 337.14 | 0.2294 | 862.0 | 741.4 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 16.17 | 354.75 | 5.08 | 339.23 | 0.2411 | 818.0 | 647.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
