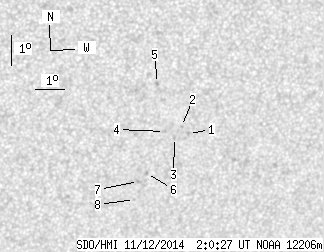

SDO HMI 2014-11-12 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.52 | 0.00 | 4.99 | -23.11 | 8.99 | 19.32 | 214.65 | 0.5377 | 713.5 | 628.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-12 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.61 | -22.83 | 9.88 | 20.22 | 216.16 | 0.5420 | 717.0 | 624.2 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -22.59 | 9.61 | 19.94 | 216.07 | 0.5369 | 597.0 | 513.1 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -22.95 | 9.42 | 19.76 | 215.40 | 0.5394 | 708.0 | 570.1 | |
| 0.00 | 1.46 | 0.00 | 0.86 | -22.74 | 9.05 | 19.38 | 215.14 | 0.5338 | 712.0 | 572.1 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -21.16 | 8.59 | 18.92 | 216.42 | 0.5115 | 859.0 | 731.3 | |
| 0.00 | 1.46 | 0.00 | 0.86 | -24.13 | 8.64 | 18.97 | 213.02 | 0.5467 | 759.0 | 623.1 | |
| 0.00 | 1.38 | 0.00 | 0.81 | -24.39 | 8.41 | 18.74 | 212.42 | 0.5479 | 804.0 | 739.9 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -25.00 | 8.36 | 18.69 | 211.72 | 0.5547 | 552.0 | 520.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
