SDO HMI 2014-11-12 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.91 | 512.27 | 76.80 | 358.04 | -11.09 | 307.04 | -42.63 | 109.38 | 0.7060 | -112.5 | -266.4 | |
|
previous
or next observation for the same group /

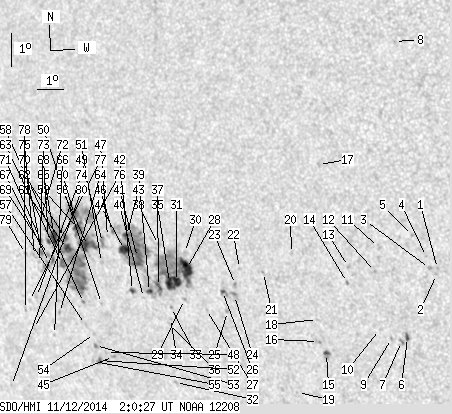

back to the solar disc SDO HMI 2014-11-12 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.62 | -10.95 | 318.92 | -30.75 | 115.27 | 0.5572 | 665.0 | 584.6 | |
| 0.00 | 1.29 | 0.00 | 0.77 | -11.13 | 318.86 | -30.81 | 115.53 | 0.5591 | 511.0 | 441.7 | |
| 0.00 | 1.81 | 0.00 | 1.08 | -10.96 | 318.64 | -31.03 | 115.09 | 0.5610 | 638.0 | 565.9 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -10.59 | 318.57 | -31.09 | 114.44 | 0.5598 | 626.0 | 587.7 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -9.96 | 318.15 | -31.52 | 113.12 | 0.5621 | 807.0 | 640.6 | |
| 1.29 | 3.01 | 0.79 | 1.84 | -13.11 | 317.56 | -32.10 | 117.78 | 0.5873 | 967.7 | 773.5 | |
| 0.00 | 2.24 | 0.00 | 1.37 | -13.24 | 317.33 | -32.34 | 117.82 | 0.5910 | 825.0 | 715.0 | |
| 0.00 | 0.78 | 0.00 | 0.46 | -4.12 | 317.97 | -31.70 | 102.82 | 0.5396 | 617.0 | 495.4 | |
| 0.00 | 1.46 | 0.00 | 0.90 | -13.16 | 316.98 | -32.69 | 117.45 | 0.5949 | 611.0 | 455.4 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -12.89 | 316.58 | -33.08 | 116.78 | 0.5983 | 602.0 | 531.3 | |
| 0.00 | 1.81 | 0.00 | 1.10 | -10.37 | 316.89 | -32.78 | 113.00 | 0.5808 | 597.0 | 540.5 | |
| 0.00 | 1.29 | 0.00 | 0.79 | -11.11 | 316.69 | -32.98 | 114.06 | 0.5872 | 458.0 | 508.1 | |
| 0.00 | 1.46 | 0.00 | 0.90 | -10.98 | 315.72 | -33.94 | 113.28 | 0.5990 | 725.0 | 596.9 | |
| 0.00 | 1.29 | 0.00 | 0.80 | -11.48 | 315.62 | -34.05 | 113.99 | 0.6028 | 610.0 | 576.9 | |
| 1.64 | 4.82 | 1.04 | 3.06 | -13.70 | 314.49 | -35.17 | 116.66 | 0.6285 | 889.2 | 704.4 | |
| 0.00 | 2.07 | 0.00 | 1.31 | -13.33 | 314.26 | -35.41 | 115.98 | 0.6295 | 765.0 | 601.1 | |
| 0.00 | 1.89 | 0.00 | 1.16 | -7.91 | 314.99 | -34.68 | 107.99 | 0.5948 | 652.0 | 420.2 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -12.65 | 314.33 | -35.33 | 115.02 | 0.6250 | 512.0 | 450.5 | |
| 0.00 | 0.78 | 0.00 | 0.50 | -14.95 | 313.16 | -36.51 | 117.66 | 0.6512 | 611.0 | 586.4 | |
| 0.00 | 1.12 | 0.00 | 0.71 | -10.65 | 313.66 | -36.01 | 111.63 | 0.6238 | 476.0 | 424.9 | |
| 0.00 | 0.78 | 0.00 | 0.50 | -11.27 | 312.52 | -37.15 | 111.97 | 0.6410 | 743.0 | 665.1 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -11.18 | 311.61 | -38.06 | 111.39 | 0.6518 | 354.0 | 385.5 | |
| 0.00 | 1.89 | 0.00 | 1.24 | -11.68 | 311.38 | -38.29 | 112.00 | 0.6568 | 751.0 | 681.1 | |
| 0.00 | 3.62 | 0.00 | 2.38 | -12.02 | 311.28 | -38.39 | 112.44 | 0.6595 | 862.0 | 694.4 | |
| 0.00 | 1.64 | 0.00 | 1.08 | -12.52 | 310.92 | -38.75 | 112.99 | 0.6661 | 583.0 | 546.1 | |
| 1.12 | 3.36 | 0.74 | 2.22 | -11.91 | 310.83 | -38.84 | 112.07 | 0.6645 | 689.5 | 611.2 | |
| 0.00 | 0.78 | 0.00 | 0.52 | -12.49 | 310.10 | -39.57 | 112.54 | 0.6757 | 530.0 | 407.4 | |
| 13.18 | 114.63 | 8.85 | 77.85 | -11.25 | 309.53 | -40.14 | 110.54 | 0.6776 | 953.2 | 89.3 | |
| 0.00 | 1.38 | 0.00 | 0.93 | -12.21 | 309.27 | -40.39 | 111.77 | 0.6844 | 622.0 | 481.4 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -10.76 | 309.53 | -40.14 | 109.85 | 0.6757 | 732.0 | 607.7 | |
| 6.63 | -28.00 | 4.49 | -28.00 | -11.67 | 309.05 | -40.61 | 110.91 | 0.6848 | 850.8 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.90 | -14.81 | 308.36 | -41.31 | 114.88 | 0.7058 | 622.0 | 462.8 | |
| 0.00 | 1.03 | 0.00 | 0.71 | -12.48 | 308.70 | -40.97 | 111.88 | 0.6922 | 498.0 | 395.2 | |
| 0.00 | 1.12 | 0.00 | 0.77 | -12.82 | 308.59 | -41.08 | 112.30 | 0.6948 | 363.0 | 324.9 | |
| 8.78 | -28.00 | 5.98 | -28.00 | -11.71 | 308.77 | -40.90 | 110.85 | 0.6884 | 668.2 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.89 | -12.98 | 308.52 | -41.15 | 112.49 | 0.6963 | 380.0 | 340.3 | |
| 3.27 | -28.00 | 2.25 | -28.00 | -11.85 | 308.30 | -41.37 | 110.84 | 0.6945 | 486.6 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -10.56 | 308.52 | -41.14 | 109.14 | 0.6870 | 512.0 | 467.3 | |
| 1.98 | -28.00 | 1.37 | -28.00 | -12.02 | 307.90 | -41.77 | 110.90 | 0.6998 | 206.7 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -12.21 | 307.61 | -42.05 | 111.05 | 0.7038 | 362.0 | 274.4 | |
| 11.45 | 86.04 | 7.91 | 59.43 | -10.99 | 307.60 | -42.07 | 109.36 | 0.6995 | -620.8 | -482.5 | |
| 1.38 | 2.33 | 0.96 | 1.63 | -12.01 | 307.20 | -42.47 | 110.60 | 0.7079 | 686.2 | 489.0 | |
| 2.67 | -41.00 | 1.85 | -41.00 | -10.33 | 307.26 | -42.41 | 108.33 | 0.7013 | -1019.9 | 999999 | |
| 7.32 | -41.00 | 5.09 | -41.00 | -10.76 | 307.11 | -42.56 | 108.86 | 0.7046 | -934.7 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.99 | -14.10 | 305.94 | -43.72 | 112.85 | 0.7298 | -876.0 | -732.3 | |
| 0.52 | 8.01 | 0.36 | 5.58 | -10.23 | 306.70 | -42.97 | 107.98 | 0.7075 | -947.3 | -577.3 | |
| 0.00 | 1.12 | 0.00 | 0.79 | -10.39 | 306.47 | -43.20 | 108.12 | 0.7108 | -717.0 | -552.8 | |
| 0.00 | 1.12 | 0.00 | 0.81 | -13.99 | 305.67 | -43.99 | 112.59 | 0.7324 | -571.0 | -501.9 | |
| 0.00 | 5.60 | 0.00 | 3.95 | -10.58 | 306.23 | -43.44 | 108.29 | 0.7142 | -887.0 | -740.4 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -12.47 | 305.81 | -43.86 | 110.65 | 0.7254 | 369.0 | 280.7 | |
| 0.00 | 1.72 | 0.00 | 1.22 | -11.20 | 306.07 | -43.60 | 109.06 | 0.7181 | 104.0 | 12.1 | |
| 1.12 | 3.19 | 0.82 | 2.33 | -14.25 | 305.31 | -44.36 | 112.78 | 0.7373 | -765.1 | -685.4 | |
| 0.43 | 1.81 | 0.31 | 1.32 | -13.79 | 305.25 | -44.42 | 112.16 | 0.7363 | -844.4 | -707.9 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -13.41 | 305.30 | -44.37 | 111.69 | 0.7344 | -520.0 | -544.7 | |
| 0.00 | 1.72 | 0.00 | 1.26 | -14.29 | 305.04 | -44.63 | 112.72 | 0.7404 | -580.0 | -499.7 | |
| 12.75 | 201.36 | 9.10 | 145.28 | -10.70 | 305.57 | -44.09 | 108.21 | 0.7221 | -870.4 | -500.5 | |
| 0.00 | 1.38 | 0.00 | 1.01 | -13.15 | 304.97 | -44.69 | 111.22 | 0.7370 | -618.0 | -462.4 | |
| 0.00 | 1.12 | 0.00 | 0.81 | -12.47 | 305.04 | -44.62 | 110.36 | 0.7339 | -708.0 | -655.4 | |
| 8.10 | -56.00 | 5.79 | -56.00 | -10.19 | 305.29 | -44.38 | 107.43 | 0.7239 | -912.7 | 999999 | |
| 4.74 | -56.00 | 3.39 | -56.00 | -9.77 | 305.19 | -44.48 | 106.83 | 0.7237 | -700.6 | 999999 | |
| 5.00 | -56.00 | 3.62 | -56.00 | -10.83 | 304.70 | -44.97 | 108.07 | 0.7325 | -947.9 | 999999 | |
| 2.41 | -56.00 | 1.75 | -56.00 | -10.49 | 304.68 | -44.99 | 107.62 | 0.7317 | -810.4 | 999999 | |
| 3.88 | -56.00 | 2.83 | -56.00 | -11.30 | 304.39 | -45.28 | 108.58 | 0.7374 | -740.1 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.70 | -12.82 | 303.92 | -45.75 | 110.40 | 0.7474 | -550.0 | -423.5 | |
| 7.32 | -56.00 | 5.35 | -56.00 | -10.48 | 304.21 | -45.46 | 107.45 | 0.7370 | -865.5 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.84 | -13.51 | 303.53 | -46.14 | 111.14 | 0.7540 | -294.0 | -310.2 | |
| 0.00 | 5.51 | 0.00 | 4.07 | -11.29 | 303.83 | -45.84 | 108.38 | 0.7437 | -476.0 | -573.3 | |
| 1.38 | -56.00 | 1.01 | -56.00 | -10.64 | 303.91 | -45.75 | 107.57 | 0.7408 | -643.4 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.40 | -11.04 | 303.83 | -45.83 | 108.06 | 0.7429 | -732.0 | -593.8 | |
| 0.95 | 2.84 | 0.70 | 2.11 | -10.99 | 303.54 | -46.13 | 107.90 | 0.7460 | -677.2 | -537.7 | |
| 0.60 | 1.98 | 0.45 | 1.46 | -10.60 | 303.57 | -46.09 | 107.39 | 0.7445 | -468.9 | -391.6 | |
| 0.00 | 0.60 | 0.00 | 0.44 | -9.95 | 303.70 | -45.97 | 106.59 | 0.7412 | -461.0 | -387.7 | |
| 0.00 | 1.29 | 0.00 | 0.96 | -11.31 | 303.39 | -46.28 | 108.25 | 0.7486 | -489.0 | -390.3 | |
| 0.00 | 1.55 | 0.00 | 1.17 | -12.36 | 303.02 | -46.65 | 109.49 | 0.7558 | -437.0 | -479.9 | |
| 0.00 | 2.58 | 0.00 | 1.93 | -11.10 | 303.21 | -46.46 | 107.93 | 0.7500 | -432.0 | -418.1 | |
| 0.00 | 0.78 | 0.00 | 0.59 | -13.37 | 302.63 | -47.03 | 110.63 | 0.7630 | -460.0 | -407.4 | |
| 0.00 | 1.12 | 0.00 | 0.85 | -12.50 | 302.67 | -47.00 | 109.55 | 0.7600 | -506.0 | -427.5 | |
| 0.00 | 1.29 | 0.00 | 0.99 | -12.79 | 302.42 | -47.25 | 109.82 | 0.7635 | -533.0 | -410.9 | |
| 0.00 | 1.29 | 0.00 | 0.97 | -11.05 | 302.82 | -46.85 | 107.74 | 0.7541 | -465.0 | -336.5 | |
| 0.00 | 0.78 | 0.00 | 0.62 | -15.20 | 301.10 | -48.56 | 112.36 | 0.7846 | -497.0 | -404.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
