Sunspot Group 12205

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

12205	105.27	593.63	58.64	330.11	14.28	13.87	24.75	296.19	0.4541	-413.0	-276.4

previous or next observation for the same group / back to the solar disc

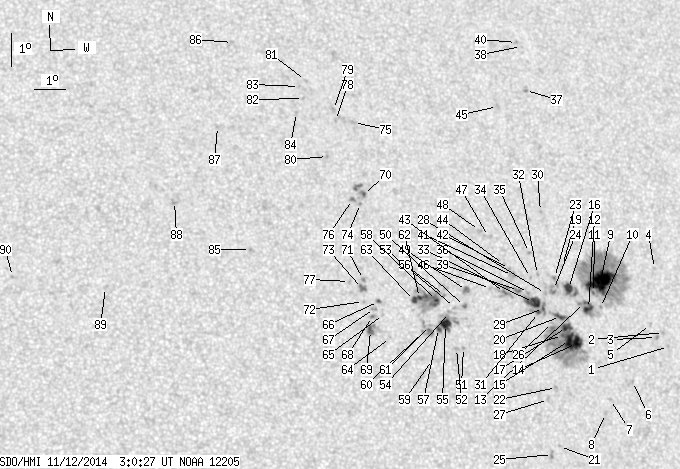

SDO HMI 2014-11-12 03:00:27 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	1.12	0.00	0.64	12.60	18.33	29.21	289.66	0.5077	-644.0	-535.0
2	0.00	1.29	0.00	0.74	13.02	18.21	29.09	290.53	0.5078	-707.0	-506.7
3	0.00	1.55	0.00	0.89	12.88	17.94	28.82	290.40	0.5035	-714.0	-671.5
4	0.00	1.38	0.00	0.80	14.96	18.16	29.04	294.18	0.5162	-572.0	-479.3
5	0.00	1.38	0.00	0.79	13.28	17.79	28.67	291.25	0.5030	-654.0	-570.3
6	0.00	1.12	0.00	0.63	11.58	16.96	27.84	288.38	0.4841	-739.0	-628.5
7	0.00	1.12	0.00	0.63	11.06	16.15	27.03	287.74	0.4703	-439.0	-405.7
8	0.00	1.46	0.00	0.82	10.65	15.94	26.82	286.98	0.4656	-753.0	-593.0
9	31.61	191.30	17.92	108.60	14.65	16.24	27.12	294.86	0.4880	-1173.8	-281.5
10	0.00	1.29	0.00	0.73	13.84	16.13	27.01	293.35	0.4823	-451.0	-452.3
11	0.60	-9.00	0.34	-9.00	14.29	15.95	26.83	294.37	0.4821	-876.1	999999
12	4.31	19.29	2.42	10.85	13.82	15.72	26.60	293.59	0.4764	-1071.9	-679.7
13	0.78	-12.00	0.44	-12.00	14.00	15.60	26.48	294.04	0.4757	-994.3	999999
14	10.16	122.57	5.68	68.23	12.77	15.18	26.06	291.84	0.4636	-985.9	-530.1
15	9.56	-14.00	5.33	-14.00	12.87	14.96	25.84	292.19	0.4608	-1269.9	999999
16	5.68	12.75	3.19	7.15	14.44	15.11	25.99	295.26	0.4712	-1057.5	-806.6
17	5.25	-14.00	2.93	-14.00	13.26	14.90	25.78	293.04	0.4619	-1056.7	999999
18	0.95	-14.00	0.53	-14.00	13.02	14.74	25.62	292.66	0.4584	-1303.5	999999
19	0.00	0.78	0.00	0.44	15.14	15.00	25.88	296.73	0.4737	-631.0	-458.3
20	3.10	-14.00	1.73	-14.00	13.60	14.74	25.62	293.84	0.4614	-991.9	999999
21	0.00	1.12	0.00	0.62	9.70	14.31	25.19	285.75	0.4378	-727.0	-612.8
22	0.00	1.29	0.00	0.71	11.47	14.37	25.25	289.61	0.4457	-807.0	-679.7
23	0.00	1.29	0.00	0.72	14.78	14.68	25.56	296.27	0.4671	-845.0	-710.6
24	0.00	7.24	0.00	4.04	14.42	14.60	25.48	295.61	0.4639	-772.0	-827.5
25	0.00	2.84	0.00	1.56	9.47	14.06	24.94	285.36	0.4332	-756.0	-682.2
26	0.00	1.03	0.00	0.57	13.42	14.44	25.33	293.70	0.4563	-366.0	-319.8
27	0.00	1.89	0.00	1.04	11.12	14.07	24.95	289.02	0.4397	-839.0	-633.1
28	0.00	1.89	0.00	1.06	14.30	14.31	25.19	295.60	0.4593	-794.0	-655.3
29	1.21	25.50	0.67	14.14	13.85	14.19	25.07	294.77	0.4550	-1018.9	-725.0
30	0.00	1.03	0.00	0.58	16.80	14.47	25.35	300.36	0.4771	-716.0	-550.8
31	0.95	-29.00	0.53	-29.00	13.74	14.01	24.89	294.67	0.4518	-987.3	999999
32	0.00	1.21	0.00	0.67	14.89	14.11	24.99	296.94	0.4599	-799.0	-679.4
33	9.65	-29.00	5.35	-29.00	14.04	13.87	24.76	295.41	0.4516	-1139.4	999999
34	0.00	0.78	0.00	0.43	14.80	13.86	24.75	296.97	0.4560	-838.0	-746.2
35	0.00	1.21	0.00	0.67	15.56	13.93	24.81	298.44	0.4616	-838.0	-703.4
36	0.00	1.21	0.00	0.67	14.35	13.74	24.62	296.15	0.4516	-843.0	-723.5
37	0.00	1.46	0.00	0.84	20.53	14.56	25.44	306.97	0.5056	-940.0	-768.4
38	0.00	0.34	0.00	0.20	21.90	14.68	25.56	309.13	0.5181	-673.0	-626.2
39	0.95	3.10	0.52	1.72	14.42	13.41	24.29	296.56	0.4474	-986.6	-835.0
40	0.00	1.46	0.00	0.85	22.03	14.52	25.40	309.49	0.5174	-721.0	-544.0
41	0.00	5.08	0.00	2.81	14.88	13.27	24.15	297.63	0.4482	-1032.0	-762.6
42	0.00	1.12	0.00	0.62	15.09	13.19	24.07	298.14	0.4485	-839.0	-712.2
43	0.52	11.89	0.28	6.55	14.37	12.94	23.82	296.87	0.4404	-1132.5	-778.4
44	0.00	1.55	0.00	0.86	15.22	13.00	23.89	298.56	0.4467	-746.0	-586.6
45	0.00	2.24	0.00	1.27	20.06	13.50	24.38	307.22	0.4889	-604.0	-535.0
46	0.00	1.38	0.00	0.76	14.50	12.48	23.36	297.54	0.4349	-887.0	-695.1
47	0.00	2.84	0.00	1.57	16.08	12.61	23.49	300.68	0.4472	-598.0	-585.4
48	0.00	2.33	0.00	1.28	16.27	12.33	23.21	301.33	0.4448	-731.0	-712.9
49	0.00	4.22	0.00	2.31	14.46	11.68	22.56	298.20	0.4234	-1088.0	-828.1
50	0.52	2.41	0.28	1.31	13.97	11.56	22.44	297.27	0.4186	-923.3	-690.9
51	0.00	1.21	0.00	0.65	12.74	11.41	22.29	294.64	0.4087	689.0	568.6
52	0.00	2.24	0.00	1.21	12.72	11.17	22.05	294.79	0.4052	793.0	634.0
53	0.00	1.46	0.00	0.80	13.95	11.23	22.11	297.53	0.4137	-212.0	-205.9
54	0.00	1.29	0.00	0.70	13.80	11.05	21.93	297.38	0.4102	104.0	134.3
55	7.24	21.62	3.92	11.71	13.45	10.88	21.76	296.73	0.4055	902.6	311.9
56	0.00	1.29	0.00	0.70	14.32	10.94	21.82	298.64	0.4121	779.0	642.7
57	1.55	-55.00	0.84	-55.00	13.33	10.64	21.52	296.70	0.4013	954.2	999999
58	1.38	40.91	0.75	22.12	14.18	10.66	21.54	298.60	0.4072	-748.6	31.0
59	0.00	0.86	0.00	0.46	12.40	10.36	21.24	294.80	0.3915	682.0	492.2
60	0.00	1.12	0.00	0.60	13.43	10.39	21.27	297.17	0.3983	820.0	672.1
61	0.00	9.99	0.00	5.38	13.31	10.25	21.13	297.04	0.3955	981.0	677.2
62	1.38	-58.00	0.74	-58.00	14.28	10.11	20.99	299.40	0.4002	1023.4	999999
63	2.58	-58.00	1.39	-58.00	14.19	9.94	20.82	299.39	0.3972	1011.9	999999
64	0.00	0.78	0.00	0.41	13.09	9.05	19.93	297.78	0.3770	-813.0	-562.2
65	0.00	1.12	0.00	0.60	13.79	8.89	19.77	299.63	0.3795	622.0	440.8
66	0.60	1.46	0.32	0.78	14.18	8.76	19.64	300.71	0.3807	806.4	743.9
67	0.00	2.24	0.00	1.20	13.97	8.61	19.49	300.39	0.3771	970.0	800.0
68	0.00	2.58	0.00	1.38	13.73	8.53	19.41	299.93	0.3741	895.0	608.1
69	2.58	10.59	1.38	5.65	13.31	8.43	19.31	299.03	0.3696	993.0	502.2
70	0.78	8.96	0.42	4.85	17.45	8.60	19.48	308.04	0.4058	804.0	-370.5
71	0.00	2.07	0.00	1.11	14.86	8.34	19.22	302.79	0.3801	885.0	754.5
72	0.00	1.21	0.00	0.64	14.19	8.28	19.16	301.32	0.3740	634.0	582.5
73	1.38	4.91	0.74	2.62	14.59	8.28	19.16	302.24	0.3771	1091.1	859.6
74	0.00	1.12	0.00	0.61	17.17	8.47	19.35	307.66	0.4017	974.0	766.2
75	0.00	2.50	0.00	1.37	19.67	8.54	19.42	312.44	0.4261	757.0	641.7
76	0.00	2.41	0.00	1.30	17.30	8.22	19.11	308.26	0.3997	-785.0	-594.0
77	0.00	1.21	0.00	0.64	14.81	7.88	18.76	303.27	0.3734	836.0	631.3
78	0.00	1.21	0.00	0.66	19.74	7.95	18.83	313.41	0.4199	737.0	633.6
79	0.00	2.41	0.00	1.32	20.08	7.92	18.80	314.07	0.4232	642.0	584.4
80	0.00	1.38	0.00	0.75	18.63	7.55	18.43	311.89	0.4042	893.0	645.0
81	0.00	1.29	0.00	0.71	21.00	7.10	17.98	316.91	0.4237	652.0	529.5
82	0.00	1.12	0.00	0.61	20.44	6.97	17.85	316.13	0.4162	790.0	623.2
83	0.00	1.21	0.00	0.66	20.82	6.88	17.76	316.93	0.4193	689.0	577.0
84	0.00	0.95	0.00	0.51	20.01	6.68	17.56	315.79	0.4084	885.0	635.8
85	0.00	1.29	0.00	0.68	15.83	4.77	15.66	310.35	0.3422	862.0	624.5
86	0.00	1.81	0.00	0.98	22.23	4.82	15.70	322.62	0.4143	586.0	449.7
87	0.00	1.03	0.00	0.55	19.62	4.05	14.93	319.52	0.3754	780.0	576.8
88	0.00	2.76	0.00	1.45	17.33	2.46	13.34	318.10	0.3313	668.0	748.3
89	0.00	1.72	0.00	0.89	14.74	0.12	11.00	317.45	0.2740	539.0	433.3
90	0.00	0.95	0.00	0.48	15.10	357.24	8.12	326.60	0.2487	834.0	689.5

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
