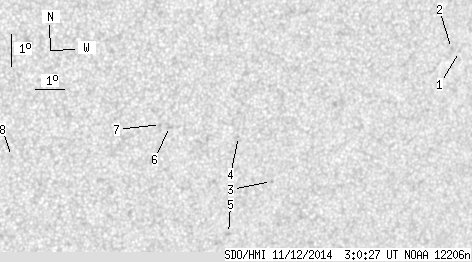

SDO HMI 2014-11-12 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.68 | 0.00 | 6.30 | -16.10 | 15.69 | 26.57 | 232.47 | 0.5426 | -328.1 | -341.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-12 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.65 | -13.59 | 23.06 | 33.94 | 242.73 | 0.6128 | 704.0 | 539.4 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -13.49 | 22.75 | 33.63 | 242.68 | 0.6084 | 789.0 | 632.4 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -17.47 | 16.93 | 27.81 | 232.06 | 0.5665 | -606.0 | -513.6 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -16.01 | 15.56 | 26.44 | 232.91 | 0.5387 | -697.0 | -572.7 | |
| 0.00 | 1.81 | 0.00 | 1.09 | -19.09 | 15.69 | 26.58 | 228.51 | 0.5666 | -691.0 | -683.8 | |
| 0.00 | 3.10 | 0.00 | 1.78 | -15.64 | 13.15 | 24.03 | 230.94 | 0.5072 | -710.0 | -573.3 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -15.57 | 12.84 | 23.72 | 230.69 | 0.5029 | -701.0 | -530.1 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -16.46 | 8.00 | 18.88 | 222.92 | 0.4576 | -713.0 | -536.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
