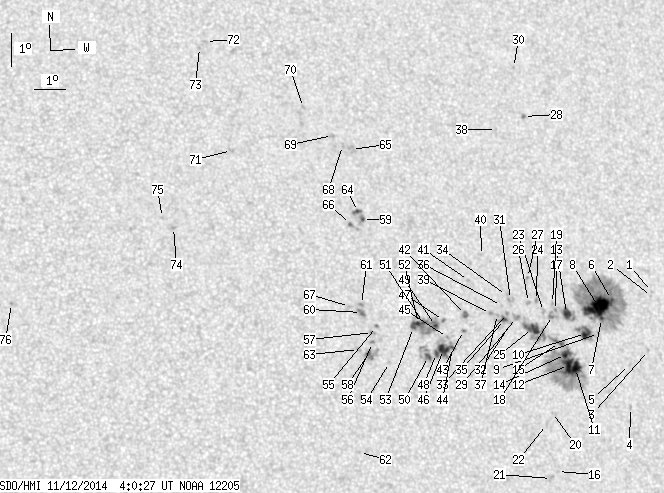

SDO HMI 2014-11-12 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 97.24 | 552.97 | 54.36 | 308.90 | 14.27 | 13.88 | 25.31 | 295.73 | 0.4619 | -487.2 | -280.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-12 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.50 | 15.03 | 18.15 | 29.58 | 293.98 | 0.5239 | -589.0 | -498.7 | |
| 0.00 | 0.34 | 0.00 | 0.20 | 14.88 | 18.13 | 29.56 | 293.72 | 0.5228 | -563.0 | -458.0 | |
| 0.00 | 1.29 | 0.00 | 0.74 | 13.26 | 17.79 | 29.22 | 290.91 | 0.5107 | -693.0 | -533.2 | |
| 0.00 | 1.29 | 0.00 | 0.73 | 11.56 | 16.96 | 28.39 | 288.07 | 0.4919 | -665.0 | -604.9 | |
| 0.00 | 1.29 | 0.00 | 0.74 | 12.85 | 17.08 | 28.50 | 290.54 | 0.4989 | -475.0 | -455.9 | |
| 0.86 | 179.34 | 0.49 | 102.31 | 14.83 | 16.72 | 28.14 | 294.52 | 0.5032 | -771.4 | -314.5 | |
| 0.26 | -6.00 | 0.15 | -6.00 | 14.26 | 16.29 | 27.72 | 293.73 | 0.4944 | -953.3 | 999999 | |
| 25.84 | -6.00 | 14.72 | -6.00 | 14.63 | 16.24 | 27.66 | 294.46 | 0.4956 | -1231.8 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.44 | 13.81 | 16.13 | 27.55 | 292.97 | 0.4899 | -516.0 | -469.8 | |
| 6.72 | 16.62 | 3.80 | 9.40 | 13.83 | 15.68 | 27.11 | 293.28 | 0.4837 | -1037.2 | -647.0 | |
| 8.27 | 151.52 | 4.64 | 84.72 | 12.78 | 15.21 | 26.64 | 291.50 | 0.4719 | -999.5 | -562.6 | |
| 9.73 | -11.00 | 5.45 | -11.00 | 12.88 | 14.98 | 26.41 | 291.84 | 0.4691 | -1271.1 | 999999 | |
| 5.86 | 13.27 | 3.30 | 7.48 | 14.45 | 15.11 | 26.54 | 294.89 | 0.4789 | -1040.9 | -765.1 | |
| 4.31 | -11.00 | 2.41 | -11.00 | 13.21 | 14.92 | 26.35 | 292.56 | 0.4698 | -1141.5 | 999999 | |
| 2.41 | -11.00 | 1.35 | -11.00 | 13.58 | 14.76 | 26.19 | 293.41 | 0.4694 | -1074.7 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 9.71 | 14.30 | 25.73 | 285.53 | 0.4459 | -763.0 | -617.9 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 14.55 | 14.74 | 26.17 | 295.35 | 0.4744 | -923.0 | -828.8 | |
| 0.00 | 5.17 | 0.00 | 2.90 | 14.40 | 14.62 | 26.05 | 295.15 | 0.4719 | -979.0 | -875.5 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 14.76 | 14.67 | 26.10 | 295.83 | 0.4746 | -808.0 | -703.1 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 11.48 | 14.29 | 25.72 | 289.36 | 0.4527 | -858.0 | -630.9 | |
| 0.00 | 3.01 | 0.00 | 1.66 | 9.51 | 14.08 | 25.51 | 285.18 | 0.4420 | -813.0 | -683.7 | |
| 0.00 | 1.46 | 0.00 | 0.81 | 11.13 | 14.06 | 25.48 | 288.74 | 0.4477 | -701.0 | -614.1 | |
| 0.00 | 2.58 | 0.00 | 1.45 | 14.53 | 14.33 | 25.76 | 295.62 | 0.4685 | -689.0 | -582.6 | |
| 0.00 | 1.81 | 0.00 | 1.01 | 14.86 | 14.14 | 25.57 | 296.45 | 0.4678 | -840.0 | -691.9 | |
| 9.04 | -11.00 | 5.04 | -11.00 | 14.02 | 13.90 | 25.32 | 294.94 | 0.4596 | -1171.1 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.11 | 14.81 | 13.86 | 25.29 | 296.56 | 0.4636 | -874.0 | -770.1 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 15.57 | 13.92 | 25.35 | 298.01 | 0.4691 | -807.0 | -750.2 | |
| 0.00 | 1.72 | 0.00 | 0.99 | 20.51 | 14.57 | 26.00 | 306.42 | 0.5122 | -901.0 | -792.0 | |
| 0.00 | 4.57 | 0.00 | 2.54 | 14.37 | 13.40 | 24.82 | 296.04 | 0.4545 | -1012.0 | -831.5 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 22.05 | 14.51 | 25.94 | 309.00 | 0.5237 | -669.0 | -595.6 | |
| 0.00 | 2.67 | 0.00 | 1.48 | 14.92 | 13.26 | 24.69 | 297.27 | 0.4560 | -869.0 | -805.1 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 14.19 | 13.17 | 24.60 | 295.85 | 0.4504 | -874.0 | -723.2 | |
| 0.00 | 1.72 | 0.00 | 0.96 | 14.49 | 13.11 | 24.54 | 296.53 | 0.4513 | -980.0 | -816.5 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 15.04 | 13.14 | 24.57 | 297.62 | 0.4551 | -616.0 | -484.2 | |
| 1.64 | 5.51 | 0.91 | 3.05 | 14.32 | 12.99 | 24.41 | 296.27 | 0.4485 | -1091.3 | -683.0 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 14.74 | 12.94 | 24.36 | 297.19 | 0.4504 | -759.0 | -646.8 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 14.47 | 12.77 | 24.20 | 296.77 | 0.4464 | -859.0 | -736.0 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 20.13 | 13.55 | 24.98 | 306.75 | 0.4969 | -640.0 | -522.2 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 14.51 | 12.54 | 23.97 | 297.05 | 0.4434 | -962.0 | -813.5 | |
| 0.00 | 0.34 | 0.00 | 0.19 | 16.27 | 12.45 | 23.88 | 300.71 | 0.4539 | -727.0 | -503.2 | |
| 0.00 | 1.38 | 0.00 | 0.76 | 15.52 | 11.92 | 23.35 | 299.71 | 0.4415 | -823.0 | -719.0 | |
| 0.00 | 3.62 | 0.00 | 1.98 | 14.50 | 11.70 | 23.13 | 297.77 | 0.4316 | -1029.0 | -868.1 | |
| 0.34 | 1.72 | 0.19 | 0.94 | 14.02 | 11.58 | 23.01 | 296.85 | 0.4269 | -887.5 | -670.3 | |
| 1.03 | 22.57 | 0.56 | 12.26 | 13.51 | 11.16 | 22.59 | 296.12 | 0.4178 | 605.8 | 397.9 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 13.82 | 11.03 | 22.46 | 296.92 | 0.4178 | 454.0 | 419.9 | |
| 7.49 | -44.00 | 4.07 | -44.00 | 13.46 | 10.86 | 22.29 | 296.28 | 0.4131 | 901.4 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 14.33 | 10.95 | 22.38 | 298.12 | 0.4200 | 797.0 | 626.9 | |
| 2.07 | -44.00 | 1.12 | -44.00 | 13.34 | 10.62 | 22.05 | 296.25 | 0.4089 | 1037.3 | 999999 | |
| 1.38 | 36.69 | 0.75 | 19.91 | 14.19 | 10.67 | 22.10 | 298.08 | 0.4151 | -848.7 | 57.1 | |
| 2.07 | 12.32 | 1.12 | 6.66 | 13.26 | 10.35 | 21.77 | 296.31 | 0.4045 | 1013.8 | 635.9 | |
| 1.72 | -49.00 | 0.93 | -49.00 | 14.29 | 10.28 | 21.71 | 298.68 | 0.4104 | 813.3 | 999999 | |
| 1.29 | -49.00 | 0.70 | -49.00 | 14.26 | 10.12 | 21.54 | 298.79 | 0.4079 | 987.3 | 999999 | |
| 1.12 | -49.00 | 0.61 | -49.00 | 14.14 | 9.94 | 21.37 | 298.71 | 0.4046 | 888.7 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.92 | 13.10 | 9.06 | 20.48 | 297.23 | 0.3850 | -642.0 | -396.4 | |
| 0.00 | 1.46 | 0.00 | 0.79 | 14.20 | 8.73 | 20.16 | 300.15 | 0.3881 | 860.0 | 781.5 | |
| 0.00 | 1.64 | 0.00 | 0.88 | 13.72 | 8.56 | 19.99 | 299.23 | 0.3822 | 861.0 | 762.8 | |
| 0.00 | 2.58 | 0.00 | 1.39 | 14.02 | 8.59 | 20.01 | 299.90 | 0.3847 | 931.0 | 838.4 | |
| 1.29 | 9.82 | 0.69 | 5.25 | 13.39 | 8.40 | 19.83 | 298.63 | 0.3776 | 1000.5 | 523.0 | |
| 0.86 | 8.36 | 0.47 | 4.54 | 17.46 | 8.62 | 20.04 | 307.35 | 0.4131 | 712.9 | -188.2 | |
| 0.00 | 4.22 | 0.00 | 2.26 | 14.63 | 8.28 | 19.71 | 301.67 | 0.3851 | 1130.0 | 939.2 | |
| 0.00 | 2.15 | 0.00 | 1.16 | 14.87 | 8.31 | 19.74 | 302.19 | 0.3874 | 926.0 | 756.9 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 10.42 | 7.88 | 19.31 | 291.61 | 0.3514 | -776.0 | -638.5 | |
| 0.00 | 2.41 | 0.00 | 1.29 | 13.51 | 8.09 | 19.51 | 299.29 | 0.3740 | 801.0 | 688.3 | |
| 0.95 | -59.00 | 0.52 | -59.00 | 17.71 | 8.48 | 19.91 | 308.03 | 0.4136 | -863.4 | 999999 | |
| 0.00 | 5.43 | 0.00 | 2.98 | 19.62 | 8.52 | 19.95 | 311.65 | 0.4319 | 425.0 | 598.9 | |
| 0.69 | 3.45 | 0.37 | 1.87 | 17.31 | 8.20 | 19.63 | 307.59 | 0.4065 | -801.9 | -184.2 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 14.82 | 7.91 | 19.34 | 302.56 | 0.3815 | 927.0 | 682.1 | |
| 0.00 | 1.98 | 0.00 | 1.09 | 19.75 | 8.23 | 19.66 | 312.27 | 0.4298 | 648.0 | 618.1 | |
| 0.00 | 2.41 | 0.00 | 1.32 | 20.06 | 7.94 | 19.37 | 313.25 | 0.4295 | 744.0 | 629.8 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 20.95 | 7.08 | 18.51 | 316.05 | 0.4290 | 668.0 | 501.6 | |
| 0.00 | 2.24 | 0.00 | 1.20 | 19.66 | 4.54 | 15.97 | 317.75 | 0.3871 | 761.0 | 604.6 | |
| 0.00 | 1.64 | 0.00 | 0.89 | 23.07 | 4.07 | 15.49 | 324.29 | 0.4228 | 648.0 | 562.7 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 22.89 | 3.84 | 15.27 | 324.38 | 0.4185 | 852.0 | 653.9 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 17.32 | 2.45 | 13.88 | 316.98 | 0.3372 | 960.0 | 808.0 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 17.63 | 2.12 | 13.55 | 318.30 | 0.3372 | 810.0 | 602.2 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 15.06 | 357.21 | 8.64 | 324.87 | 0.2533 | 864.0 | 767.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
