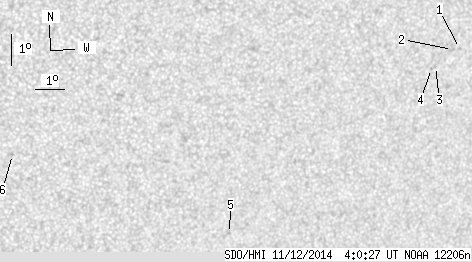

SDO HMI 2014-11-12 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.07 | 0.00 | 4.35 | -14.75 | 20.17 | 31.60 | 238.77 | 0.5936 | 195.0 | 303.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-12 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.76 | -13.56 | 23.09 | 34.52 | 243.16 | 0.6197 | 629.0 | 497.6 | |
| 0.00 | 2.33 | 0.00 | 1.46 | -13.58 | 22.84 | 34.27 | 242.97 | 0.6167 | 590.0 | 601.2 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -14.09 | 22.29 | 33.72 | 241.86 | 0.6129 | 681.0 | 568.5 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -14.14 | 22.16 | 33.58 | 241.68 | 0.6116 | 684.0 | 620.7 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -19.15 | 15.75 | 27.18 | 229.05 | 0.5735 | -709.0 | -630.5 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -16.45 | 8.00 | 19.43 | 223.75 | 0.4633 | -705.0 | -432.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
