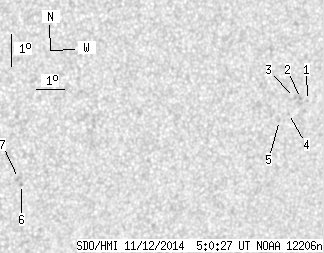

SDO HMI 2014-11-12 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.18 | 0.00 | 4.97 | -14.59 | 18.44 | 30.42 | 238.18 | 0.5769 | 268.1 | 80.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-12 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.55 | -13.52 | 23.10 | 35.08 | 243.57 | 0.6263 | 567.0 | 507.4 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -13.45 | 22.83 | 34.80 | 243.51 | 0.6225 | 841.0 | 707.7 | |
| 0.00 | 0.69 | 0.00 | 0.43 | -13.41 | 22.60 | 34.57 | 243.42 | 0.6195 | 568.0 | 558.9 | |
| 0.00 | 0.78 | 0.00 | 0.49 | -13.90 | 22.46 | 34.43 | 242.61 | 0.6205 | 580.0 | 539.8 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -14.11 | 22.16 | 34.13 | 242.11 | 0.6180 | 690.0 | 651.8 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -15.84 | 13.27 | 25.25 | 231.97 | 0.5230 | -671.0 | -549.7 | |
| 0.00 | 2.58 | 0.00 | 1.50 | -15.65 | 13.14 | 25.12 | 232.13 | 0.5199 | -698.0 | -591.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
