Sunspot Group 12205

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

12205	109.72	546.31	62.17	309.56	14.28	13.89	26.96	294.62	0.4853	-380.1	-270.0

previous or next observation for the same group / back to the solar disc

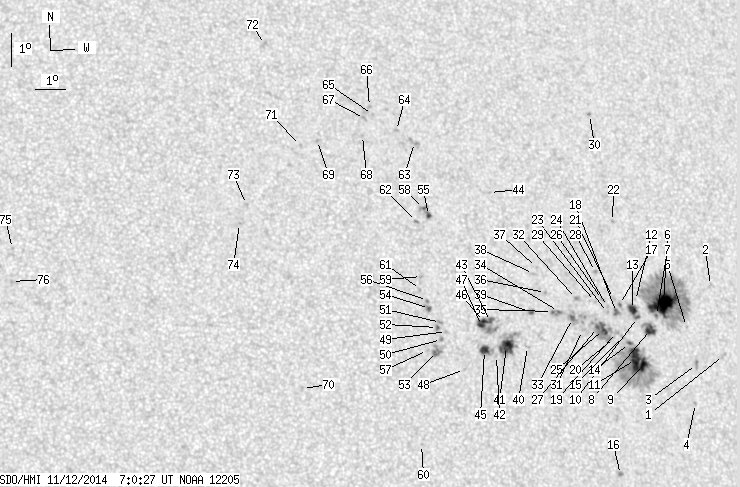

SDO HMI 2014-11-12 07:00:27 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	2.50	0.00	1.47	13.00	18.17	31.23	289.45	0.5379	-682.0	-578.6
2	0.00	1.72	0.00	1.02	15.12	18.03	31.09	293.30	0.5449	-645.0	-565.5
3	0.00	3.01	0.00	1.75	12.76	17.17	30.24	289.48	0.5231	-877.0	-713.9
4	0.00	1.21	0.00	0.70	11.59	16.99	30.06	287.38	0.5162	-666.0	-605.6
5	0.00	1.03	0.00	0.60	13.91	16.98	30.05	291.70	0.5252	-381.0	-351.7
6	31.53	177.01	18.24	102.58	14.63	16.27	29.34	293.42	0.5188	-1167.6	-260.1
7	0.43	-6.00	0.25	-6.00	14.27	15.98	29.04	292.94	0.5130	-926.6	999999
8	6.89	13.01	3.95	7.46	13.85	15.71	28.77	292.32	0.5073	-1002.5	-744.9
9	7.84	121.97	4.47	69.34	12.81	15.33	28.39	290.54	0.4972	-986.2	-441.5
10	1.03	10.34	0.59	5.92	14.23	15.31	28.37	293.27	0.5035	-981.2	-812.2
11	16.62	-9.00	9.46	-9.00	12.96	15.07	28.14	291.00	0.4943	-1219.1	999999
12	0.00	0.78	0.00	0.44	14.74	15.31	28.38	294.24	0.5061	-358.0	-357.6
13	5.34	-10.00	3.06	-10.00	14.47	15.17	28.23	293.83	0.5028	-1032.7	999999
14	0.86	-9.00	0.49	-9.00	13.45	14.92	27.99	292.03	0.4944	-1038.6	999999
15	0.00	1.64	0.00	0.93	13.67	14.71	27.78	292.58	0.4924	-813.0	-739.4
16	0.00	2.50	0.00	1.40	9.53	14.19	27.26	284.50	0.4685	-1046.0	-833.0
17	0.34	1.90	0.20	1.08	14.64	14.74	27.80	294.42	0.4977	-870.8	-742.1
18	1.46	4.57	0.83	2.60	14.40	14.60	27.67	294.05	0.4945	-968.3	-759.6
19	0.00	1.98	0.00	1.12	13.79	14.52	27.59	292.94	0.4904	-965.0	-860.2
20	0.00	0.52	0.00	0.29	13.65	14.43	27.50	292.71	0.4884	-779.0	-679.8
21	0.00	2.24	0.00	1.28	14.82	14.56	27.62	294.89	0.4961	-624.0	-504.5
22	0.00	1.12	0.00	0.65	17.16	14.88	27.95	298.97	0.5139	-717.0	-637.7
23	0.00	1.21	0.00	0.68	14.41	14.29	27.36	294.28	0.4903	-803.0	-669.3
24	0.00	1.38	0.00	0.78	14.59	14.31	27.38	294.61	0.4916	-709.0	-632.9
25	4.65	26.44	2.63	14.95	13.90	14.08	27.15	293.43	0.4848	-1195.2	-745.5
26	0.00	1.46	0.00	0.83	14.80	14.17	27.24	295.12	0.4907	-940.0	-644.4
27	1.21	-25.00	0.68	-25.00	13.96	13.89	26.95	293.69	0.4823	-1130.3	999999
28	0.00	1.38	0.00	0.78	15.66	14.05	27.12	296.83	0.4939	-870.0	-673.6
29	0.00	1.12	0.00	0.63	14.75	13.92	26.99	295.19	0.4870	-843.0	-717.7
30	0.00	1.12	0.00	0.65	20.48	14.67	27.73	304.83	0.5332	-803.0	-759.5
31	0.00	0.69	0.00	0.39	13.88	13.36	26.43	293.89	0.4746	-812.0	-624.5
32	0.00	2.41	0.00	1.36	14.86	13.28	26.35	295.87	0.4788	-943.0	-726.2
33	1.21	24.55	0.68	13.77	14.25	13.07	26.14	294.84	0.4724	-1087.4	-789.6
34	0.34	-33.00	0.19	-33.00	14.48	12.62	25.69	295.62	0.4674	-955.2	999999
35	0.34	-33.00	0.19	-33.00	14.48	12.42	25.48	295.79	0.4646	-961.2	999999
36	0.00	1.03	0.00	0.58	15.06	12.25	25.32	297.08	0.4657	-829.0	-677.5
37	0.00	1.12	0.00	0.63	15.83	12.05	25.11	298.76	0.4677	-677.0	-523.4
38	0.00	1.21	0.00	0.67	15.65	11.92	24.99	298.51	0.4648	-826.0	-621.1
39	0.95	3.45	0.53	1.91	14.47	11.70	24.77	296.33	0.4545	-977.5	-739.0
40	0.00	1.90	0.00	1.05	13.45	11.45	24.52	294.41	0.4451	551.0	354.9
41	13.44	30.23	7.39	16.63	13.46	10.75	23.81	295.01	0.4351	915.7	189.5
42	0.00	0.78	0.00	0.42	13.20	10.39	23.45	294.73	0.4284	667.0	603.6
43	1.46	22.91	0.80	12.56	14.23	10.30	23.36	297.03	0.4334	748.9	-37.7
44	0.00	1.03	0.00	0.58	18.16	10.77	23.84	304.40	0.4674	704.0	553.5
45	4.91	10.25	2.68	5.60	13.36	10.00	23.07	295.41	0.4239	959.8	673.2
46	2.93	-43.00	1.61	-43.00	14.23	10.06	23.13	297.25	0.4301	983.9	999999
47	2.58	-43.00	1.42	-43.00	14.12	9.98	23.05	297.07	0.4283	852.2	999999
48	0.00	0.95	0.00	0.51	12.80	9.29	22.36	294.79	0.4103	-768.0	-624.5
49	0.00	1.38	0.00	0.75	13.96	8.81	21.88	297.84	0.4107	695.0	563.2
50	0.00	1.72	0.00	0.93	13.72	8.62	21.69	297.49	0.4064	815.0	669.1
51	0.00	1.90	0.00	1.03	14.24	8.64	21.71	298.62	0.4102	943.0	736.8
52	0.43	1.90	0.23	1.03	14.09	8.53	21.59	298.41	0.4075	1026.2	839.7
53	0.00	8.53	0.00	4.61	13.36	8.45	21.52	296.84	0.4017	780.0	717.8
54	1.03	3.96	0.56	2.15	14.67	8.32	21.39	299.90	0.4087	1050.5	870.1
55	1.38	7.92	0.76	4.35	17.50	8.62	21.68	305.47	0.4345	827.3	-274.0
56	0.00	1.38	0.00	0.75	14.91	8.28	21.35	300.48	0.4099	996.0	884.8
57	0.00	1.46	0.00	0.79	13.40	8.13	21.20	297.25	0.3973	796.0	585.9
58	0.52	-55.00	0.28	-55.00	17.71	8.48	21.54	306.06	0.4345	-808.2	999999
59	0.00	1.55	0.00	0.84	15.64	8.16	21.23	302.19	0.4138	769.0	628.7
60	0.00	0.86	0.00	0.46	10.58	7.70	20.77	290.81	0.3745	-713.0	-564.8
61	0.00	0.95	0.00	0.51	15.25	8.09	21.15	301.43	0.4098	867.0	663.3
62	0.00	1.55	0.00	0.85	17.32	8.19	21.26	305.62	0.4276	-818.0	-632.2
63	0.00	5.60	0.00	3.11	19.75	8.45	21.52	309.93	0.4520	657.0	620.9
64	0.00	1.98	0.00	1.10	20.14	7.89	20.96	311.31	0.4490	733.0	544.3
65	0.00	1.03	0.00	0.57	20.65	7.15	20.22	313.17	0.4454	692.0	583.7
66	0.00	1.29	0.00	0.71	20.90	7.09	20.15	313.70	0.4471	686.0	538.7
67	0.00	2.07	0.00	1.14	20.53	6.87	19.93	313.35	0.4409	694.0	662.2
68	0.00	1.46	0.00	0.80	20.00	6.73	19.79	312.59	0.4341	894.0	599.2
69	0.00	1.29	0.00	0.70	19.88	5.21	18.27	314.52	0.4154	790.0	593.9
70	0.00	1.38	0.00	0.72	12.33	4.01	17.08	299.37	0.3307	-725.0	-538.5
71	0.00	1.21	0.00	0.65	19.73	4.63	17.69	315.13	0.4073	689.0	558.4
72	0.00	3.79	0.00	2.08	22.90	3.82	16.88	321.78	0.4343	349.0	314.8
73	0.00	1.38	0.00	0.73	17.94	2.67	15.74	314.87	0.3657	592.0	456.0
74	0.00	0.86	0.00	0.46	17.36	2.39	15.46	314.15	0.3562	893.0	806.0
75	0.00	1.03	0.00	0.53	16.69	355.14	8.21	329.70	0.2724	713.0	533.0
76	0.00	1.21	0.00	0.62	15.68	355.07	8.14	327.88	0.2575	757.0	634.6

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
