SDO HMI 2014-11-12 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.69 | 0.00 | 3.57 | -14.09 | 20.75 | 33.82 | 241.63 | 0.6145 | 475.0 | 357.1 | |
|
previous
or next observation for the same group /

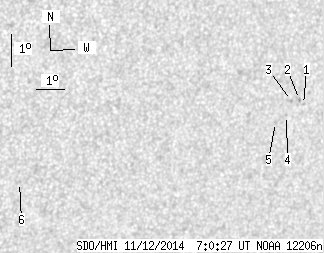

back to the solar disc SDO HMI 2014-11-12 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.33 | -13.57 | 23.11 | 36.17 | 244.17 | 0.6398 | 573.0 | 497.8 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -13.41 | 22.93 | 35.99 | 244.30 | 0.6368 | 735.0 | 647.5 | |
| 0.00 | 0.95 | 0.00 | 0.60 | -13.43 | 22.63 | 35.70 | 244.10 | 0.6332 | 753.0 | 659.6 | |
| 0.00 | 0.95 | 0.00 | 0.61 | -13.89 | 22.52 | 35.59 | 243.36 | 0.6344 | 651.0 | 472.6 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -14.09 | 22.14 | 35.21 | 242.83 | 0.6309 | 712.0 | 562.2 | |
| 0.00 | 1.21 | 0.00 | 0.71 | -15.69 | 13.22 | 26.29 | 233.29 | 0.5339 | -574.0 | -532.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
