SDO HMI 2014-11-12 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109.61 | 565.68 | 70.28 | 362.56 | -11.39 | 307.51 | -36.70 | 112.50 | 0.6351 | -59.8 | -177.0 | |
|
previous
or next observation for the same group /

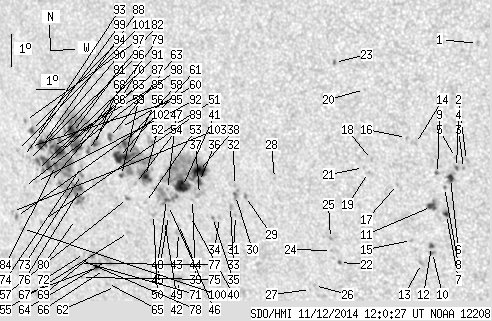

back to the solar disc SDO HMI 2014-11-12 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.07 | 0.00 | 1.14 | -7.11 | 319.92 | -24.28 | 113.01 | 0.4452 | 711.0 | 599.6 | |
| 0.00 | 3.01 | 0.00 | 1.70 | -10.67 | 319.30 | -24.91 | 119.48 | 0.4774 | 819.0 | 641.8 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -10.92 | 319.17 | -25.03 | 119.82 | 0.4808 | 649.0 | 630.2 | |
| 0.00 | 2.24 | 0.00 | 1.27 | -10.89 | 318.94 | -25.26 | 119.55 | 0.4837 | 880.0 | 671.0 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -10.59 | 318.94 | -25.27 | 118.98 | 0.4816 | 580.0 | 448.1 | |
| 2.67 | 6.54 | 1.51 | 3.71 | -11.23 | 318.71 | -25.49 | 119.95 | 0.4892 | 808.4 | 548.0 | |
| 1.64 | 2.84 | 0.93 | 1.62 | -12.35 | 318.46 | -25.74 | 121.69 | 0.5006 | -889.7 | -714.9 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -11.52 | 318.48 | -25.72 | 120.24 | 0.4943 | 490.0 | 331.9 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -11.09 | 318.29 | -25.92 | 119.30 | 0.4938 | 666.0 | 554.7 | |
| 0.00 | 1.89 | 0.00 | 1.09 | -13.53 | 317.85 | -26.35 | 123.12 | 0.5174 | 857.0 | 717.6 | |
| 3.53 | 6.20 | 2.02 | 3.55 | -12.11 | 317.98 | -26.22 | 120.82 | 0.5051 | -953.6 | -743.1 | |
| 1.03 | 2.41 | 0.60 | 1.39 | -13.35 | 317.84 | -26.36 | 122.80 | 0.5161 | 968.1 | 805.2 | |
| 0.00 | 1.55 | 0.00 | 0.90 | -13.88 | 317.43 | -26.77 | 123.30 | 0.5253 | 756.0 | 636.4 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -10.19 | 317.63 | -26.57 | 117.08 | 0.4965 | 776.0 | 680.2 | |
| 0.00 | 1.29 | 0.00 | 0.75 | -13.18 | 317.18 | -27.03 | 121.90 | 0.5232 | 774.0 | 543.6 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -10.02 | 317.34 | -26.86 | 116.52 | 0.4993 | 694.0 | 552.9 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -11.46 | 316.89 | -27.31 | 118.72 | 0.5148 | 828.0 | 643.6 | |
| 0.00 | 1.38 | 0.00 | 0.80 | -10.72 | 316.08 | -28.12 | 116.74 | 0.5207 | 682.0 | 512.3 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -11.12 | 315.94 | -28.27 | 117.33 | 0.5251 | 801.0 | 575.2 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -8.59 | 316.04 | -28.16 | 112.90 | 0.5086 | 652.0 | 494.9 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -10.97 | 315.78 | -28.42 | 116.94 | 0.5263 | 597.0 | 499.9 | |
| 0.52 | 1.64 | 0.31 | 0.98 | -13.93 | 314.58 | -29.63 | 120.86 | 0.5611 | 712.2 | 636.1 | |
| 0.00 | 1.38 | 0.00 | 0.80 | -7.80 | 315.08 | -29.12 | 110.79 | 0.5179 | 740.0 | 653.6 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -13.56 | 314.35 | -29.86 | 120.10 | 0.5615 | 695.0 | 596.9 | |
| 0.00 | 1.55 | 0.00 | 0.92 | -13.19 | 314.36 | -29.84 | 119.52 | 0.5589 | 771.0 | 652.9 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -14.67 | 313.58 | -30.62 | 121.22 | 0.5784 | 786.0 | 660.7 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -14.80 | 313.42 | -30.79 | 121.29 | 0.5813 | 478.0 | 538.3 | |
| 0.00 | 0.60 | 0.00 | 0.36 | -11.39 | 312.62 | -31.58 | 115.34 | 0.5703 | 701.0 | 623.0 | |
| 0.00 | 2.15 | 0.00 | 1.32 | -11.98 | 311.50 | -32.70 | 115.54 | 0.5880 | 830.0 | 711.4 | |
| 0.00 | 4.13 | 0.00 | 2.54 | -11.96 | 311.14 | -33.06 | 115.27 | 0.5924 | 819.0 | 674.6 | |
| 0.00 | 1.21 | 0.00 | 0.74 | -12.58 | 311.05 | -33.15 | 116.18 | 0.5970 | 663.0 | 569.3 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -11.65 | 311.15 | -33.05 | 114.80 | 0.5907 | 737.0 | 584.4 | |
| 0.00 | 2.07 | 0.00 | 1.27 | -12.30 | 310.91 | -33.29 | 115.66 | 0.5972 | 695.0 | 516.3 | |
| 0.00 | 1.38 | 0.00 | 0.86 | -12.65 | 310.46 | -33.75 | 115.92 | 0.6049 | 416.0 | 428.9 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -12.66 | 310.20 | -34.00 | 115.77 | 0.6082 | 687.0 | 612.4 | |
| 1.81 | 99.96 | 1.12 | 62.45 | -11.57 | 309.88 | -34.32 | 113.90 | 0.6064 | 873.1 | 217.2 | |
| 0.00 | 5.34 | 0.00 | 3.33 | -11.97 | 309.83 | -34.38 | 114.48 | 0.6092 | 879.0 | 629.5 | |
| 10.85 | -36.00 | 6.73 | -36.00 | -11.26 | 309.89 | -34.31 | 113.43 | 0.6048 | 979.1 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.86 | -12.13 | 309.54 | -34.66 | 114.56 | 0.6136 | 499.0 | 428.3 | |
| 0.00 | 1.38 | 0.00 | 0.87 | -12.66 | 309.39 | -34.82 | 115.26 | 0.6183 | 477.0 | 381.9 | |
| 11.97 | -36.00 | 7.51 | -36.00 | -11.74 | 309.23 | -34.97 | 113.78 | 0.6156 | 791.2 | 999999 | |
| 0.00 | 3.70 | 0.00 | 2.38 | -14.66 | 308.59 | -35.62 | 117.72 | 0.6387 | 770.0 | 578.4 | |
| 0.00 | 3.19 | 0.00 | 2.02 | -13.17 | 308.86 | -35.35 | 115.70 | 0.6275 | 363.0 | 400.2 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -12.92 | 308.90 | -35.31 | 115.36 | 0.6257 | 487.0 | 418.9 | |
| 0.00 | 1.29 | 0.00 | 0.82 | -12.65 | 308.57 | -35.64 | 114.77 | 0.6284 | 553.0 | 397.9 | |
| 0.00 | 0.69 | 0.00 | 0.44 | -12.34 | 308.62 | -35.59 | 114.34 | 0.6262 | 385.0 | 326.8 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -11.85 | 308.66 | -35.55 | 113.62 | 0.6233 | 483.0 | 391.9 | |
| 1.12 | 20.66 | 0.71 | 13.09 | -12.16 | 308.57 | -35.63 | 114.04 | 0.6259 | 639.4 | 168.2 | |
| 0.00 | 1.03 | 0.00 | 0.66 | -12.81 | 308.39 | -35.81 | 114.91 | 0.6314 | 366.0 | 264.6 | |
| 0.00 | 1.81 | 0.00 | 1.16 | -12.64 | 308.00 | -36.20 | 114.43 | 0.6353 | 529.0 | 340.7 | |
| 0.00 | 3.96 | 0.00 | 2.50 | -10.37 | 308.20 | -36.01 | 111.13 | 0.6222 | 309.0 | 283.0 | |
| 6.89 | 92.90 | 4.39 | 59.35 | -11.48 | 307.89 | -36.32 | 112.64 | 0.6312 | 523.1 | -447.1 | |
| 0.00 | 0.95 | 0.00 | 0.61 | -12.28 | 307.76 | -36.44 | 113.77 | 0.6365 | 533.0 | 437.2 | |
| 0.00 | 1.29 | 0.00 | 0.83 | -11.70 | 307.47 | -36.73 | 112.77 | 0.6374 | 177.0 | 85.2 | |
| 0.00 | 1.98 | 0.00 | 1.29 | -13.23 | 306.95 | -37.25 | 114.71 | 0.6510 | -714.0 | -573.9 | |
| 6.03 | -52.00 | 3.86 | -52.00 | -10.88 | 307.30 | -36.91 | 111.45 | 0.6359 | -1034.8 | 999999 | |
| 0.43 | 1.89 | 0.28 | 1.22 | -12.18 | 307.09 | -37.11 | 113.26 | 0.6443 | 628.2 | 482.0 | |
| 2.41 | -52.00 | 1.54 | -52.00 | -10.49 | 307.24 | -36.96 | 110.84 | 0.6349 | -996.1 | 999999 | |
| 0.86 | -52.00 | 0.56 | -52.00 | -11.48 | 306.98 | -37.22 | 112.17 | 0.6425 | -629.2 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.72 | -10.00 | 307.16 | -37.05 | 110.07 | 0.6340 | -821.0 | -728.8 | |
| 6.54 | -52.00 | 4.21 | -52.00 | -10.93 | 306.95 | -37.26 | 111.34 | 0.6405 | -894.8 | 999999 | |
| 0.00 | 1.55 | 0.00 | 1.03 | -14.93 | 306.11 | -38.09 | 116.65 | 0.6693 | -694.0 | -505.7 | |
| 1.81 | 3.19 | 1.16 | 2.05 | -10.32 | 306.69 | -37.51 | 110.33 | 0.6411 | -837.0 | -730.1 | |
| 0.00 | 7.15 | 0.00 | 4.74 | -14.13 | 305.96 | -38.24 | 115.45 | 0.6671 | -848.0 | -722.2 | |
| 0.00 | 1.38 | 0.00 | 0.92 | -14.85 | 305.81 | -38.39 | 116.37 | 0.6723 | -614.0 | -568.6 | |
| 0.00 | 1.29 | 0.00 | 0.86 | -14.42 | 305.79 | -38.41 | 115.75 | 0.6705 | -745.0 | -616.3 | |
| 1.98 | 5.17 | 1.32 | 3.45 | -14.36 | 305.48 | -38.72 | 115.52 | 0.6738 | -864.7 | -774.0 | |
| 1.03 | 5.51 | 0.67 | 3.58 | -10.56 | 306.08 | -38.12 | 110.39 | 0.6497 | -1018.6 | -826.3 | |
| 0.52 | 2.76 | 0.35 | 1.84 | -14.00 | 305.36 | -38.84 | 114.95 | 0.6735 | -858.2 | -686.0 | |
| 0.86 | 3.01 | 0.56 | 1.97 | -10.75 | 305.82 | -38.38 | 110.55 | 0.6537 | -843.8 | -751.8 | |
| 0.00 | 2.24 | 0.00 | 1.50 | -14.25 | 305.15 | -39.05 | 115.19 | 0.6771 | -583.0 | -545.9 | |
| 0.00 | 1.46 | 0.00 | 0.98 | -13.94 | 305.10 | -39.11 | 114.74 | 0.6763 | -528.0 | -444.5 | |
| 0.00 | 2.67 | 0.00 | 1.76 | -11.50 | 305.43 | -38.77 | 111.45 | 0.6616 | 319.0 | 157.1 | |
| 0.00 | 1.12 | 0.00 | 0.74 | -11.25 | 305.47 | -38.73 | 111.11 | 0.6601 | -113.0 | -139.5 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -14.70 | 304.82 | -39.38 | 115.63 | 0.6831 | -643.0 | -527.8 | |
| 1.81 | 123.55 | 1.20 | 82.25 | -11.93 | 305.32 | -38.88 | 112.02 | 0.6648 | 485.1 | -449.8 | |
| 0.00 | 1.55 | 0.00 | 1.05 | -14.26 | 304.83 | -39.37 | 115.04 | 0.6809 | -488.0 | -422.8 | |
| 0.00 | 0.43 | 0.00 | 0.29 | -14.14 | 304.86 | -39.34 | 114.88 | 0.6800 | -528.0 | -437.8 | |
| 7.40 | 69.13 | 4.86 | 45.28 | -10.64 | 305.38 | -38.83 | 110.19 | 0.6589 | -939.0 | -497.0 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -12.90 | 304.95 | -39.25 | 113.20 | 0.6734 | -600.0 | -436.8 | |
| 8.01 | -79.00 | 5.25 | -79.00 | -10.22 | 305.28 | -38.92 | 109.53 | 0.6583 | -962.5 | 999999 | |
| 0.95 | -76.00 | 0.63 | -76.00 | -10.48 | 304.74 | -39.47 | 109.67 | 0.6661 | -736.1 | 999999 | |
| 8.52 | -76.00 | 5.66 | -76.00 | -10.82 | 304.64 | -39.56 | 110.12 | 0.6685 | -948.8 | 999999 | |
| 2.32 | -76.00 | 1.55 | -76.00 | -11.26 | 304.45 | -39.75 | 110.65 | 0.6725 | -858.6 | 999999 | |
| 1.38 | -76.00 | 0.92 | -76.00 | -10.68 | 304.43 | -39.77 | 109.82 | 0.6706 | -890.3 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.81 | -11.79 | 304.12 | -40.08 | 111.26 | 0.6786 | -534.0 | -407.9 | |
| 7.23 | -76.00 | 4.85 | -76.00 | -11.21 | 304.11 | -40.10 | 110.43 | 0.6766 | -820.6 | 999999 | |
| 3.96 | -76.00 | 2.65 | -76.00 | -10.60 | 304.05 | -40.15 | 109.54 | 0.6749 | -830.7 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.82 | -13.01 | 303.57 | -40.63 | 112.70 | 0.6901 | -476.0 | -468.9 | |
| 1.64 | -76.00 | 1.10 | -76.00 | -10.72 | 303.95 | -40.25 | 109.68 | 0.6766 | -769.5 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -11.41 | 303.71 | -40.49 | 110.54 | 0.6820 | -429.0 | -362.4 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -11.78 | 303.61 | -40.60 | 111.01 | 0.6847 | -523.0 | -436.0 | |
| 0.00 | 0.34 | 0.00 | 0.23 | -10.43 | 303.80 | -40.40 | 109.19 | 0.6773 | -397.0 | -308.0 | |
| 1.55 | 3.19 | 1.04 | 2.14 | -10.22 | 303.67 | -40.53 | 108.84 | 0.6781 | -732.6 | -608.5 | |
| 0.34 | 1.38 | 0.23 | 0.93 | -10.71 | 303.55 | -40.65 | 109.49 | 0.6813 | -612.5 | -495.8 | |
| 0.00 | 3.44 | 0.00 | 2.33 | -11.11 | 303.40 | -40.80 | 109.99 | 0.6846 | -284.0 | -360.5 | |
| 0.00 | 1.64 | 0.00 | 1.10 | -9.92 | 303.48 | -40.72 | 108.34 | 0.6794 | -467.0 | -473.8 | |
| 0.00 | 0.95 | 0.00 | 0.65 | -11.95 | 303.09 | -41.11 | 111.03 | 0.6915 | -470.0 | -417.1 | |
| 0.00 | 0.60 | 0.00 | 0.41 | -11.03 | 303.22 | -40.98 | 109.80 | 0.6865 | -419.0 | -406.1 | |
| 0.00 | 1.89 | 0.00 | 1.31 | -13.25 | 302.75 | -41.45 | 112.66 | 0.7006 | -680.0 | -484.5 | |
| 0.00 | 1.38 | 0.00 | 0.94 | -10.85 | 303.01 | -41.20 | 109.47 | 0.6884 | -475.0 | -320.7 | |
| 0.00 | 1.98 | 0.00 | 1.37 | -12.89 | 302.58 | -41.62 | 112.10 | 0.7011 | -808.0 | -635.2 | |
| 0.00 | 1.03 | 0.00 | 0.72 | -12.74 | 302.45 | -41.75 | 111.83 | 0.7021 | -582.0 | -513.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
