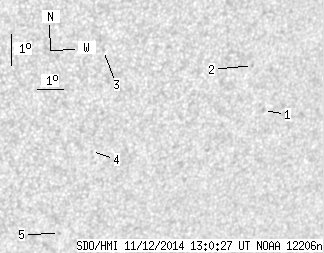

SDO HMI 2014-11-12 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.51 | 0.00 | 3.59 | -15.45 | 19.93 | 36.28 | 241.43 | 0.6514 | -106.8 | 1.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-12 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 1.11 | -15.29 | 23.32 | 39.66 | 243.71 | 0.6891 | 670.0 | 479.8 | |
| 0.00 | 1.12 | 0.00 | 0.75 | -13.87 | 22.58 | 38.92 | 245.28 | 0.6738 | 616.0 | 484.6 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -13.21 | 16.82 | 33.16 | 242.87 | 0.6007 | -565.0 | -484.9 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -16.35 | 16.92 | 33.27 | 238.29 | 0.6210 | -539.0 | -444.6 | |
| 0.00 | 1.12 | 0.00 | 0.71 | -18.93 | 16.26 | 32.61 | 234.19 | 0.6308 | -716.0 | -577.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
