SDO HMI 2014-11-12 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.02 | 547.76 | 75.24 | 348.74 | -11.35 | 307.43 | -36.22 | 112.71 | 0.6290 | -123.5 | -183.2 | |
|
previous
or next observation for the same group /

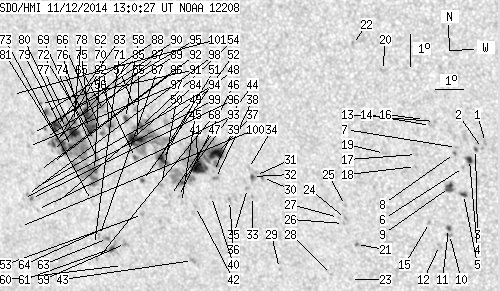

back to the solar disc SDO HMI 2014-11-12 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 1.01 | -10.68 | 319.35 | -24.30 | 120.09 | 0.4694 | 747.0 | 694.6 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -10.87 | 319.24 | -24.42 | 120.32 | 0.4723 | 696.0 | 640.0 | |
| 0.52 | 1.81 | 0.29 | 1.02 | -10.91 | 319.00 | -24.65 | 120.16 | 0.4757 | 735.5 | 684.7 | |
| 2.50 | 5.77 | 1.41 | 3.25 | -11.22 | 318.77 | -24.88 | 120.50 | 0.4810 | 807.1 | 402.7 | |
| 1.38 | 2.58 | 0.78 | 1.47 | -12.30 | 318.46 | -25.19 | 122.14 | 0.4932 | -955.8 | -787.0 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -11.47 | 318.55 | -25.11 | 120.74 | 0.4858 | 407.0 | 351.3 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -10.86 | 318.37 | -25.28 | 119.46 | 0.4837 | 721.0 | 645.1 | |
| 0.00 | 1.55 | 0.00 | 0.88 | -11.04 | 318.29 | -25.37 | 119.72 | 0.4862 | 723.0 | 598.7 | |
| 3.62 | 6.28 | 2.06 | 3.58 | -12.09 | 318.01 | -25.64 | 121.34 | 0.4974 | -961.2 | -757.4 | |
| 0.00 | 1.98 | 0.00 | 1.14 | -13.55 | 317.85 | -25.80 | 123.68 | 0.5106 | 557.0 | 658.9 | |
| 0.95 | 2.24 | 0.54 | 1.29 | -13.36 | 317.84 | -25.82 | 123.36 | 0.5093 | 958.2 | 787.3 | |
| 0.00 | 2.15 | 0.00 | 1.24 | -13.90 | 317.47 | -26.19 | 123.89 | 0.5181 | 660.0 | 512.8 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -10.08 | 317.70 | -25.95 | 117.41 | 0.4873 | 773.0 | 608.0 | |
| 0.00 | 1.81 | 0.00 | 1.03 | -10.21 | 317.56 | -26.10 | 117.52 | 0.4902 | 636.0 | 601.0 | |
| 0.00 | 1.46 | 0.00 | 0.85 | -13.19 | 317.21 | -26.44 | 122.46 | 0.5159 | 632.0 | 502.2 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -10.03 | 317.37 | -26.28 | 117.03 | 0.4915 | 679.0 | 544.5 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -11.11 | 317.00 | -26.65 | 118.66 | 0.5037 | 701.0 | 533.9 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -11.48 | 316.93 | -26.73 | 119.25 | 0.5072 | 774.0 | 582.9 | |
| 0.00 | 1.55 | 0.00 | 0.90 | -11.10 | 315.91 | -27.74 | 117.72 | 0.5181 | 703.0 | 549.1 | |
| 0.00 | 2.75 | 0.00 | 1.57 | -8.57 | 316.08 | -27.58 | 113.29 | 0.5004 | 446.0 | 326.5 | |
| 0.00 | 1.38 | 0.00 | 0.82 | -13.94 | 314.60 | -29.06 | 121.35 | 0.5542 | 778.0 | 698.4 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -7.81 | 315.12 | -28.54 | 111.20 | 0.5097 | 646.0 | 529.5 | |
| 0.00 | 0.60 | 0.00 | 0.36 | -15.04 | 314.22 | -29.43 | 122.76 | 0.5665 | 614.0 | 452.3 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -13.14 | 314.32 | -29.33 | 119.84 | 0.5522 | 851.0 | 701.3 | |
| 0.00 | 1.46 | 0.00 | 0.87 | -12.74 | 314.37 | -29.28 | 119.23 | 0.5488 | 697.0 | 515.1 | |
| 0.00 | 1.38 | 0.00 | 0.82 | -13.30 | 314.23 | -29.43 | 120.02 | 0.5544 | 636.0 | 548.2 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -13.12 | 314.08 | -29.58 | 119.61 | 0.5551 | 649.0 | 565.6 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -14.90 | 313.57 | -30.08 | 122.00 | 0.5734 | 566.0 | 467.1 | |
| 0.00 | 0.43 | 0.00 | 0.26 | -14.76 | 311.73 | -31.93 | 120.36 | 0.5949 | 586.0 | 506.6 | |
| 0.00 | 1.89 | 0.00 | 1.15 | -11.96 | 311.54 | -32.12 | 115.89 | 0.5803 | 883.0 | 748.5 | |
| 0.00 | 1.81 | 0.00 | 1.10 | -11.90 | 311.29 | -32.36 | 115.64 | 0.5832 | 652.0 | 542.6 | |
| 0.86 | 2.84 | 0.52 | 1.73 | -11.94 | 311.18 | -32.47 | 115.62 | 0.5848 | 742.0 | 606.7 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -12.55 | 311.10 | -32.56 | 116.53 | 0.5894 | 545.0 | 538.9 | |
| 0.00 | 1.29 | 0.00 | 0.79 | -11.69 | 311.07 | -32.58 | 115.17 | 0.5849 | 546.0 | 447.4 | |
| 0.00 | 1.64 | 0.00 | 1.00 | -12.31 | 310.95 | -32.71 | 116.06 | 0.5899 | 724.0 | 590.0 | |
| 0.00 | 1.81 | 0.00 | 1.12 | -12.70 | 310.24 | -33.42 | 116.20 | 0.6010 | 702.0 | 549.5 | |
| 10.93 | 92.88 | 6.74 | 57.60 | -11.27 | 309.97 | -33.69 | 113.81 | 0.5968 | 1000.1 | 254.2 | |
| 0.00 | 2.32 | 0.00 | 1.44 | -12.04 | 309.82 | -33.83 | 114.92 | 0.6026 | 784.0 | 709.8 | |
| 0.00 | 0.95 | 0.00 | 0.59 | -11.83 | 309.78 | -33.87 | 114.56 | 0.6021 | 805.0 | 664.6 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -12.60 | 309.59 | -34.06 | 115.63 | 0.6085 | 447.0 | 496.0 | |
| 15.24 | -37.00 | 9.48 | -37.00 | -11.69 | 309.25 | -34.40 | 114.03 | 0.6081 | 650.2 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.81 | -12.93 | 308.95 | -34.70 | 115.73 | 0.6183 | 506.0 | 379.3 | |
| 0.00 | 2.67 | 0.00 | 1.70 | -14.61 | 308.55 | -35.11 | 117.96 | 0.6324 | 712.0 | 603.1 | |
| 1.21 | 26.34 | 0.76 | 16.57 | -12.20 | 308.55 | -35.11 | 114.40 | 0.6196 | 614.1 | 115.5 | |
| 0.00 | 1.29 | 0.00 | 0.82 | -12.82 | 308.45 | -35.21 | 115.27 | 0.6239 | 358.0 | 290.2 | |
| 0.00 | 1.12 | 0.00 | 0.71 | -12.64 | 308.37 | -35.29 | 114.95 | 0.6240 | 357.0 | 267.9 | |
| 0.00 | 1.21 | 0.00 | 0.76 | -12.62 | 308.07 | -35.59 | 114.75 | 0.6276 | 370.0 | 314.0 | |
| 0.00 | 3.96 | 0.00 | 2.48 | -10.37 | 308.25 | -35.40 | 111.45 | 0.6146 | 403.0 | 305.4 | |
| 5.77 | 88.15 | 3.65 | 55.90 | -11.52 | 307.94 | -35.71 | 113.02 | 0.6238 | 568.1 | -414.1 | |
| 0.00 | 1.55 | 0.00 | 0.99 | -12.29 | 307.78 | -35.87 | 114.09 | 0.6295 | 533.0 | 411.2 | |
| 0.00 | 1.46 | 0.00 | 0.93 | -11.71 | 307.61 | -36.04 | 113.14 | 0.6288 | 161.0 | 87.6 | |
| 0.77 | 2.07 | 0.50 | 1.33 | -12.19 | 307.08 | -36.57 | 113.56 | 0.6377 | 577.1 | 418.0 | |
| 0.00 | 2.15 | 0.00 | 1.39 | -13.24 | 306.90 | -36.75 | 115.00 | 0.6450 | -840.0 | -605.6 | |
| 2.41 | -49.00 | 1.53 | -49.00 | -10.53 | 307.26 | -36.40 | 111.17 | 0.6279 | -1041.8 | 999999 | |
| 15.84 | -49.00 | 10.10 | -49.00 | -10.93 | 307.09 | -36.57 | 111.69 | 0.6318 | -939.9 | 999999 | |
| 0.86 | 3.10 | 0.55 | 1.98 | -11.49 | 306.93 | -36.72 | 112.44 | 0.6363 | -698.1 | -560.6 | |
| 0.00 | 1.81 | 0.00 | 1.15 | -10.01 | 307.14 | -36.51 | 110.34 | 0.6272 | -798.0 | -706.0 | |
| 1.46 | 3.01 | 0.93 | 1.92 | -10.30 | 306.73 | -36.93 | 110.57 | 0.6337 | -847.6 | -745.2 | |
| 0.00 | 2.93 | 0.00 | 1.92 | -14.17 | 306.08 | -37.58 | 115.86 | 0.6594 | -945.0 | -828.5 | |
| 0.00 | 0.34 | 0.00 | 0.23 | -14.86 | 305.82 | -37.83 | 116.69 | 0.6659 | -654.0 | -604.0 | |
| 2.15 | 6.11 | 1.43 | 4.05 | -14.34 | 305.50 | -38.16 | 115.79 | 0.6671 | -876.6 | -749.6 | |
| 0.77 | 6.03 | 0.50 | 3.88 | -10.57 | 306.08 | -37.58 | 110.65 | 0.6430 | -1001.6 | -761.0 | |
| 0.43 | 3.01 | 0.29 | 2.00 | -14.03 | 305.40 | -38.25 | 115.31 | 0.6667 | -869.6 | -710.6 | |
| 0.00 | 1.38 | 0.00 | 0.91 | -13.66 | 305.48 | -38.18 | 114.82 | 0.6641 | -683.0 | -542.1 | |
| 0.00 | 1.38 | 0.00 | 0.89 | -10.11 | 305.95 | -37.70 | 109.92 | 0.6427 | -452.0 | -418.4 | |
| 0.77 | 3.53 | 0.50 | 2.29 | -10.79 | 305.78 | -37.88 | 110.84 | 0.6477 | -831.8 | -717.3 | |
| 0.00 | 1.98 | 0.00 | 1.32 | -13.95 | 305.11 | -38.55 | 115.04 | 0.6698 | -565.0 | -461.2 | |
| 0.00 | 1.55 | 0.00 | 1.04 | -14.67 | 304.88 | -38.78 | 115.92 | 0.6759 | -573.0 | -502.3 | |
| 0.00 | 2.58 | 0.00 | 1.69 | -11.57 | 305.46 | -38.19 | 111.82 | 0.6548 | 373.0 | 175.2 | |
| 1.72 | 130.16 | 1.13 | 86.01 | -11.94 | 305.28 | -38.37 | 112.28 | 0.6586 | 527.8 | -466.1 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -14.24 | 304.85 | -38.80 | 115.30 | 0.6742 | -525.0 | -468.6 | |
| 0.00 | 1.29 | 0.00 | 0.84 | -11.02 | 305.44 | -38.22 | 111.01 | 0.6528 | -580.0 | -507.1 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -12.87 | 305.00 | -38.65 | 113.47 | 0.6661 | -667.0 | -518.5 | |
| 8.18 | 55.27 | 5.33 | 35.92 | -10.65 | 305.34 | -38.32 | 110.43 | 0.6526 | -926.6 | -502.8 | |
| 9.21 | -74.00 | 6.00 | -74.00 | -10.26 | 305.32 | -38.34 | 109.84 | 0.6512 | -991.6 | 999999 | |
| 0.00 | 3.36 | 0.00 | 2.20 | -10.09 | 304.96 | -38.70 | 109.43 | 0.6551 | -224.0 | -295.9 | |
| 7.06 | -70.00 | 4.65 | -70.00 | -10.80 | 304.66 | -39.00 | 110.33 | 0.6616 | -972.1 | 999999 | |
| 1.38 | -70.00 | 0.91 | -70.00 | -10.46 | 304.71 | -38.95 | 109.87 | 0.6596 | -727.5 | 999999 | |
| 3.01 | -70.00 | 1.99 | -70.00 | -11.23 | 304.51 | -39.15 | 110.89 | 0.6651 | -773.5 | 999999 | |
| 0.26 | -70.00 | 0.17 | -70.00 | -10.69 | 304.40 | -39.26 | 110.05 | 0.6643 | -920.7 | 999999 | |
| 6.20 | -70.00 | 4.12 | -70.00 | -11.21 | 304.16 | -39.50 | 110.70 | 0.6693 | -822.6 | 999999 | |
| 1.72 | -70.00 | 1.15 | -70.00 | -11.07 | 303.99 | -39.67 | 110.42 | 0.6708 | -765.5 | 999999 | |
| 6.28 | -70.00 | 4.18 | -70.00 | -10.64 | 304.01 | -39.64 | 109.82 | 0.6688 | -832.2 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -13.02 | 303.55 | -40.10 | 112.96 | 0.6839 | -657.0 | -568.5 | |
| 1.98 | -70.00 | 1.32 | -70.00 | -11.17 | 303.81 | -39.84 | 110.48 | 0.6733 | -630.6 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -11.75 | 303.67 | -39.98 | 111.25 | 0.6773 | -529.0 | -484.9 | |
| 0.00 | 0.95 | 0.00 | 0.63 | -11.38 | 303.73 | -39.92 | 110.75 | 0.6751 | -370.0 | -365.5 | |
| 1.55 | 5.08 | 1.03 | 3.38 | -10.22 | 303.69 | -39.97 | 109.08 | 0.6713 | -701.8 | -498.5 | |
| 0.00 | 1.98 | 0.00 | 1.33 | -10.99 | 303.52 | -40.13 | 110.11 | 0.6761 | -499.0 | -423.5 | |
| 0.34 | 1.29 | 0.23 | 0.86 | -10.72 | 303.53 | -40.13 | 109.72 | 0.6750 | -546.0 | -489.1 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -9.96 | 303.49 | -40.17 | 108.62 | 0.6727 | -604.0 | -449.3 | |
| 0.00 | 0.77 | 0.00 | 0.53 | -12.02 | 303.10 | -40.55 | 111.37 | 0.6852 | -569.0 | -458.9 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -13.23 | 302.79 | -40.87 | 112.89 | 0.6938 | -677.0 | -568.4 | |
| 0.00 | 1.98 | 0.00 | 1.35 | -12.52 | 302.93 | -40.73 | 111.98 | 0.6892 | -741.0 | -588.7 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -10.89 | 303.02 | -40.63 | 109.75 | 0.6818 | -593.0 | -351.5 | |
| 0.69 | 1.72 | 0.47 | 1.18 | -12.90 | 302.61 | -41.04 | 112.36 | 0.6945 | -734.0 | -652.6 | |
| 0.00 | 1.29 | 0.00 | 0.88 | -11.29 | 302.79 | -40.86 | 110.22 | 0.6861 | -591.0 | -459.7 | |
| 0.00 | 1.21 | 0.00 | 0.83 | -12.78 | 302.47 | -41.18 | 112.14 | 0.6956 | -591.0 | -493.0 | |
| 0.00 | 0.95 | 0.00 | 0.65 | -12.91 | 302.28 | -41.37 | 112.23 | 0.6983 | -382.0 | -359.1 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -13.78 | 301.97 | -41.68 | 113.27 | 0.7054 | -420.0 | -386.6 | |
| 0.00 | 1.21 | 0.00 | 0.82 | -9.72 | 302.41 | -41.25 | 107.86 | 0.6851 | -446.0 | -399.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
