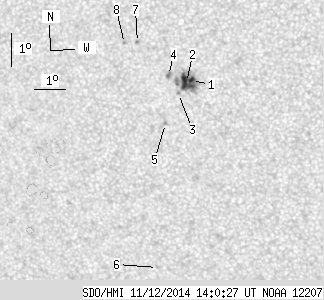

SDO HMI 2014-11-12 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.12 | 42.17 | 7.59 | 22.73 | -8.85 | 323.21 | -19.90 | 121.29 | 0.3956 | 886.4 | 647.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-12 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.62 | 32.62 | 1.94 | 17.54 | -8.67 | 323.56 | -19.55 | 121.38 | 0.3891 | 1328.0 | 685.0 | |
| 10.50 | -1.00 | 5.65 | -1.00 | -8.74 | 323.40 | -19.71 | 121.31 | 0.3919 | 1080.3 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -9.07 | 323.12 | -19.99 | 121.71 | 0.3984 | 699.0 | 638.1 | |
| 0.00 | 3.01 | 0.00 | 1.63 | -8.53 | 322.83 | -20.27 | 120.17 | 0.3981 | 850.0 | 776.8 | |
| 0.00 | 1.55 | 0.00 | 0.84 | -10.00 | 322.65 | -20.46 | 123.05 | 0.4125 | 876.0 | 674.1 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -14.44 | 322.01 | -21.09 | 130.59 | 0.4609 | -688.0 | -476.8 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -7.55 | 321.89 | -21.21 | 116.91 | 0.4040 | 780.0 | 746.1 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -7.59 | 321.47 | -21.63 | 116.55 | 0.4103 | 849.0 | 700.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
