SDO HMI 2014-11-12 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.79 | 0.00 | 6.03 | -9.43 | 337.67 | -4.88 | 159.65 | 0.2422 | -170.0 | -68.2 | |
|
previous
or next observation for the same group /

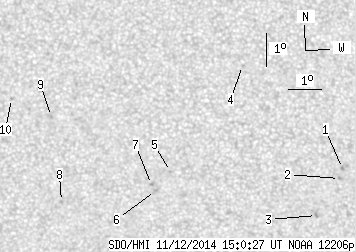

back to the solar disc SDO HMI 2014-11-12 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.74 | -9.55 | 342.23 | -0.33 | 178.52 | 0.2209 | 1000.0 | 825.8 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -9.85 | 342.13 | -0.42 | 178.15 | 0.2261 | 833.0 | 718.1 | |
| 0.00 | 1.89 | 0.00 | 0.97 | -10.98 | 341.44 | -1.12 | 175.51 | 0.2460 | 954.0 | 797.5 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -6.43 | 339.25 | -3.31 | 160.97 | 0.1768 | 594.0 | 467.1 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -9.65 | 337.04 | -5.51 | 156.82 | 0.2418 | -855.0 | -767.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -10.23 | 336.58 | -5.98 | 156.08 | 0.2539 | -883.0 | -767.3 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -10.05 | 336.46 | -6.10 | 155.36 | 0.2519 | -911.0 | -783.7 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -10.58 | 333.71 | -8.85 | 147.44 | 0.2821 | -821.0 | -660.8 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -8.00 | 333.48 | -9.08 | 140.95 | 0.2492 | -856.0 | -774.8 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -7.47 | 332.27 | -10.28 | 136.01 | 0.2560 | -755.0 | -552.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
