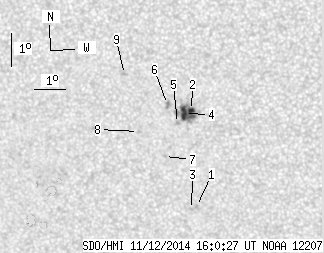

SDO HMI 2014-11-12 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.30 | 39.68 | 4.96 | 21.23 | -8.89 | 323.19 | -18.81 | 122.84 | 0.3810 | 938.9 | 750.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-12 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.60 | -11.58 | 323.55 | -18.46 | 129.04 | 0.4010 | 870.0 | 705.1 | |
| 2.93 | 27.97 | 1.56 | 14.94 | -8.66 | 323.57 | -18.44 | 122.84 | 0.3737 | 1310.7 | 809.2 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -11.68 | 323.38 | -18.62 | 128.98 | 0.4040 | 651.0 | 523.2 | |
| 6.37 | -2.00 | 3.40 | -2.00 | -8.75 | 323.34 | -18.66 | 122.74 | 0.3776 | 1075.3 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.11 | -9.06 | 323.10 | -18.90 | 123.10 | 0.3835 | 726.0 | 573.2 | |
| 0.00 | 3.10 | 0.00 | 1.66 | -8.49 | 322.82 | -19.19 | 121.44 | 0.3826 | 863.0 | 764.1 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -10.07 | 322.63 | -19.38 | 124.63 | 0.3987 | 875.0 | 654.1 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -9.33 | 321.84 | -20.16 | 122.02 | 0.4029 | 696.0 | 581.0 | |
| 0.00 | 2.07 | 0.00 | 1.11 | -7.61 | 321.49 | -20.51 | 117.80 | 0.3943 | 847.0 | 668.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
