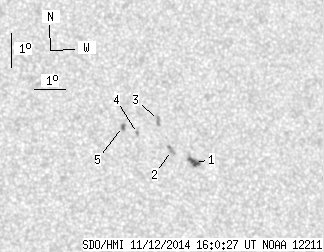

SDO HMI 2014-11-12 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.99 | 20.57 | 2.69 | 11.02 | 8.74 | 3.89 | 21.88 | 285.43 | 0.3839 | -16.0 | -104.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-12 16:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.30 | 8.61 | 2.32 | 4.63 | 8.24 | 4.61 | 22.61 | 283.73 | 0.3933 | -1030.3 | -696.1 | |
| 0.00 | 4.47 | 0.00 | 2.40 | 8.61 | 3.89 | 21.88 | 285.06 | 0.3833 | -798.0 | -652.3 | |
| 0.00 | 3.87 | 0.00 | 2.07 | 9.52 | 3.53 | 21.52 | 287.59 | 0.3812 | 778.0 | 511.4 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 9.14 | 2.82 | 20.82 | 287.10 | 0.3688 | 884.0 | 762.4 | |
| 0.69 | 2.24 | 0.37 | 1.19 | 9.36 | 2.36 | 20.35 | 288.02 | 0.3624 | 1035.9 | 828.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
