SDO HMI 2014-11-12 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.34 | 7.31 | 0.18 | 3.78 | 19.23 | 341.87 | 3.74 | 347.38 | 0.2885 | 524.7 | 339.5 | |
|
previous
or next observation for the same group /

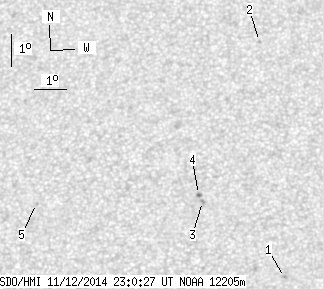

back to the solar disc SDO HMI 2014-11-12 23:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 0.97 | 16.83 | 344.25 | 6.12 | 336.74 | 0.2594 | -827.0 | -708.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 24.17 | 343.75 | 5.61 | 346.06 | 0.3720 | 784.0 | 575.7 | |
| 0.00 | 1.72 | 0.00 | 0.89 | 19.17 | 341.75 | 3.62 | 347.84 | 0.2842 | 934.0 | 818.2 | |
| 0.34 | 1.81 | 0.18 | 0.93 | 19.39 | 341.63 | 3.50 | 348.40 | 0.2874 | 859.2 | 703.1 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 19.12 | 336.54 | -1.60 | 5.46 | 0.2782 | 813.0 | 730.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
