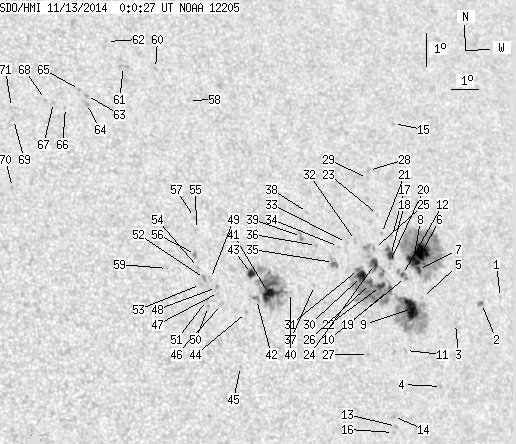

SDO HMI 2014-11-13 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.94 | 523.32 | 59.85 | 327.92 | 14.06 | 14.03 | 36.45 | 289.29 | 0.6124 | -295.1 | -272.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.75 | 13.15 | 19.32 | 41.73 | 286.14 | 0.6772 | -331.0 | -303.6 | |
| 0.86 | 2.93 | 0.57 | 1.94 | 12.99 | 18.51 | 40.93 | 286.12 | 0.6668 | -727.6 | -580.8 | |
| 0.00 | 1.21 | 0.00 | 0.78 | 12.43 | 17.36 | 39.78 | 285.57 | 0.6510 | -467.0 | -467.1 | |
| 0.00 | 0.77 | 0.00 | 0.50 | 10.56 | 16.50 | 38.91 | 282.91 | 0.6358 | -573.0 | -431.1 | |
| 0.00 | 1.12 | 0.00 | 0.72 | 13.26 | 16.22 | 38.63 | 287.16 | 0.6383 | -362.0 | -297.7 | |
| 17.39 | 138.92 | 11.24 | 89.91 | 14.61 | 16.45 | 38.87 | 289.16 | 0.6452 | -940.4 | -196.8 | |
| 2.93 | -6.00 | 1.88 | -6.00 | 14.10 | 16.23 | 38.64 | 288.46 | 0.6408 | -763.4 | 999999 | |
| 9.73 | -6.00 | 6.25 | -6.00 | 14.38 | 16.09 | 38.50 | 288.93 | 0.6399 | -997.7 | 999999 | |
| 19.02 | 88.31 | 12.11 | 56.20 | 12.94 | 15.73 | 38.15 | 286.82 | 0.6312 | -986.1 | -414.3 | |
| 0.34 | 5.85 | 0.22 | 3.73 | 13.88 | 15.68 | 38.09 | 288.29 | 0.6331 | -747.8 | -694.4 | |
| 0.00 | 1.64 | 0.00 | 1.03 | 11.69 | 15.28 | 37.70 | 284.97 | 0.6222 | -467.0 | -393.3 | |
| 1.03 | -10.00 | 0.66 | -10.00 | 13.97 | 15.58 | 37.99 | 288.47 | 0.6321 | -863.6 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 9.43 | 14.61 | 37.03 | 281.49 | 0.6085 | -779.0 | -659.6 | |
| 0.00 | 1.03 | 0.00 | 0.64 | 9.73 | 14.54 | 36.96 | 282.00 | 0.6081 | -592.0 | -571.2 | |
| 0.00 | 1.03 | 0.00 | 0.68 | 18.57 | 16.30 | 38.71 | 295.11 | 0.6570 | -533.0 | -410.8 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 9.26 | 14.48 | 36.89 | 281.23 | 0.6064 | -603.0 | -611.4 | |
| 0.00 | 0.77 | 0.00 | 0.50 | 15.16 | 15.43 | 37.85 | 290.36 | 0.6340 | -531.0 | -389.2 | |
| 3.70 | 8.35 | 2.35 | 5.31 | 14.56 | 15.23 | 37.64 | 289.51 | 0.6294 | -794.7 | -611.9 | |
| 2.07 | 90.89 | 1.31 | 56.90 | 13.54 | 14.99 | 37.41 | 287.99 | 0.6232 | -825.9 | -623.5 | |
| 0.00 | 1.38 | 0.00 | 0.87 | 14.35 | 15.15 | 37.56 | 289.21 | 0.6277 | -653.0 | -554.8 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 15.24 | 15.02 | 37.43 | 290.63 | 0.6290 | -444.0 | -422.8 | |
| 3.87 | -19.00 | 2.44 | -19.00 | 13.64 | 14.66 | 37.08 | 288.26 | 0.6193 | -1017.6 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.44 | 15.82 | 14.99 | 37.40 | 291.54 | 0.6306 | 497.0 | 353.4 | |
| 5.51 | 24.62 | 3.47 | 15.50 | 14.31 | 14.56 | 36.98 | 289.36 | 0.6200 | -883.2 | -730.9 | |
| 0.00 | 1.64 | 0.00 | 1.03 | 14.79 | 14.66 | 37.07 | 290.08 | 0.6228 | -598.0 | -476.7 | |
| 2.75 | -19.00 | 1.73 | -19.00 | 13.74 | 14.30 | 36.72 | 288.55 | 0.6148 | -1007.9 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.69 | 11.61 | 13.86 | 36.28 | 285.26 | 0.6031 | -792.0 | -637.7 | |
| 0.00 | 2.07 | 0.00 | 1.32 | 17.17 | 14.95 | 37.36 | 293.61 | 0.6351 | -686.0 | -556.3 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 16.93 | 14.85 | 37.27 | 293.29 | 0.6330 | -531.0 | -447.3 | |
| 7.40 | -19.00 | 4.62 | -19.00 | 13.97 | 14.00 | 36.41 | 289.02 | 0.6116 | -1087.2 | 999999 | |
| 1.38 | -19.00 | 0.86 | -19.00 | 14.18 | 13.92 | 36.34 | 289.39 | 0.6113 | -776.4 | 999999 | |
| 0.00 | 1.89 | 0.00 | 1.19 | 15.06 | 13.98 | 36.40 | 290.76 | 0.6150 | -734.0 | -656.3 | |
| 0.00 | 1.12 | 0.00 | 0.70 | 15.01 | 13.63 | 36.04 | 290.82 | 0.6103 | -640.0 | -559.8 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 14.90 | 13.30 | 35.72 | 290.78 | 0.6057 | -699.0 | -618.6 | |
| 0.00 | 6.97 | 0.00 | 4.31 | 14.42 | 13.02 | 35.44 | 290.13 | 0.6003 | -978.0 | -780.2 | |
| 0.00 | 0.86 | 0.00 | 0.53 | 14.95 | 12.48 | 34.90 | 291.22 | 0.5952 | -788.0 | -697.8 | |
| 0.00 | 1.12 | 0.00 | 0.68 | 13.75 | 12.19 | 34.61 | 289.36 | 0.5870 | 572.0 | 406.4 | |
| 0.00 | 0.52 | 0.00 | 0.32 | 15.96 | 12.34 | 34.76 | 292.92 | 0.5973 | -620.0 | -535.7 | |
| 0.00 | 2.58 | 0.00 | 1.58 | 15.24 | 11.98 | 34.39 | 291.92 | 0.5897 | -801.0 | -732.9 | |
| 0.00 | 1.12 | 0.00 | 0.68 | 13.57 | 11.27 | 33.69 | 289.44 | 0.5740 | 499.0 | 428.8 | |
| 12.57 | 86.85 | 7.52 | 52.04 | 13.53 | 10.50 | 32.91 | 289.71 | 0.5634 | 837.8 | -5.4 | |
| 0.00 | 3.62 | 0.00 | 2.15 | 13.39 | 10.00 | 32.42 | 289.69 | 0.5561 | 815.0 | 705.5 | |
| 4.39 | -41.00 | 2.62 | -41.00 | 14.18 | 9.95 | 32.36 | 291.09 | 0.5584 | 777.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.56 | 13.01 | 9.59 | 32.00 | 289.21 | 0.5490 | 711.0 | 589.3 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 11.40 | 9.15 | 31.57 | 286.49 | 0.5373 | -440.0 | -405.3 | |
| 0.00 | 2.50 | 0.00 | 1.46 | 13.28 | 8.73 | 31.15 | 290.09 | 0.5381 | 421.0 | 289.9 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 13.64 | 8.68 | 31.09 | 290.77 | 0.5388 | 543.0 | 464.3 | |
| 0.00 | 1.98 | 0.00 | 1.16 | 13.80 | 8.63 | 31.04 | 291.06 | 0.5388 | 519.0 | 469.7 | |
| 0.00 | 1.72 | 0.00 | 1.01 | 14.07 | 8.46 | 30.87 | 291.65 | 0.5376 | 549.0 | 516.2 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 13.23 | 8.26 | 30.68 | 290.23 | 0.5314 | 575.0 | 462.4 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 13.41 | 8.22 | 30.63 | 290.59 | 0.5315 | 363.0 | 347.2 | |
| 0.00 | 1.98 | 0.00 | 1.16 | 14.08 | 8.24 | 30.66 | 291.77 | 0.5347 | 897.0 | 785.2 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 13.90 | 8.07 | 30.49 | 291.54 | 0.5316 | 647.0 | 596.6 | |
| 0.00 | 1.38 | 0.00 | 0.81 | 14.42 | 8.08 | 30.50 | 292.47 | 0.5340 | 617.0 | 472.4 | |
| 0.00 | 1.12 | 0.00 | 0.66 | 15.57 | 8.19 | 30.61 | 294.44 | 0.5409 | 690.0 | 598.5 | |
| 0.00 | 2.15 | 0.00 | 1.26 | 14.81 | 8.03 | 30.45 | 293.20 | 0.5352 | 883.0 | 724.9 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 15.93 | 8.18 | 30.60 | 295.09 | 0.5426 | 601.0 | 494.8 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 19.52 | 8.66 | 31.07 | 300.78 | 0.5684 | 605.0 | 452.8 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 14.42 | 6.98 | 29.40 | 293.10 | 0.5189 | 703.0 | 565.0 | |
| 0.00 | 1.12 | 0.00 | 0.67 | 20.54 | 7.67 | 30.08 | 303.13 | 0.5627 | 586.0 | 537.0 | |
| 0.00 | 3.44 | 0.00 | 2.04 | 20.64 | 6.52 | 28.94 | 304.17 | 0.5494 | 685.0 | 515.9 | |
| 0.00 | 0.60 | 0.00 | 0.36 | 21.43 | 6.07 | 28.49 | 305.81 | 0.5497 | 685.0 | 583.3 | |
| 0.00 | 1.55 | 0.00 | 0.90 | 19.77 | 5.02 | 27.44 | 303.99 | 0.5251 | 744.0 | 608.8 | |
| 0.00 | 2.75 | 0.00 | 1.60 | 19.53 | 4.97 | 27.39 | 303.62 | 0.5227 | 745.0 | 643.9 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 19.96 | 4.81 | 27.22 | 304.50 | 0.5238 | 786.0 | 674.8 | |
| 0.00 | 0.52 | 0.00 | 0.30 | 19.42 | 4.21 | 26.63 | 304.10 | 0.5125 | 678.0 | 606.8 | |
| 0.00 | 0.86 | 0.00 | 0.49 | 19.58 | 3.82 | 26.23 | 304.74 | 0.5088 | 681.0 | 516.9 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 19.68 | 3.56 | 25.97 | 305.15 | 0.5063 | 647.0 | 593.5 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 19.09 | 2.34 | 24.76 | 305.28 | 0.4867 | 746.0 | 530.7 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 17.01 | 1.99 | 24.41 | 301.77 | 0.4667 | 762.0 | 584.0 | |
| 0.00 | 0.69 | 0.00 | 0.39 | 19.46 | 2.33 | 24.75 | 305.95 | 0.4895 | 678.0 | 605.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
