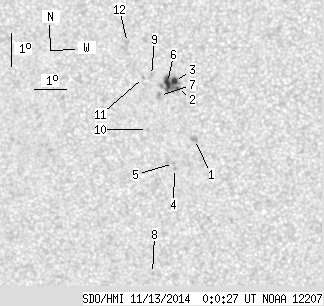

SDO HMI 2014-11-13 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.12 | 38.57 | 4.77 | 20.20 | -9.19 | 323.30 | -14.28 | 130.87 | 0.3243 | 815.7 | 695.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 00:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.79 | 0.00 | 1.98 | -10.41 | 324.07 | -13.52 | 135.31 | 0.3283 | 971.0 | 860.9 | |
| 0.86 | 22.81 | 0.45 | 11.91 | -8.86 | 323.61 | -13.98 | 130.79 | 0.3167 | 980.8 | 833.4 | |
| 3.44 | -2.00 | 1.80 | -2.00 | -8.65 | 323.52 | -14.06 | 130.11 | 0.3155 | 1259.0 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -11.30 | 323.40 | -14.18 | 135.84 | 0.3464 | 771.0 | 652.4 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -11.15 | 323.38 | -14.21 | 135.47 | 0.3449 | 801.0 | 558.6 | |
| 4.82 | -2.00 | 2.52 | -2.00 | -8.69 | 323.30 | -14.28 | 129.76 | 0.3186 | 1152.5 | 999999 | |
| 0.00 | 2.32 | 0.00 | 1.22 | -9.08 | 323.04 | -14.54 | 130.20 | 0.3261 | 795.0 | 650.1 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -14.56 | 322.51 | -15.08 | 140.16 | 0.3947 | -929.0 | -715.9 | |
| 0.00 | 2.41 | 0.00 | 1.26 | -8.48 | 322.82 | -14.77 | 128.32 | 0.3228 | 883.0 | 607.4 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -10.12 | 322.62 | -14.97 | 131.78 | 0.3425 | 716.0 | 516.2 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -8.54 | 322.57 | -15.02 | 128.01 | 0.3267 | 699.0 | 594.0 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -7.49 | 322.11 | -15.47 | 124.55 | 0.3226 | 748.0 | 596.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
