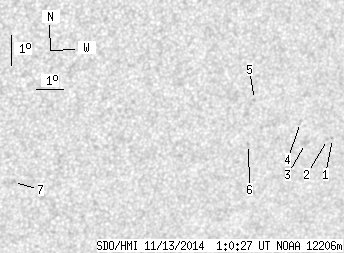

SDO HMI 2014-11-13 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.85 | 0.00 | 7.02 | -22.83 | 8.14 | 31.11 | 227.65 | 0.6450 | 471.6 | 351.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.75 | -22.83 | 11.07 | 34.04 | 230.26 | 0.6732 | 602.0 | 465.6 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -22.86 | 10.89 | 33.85 | 230.09 | 0.6716 | 588.0 | 389.6 | |
| 0.00 | 3.18 | 0.00 | 2.10 | -22.96 | 10.06 | 33.03 | 229.32 | 0.6642 | 805.0 | 585.9 | |
| 0.00 | 1.64 | 0.00 | 1.07 | -22.26 | 9.68 | 32.65 | 229.89 | 0.6551 | 586.0 | 481.8 | |
| 0.00 | 1.12 | 0.00 | 0.71 | -21.45 | 7.75 | 30.72 | 229.33 | 0.6291 | 571.0 | 523.1 | |
| 0.00 | 0.95 | 0.00 | 0.61 | -22.93 | 7.89 | 30.85 | 227.56 | 0.6423 | 748.0 | 508.1 | |
| 0.00 | 1.81 | 0.00 | 1.09 | -23.96 | 359.58 | 22.55 | 217.83 | 0.5736 | -599.0 | -529.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
