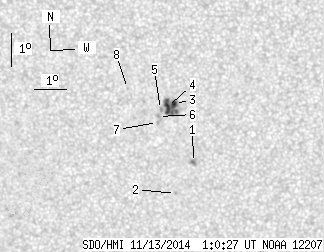

SDO HMI 2014-11-13 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.92 | 27.21 | 4.13 | 14.19 | -9.05 | 323.38 | -13.65 | 131.85 | 0.3147 | 968.1 | 827.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.53 | 0.00 | 1.85 | -10.41 | 324.04 | -12.99 | 136.43 | 0.3222 | 1101.0 | 886.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -11.36 | 323.44 | -13.59 | 137.15 | 0.3403 | 803.0 | 639.8 | |
| 2.50 | 18.08 | 1.30 | 9.42 | -8.62 | 323.53 | -13.50 | 131.16 | 0.3080 | 1280.1 | 912.7 | |
| 5.42 | -3.00 | 2.83 | -3.00 | -8.72 | 323.31 | -13.72 | 130.93 | 0.3118 | 1131.4 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -8.81 | 323.09 | -13.94 | 130.71 | 0.3156 | 790.0 | 737.0 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -9.02 | 323.02 | -14.01 | 131.09 | 0.3187 | 850.0 | 669.2 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -9.20 | 322.98 | -14.05 | 131.45 | 0.3212 | 728.0 | 570.2 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -8.19 | 322.09 | -14.94 | 127.25 | 0.3220 | 669.0 | 534.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
