SDO HMI 2014-11-13 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.65 | 122.32 | 81.33 | 516.98 | -12.42 | 254.61 | -81.88 | 102.98 | 0.9907 | -241.7 | -50.6 | |
|
previous
or next observation for the same group /

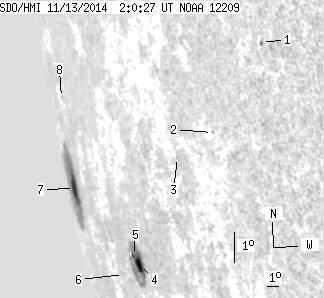

back to the solar disc SDO HMI 2014-11-13 02:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 1.28 | -6.51 | 274.97 | -61.51 | 99.03 | 0.8862 | 527.0 | 393.0 | |
| 0.00 | 1.03 | 0.00 | 1.29 | -9.43 | 270.79 | -65.69 | 101.66 | 0.9197 | 441.0 | 363.2 | |
| 0.00 | 1.03 | 0.00 | 1.49 | -10.34 | 267.64 | -68.85 | 102.21 | 0.9402 | 74.0 | 79.8 | |
| 6.71 | 48.81 | 14.10 | 103.46 | -13.94 | 261.42 | -75.06 | 105.16 | 0.9726 | 150.1 | 12.6 | |
| 1.72 | -4.00 | 3.73 | -4.00 | -13.73 | 260.90 | -75.59 | 104.88 | 0.9746 | -124.8 | 999999 | |
| 0.00 | 1.29 | 0.00 | 3.31 | -14.39 | 258.82 | -77.66 | 105.33 | 0.9820 | -99.0 | -88.9 | |
| 12.22 | 68.35 | 63.50 | 403.61 | -12.08 | 252.70 | -83.79 | 102.46 | 0.9960 | -370.1 | -70.8 | |
| 0.00 | 0.60 | 0.00 | 2.54 | -9.25 | 253.92 | -82.56 | 99.71 | 0.9934 | 38.0 | 63.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
