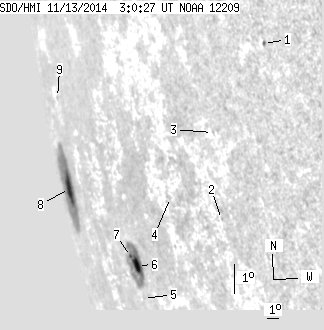

SDO HMI 2014-11-13 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.74 | 131.03 | 77.37 | 508.22 | -12.40 | 254.60 | -81.34 | 103.01 | 0.9895 | -218.1 | -36.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.43 | 1.81 | 0.45 | 1.88 | -6.54 | 274.98 | -60.96 | 99.14 | 0.8817 | 342.4 | 286.1 | |
| 0.00 | 1.03 | 0.00 | 1.31 | -12.11 | 270.28 | -65.65 | 104.55 | 0.9220 | 411.0 | 333.5 | |
| 0.00 | 0.69 | 0.00 | 0.84 | -9.43 | 270.75 | -65.18 | 101.73 | 0.9162 | 406.0 | 363.9 | |
| 0.00 | 1.03 | 0.00 | 1.54 | -11.63 | 266.42 | -69.51 | 103.47 | 0.9449 | -7.0 | 27.9 | |
| 0.00 | 0.95 | 0.00 | 1.95 | -15.01 | 261.15 | -74.78 | 106.29 | 0.9721 | -263.0 | -177.5 | |
| 6.37 | 47.09 | 12.86 | 96.68 | -13.98 | 261.44 | -74.50 | 105.26 | 0.9704 | 173.5 | 2.7 | |
| 1.03 | -6.00 | 2.16 | -6.00 | -13.73 | 260.84 | -75.10 | 104.94 | 0.9727 | -181.4 | 999999 | |
| 12.91 | 77.66 | 61.90 | 401.07 | -12.08 | 252.72 | -83.22 | 102.50 | 0.9951 | -339.6 | -50.1 | |
| 0.00 | 0.77 | 0.00 | 2.95 | -9.24 | 254.08 | -81.86 | 99.75 | 0.9920 | -42.0 | 10.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
