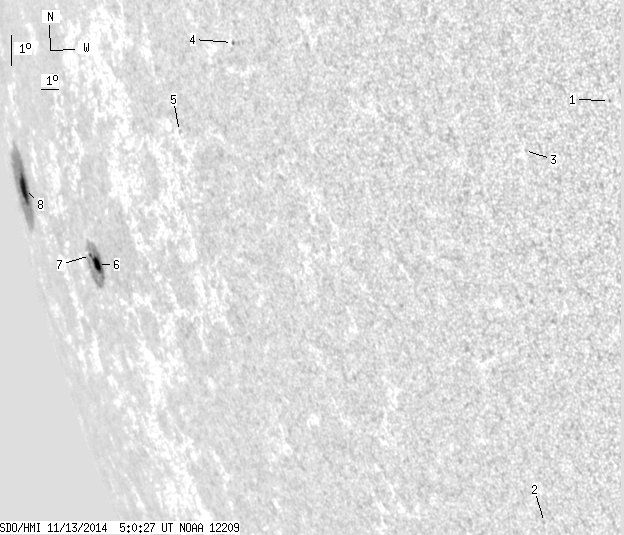

SDO HMI 2014-11-13 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.32 | 141.37 | 67.01 | 475.20 | -12.48 | 254.76 | -80.08 | 103.20 | 0.9860 | -93.3 | -21.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.47 | -7.56 | 292.91 | -41.93 | 104.48 | 0.6864 | 572.0 | 437.4 | |
| 0.00 | 0.95 | 0.00 | 0.78 | -20.92 | 286.60 | -48.24 | 119.23 | 0.8007 | 30.0 | 32.0 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -9.22 | 289.13 | -45.71 | 105.57 | 0.7359 | 464.0 | 465.2 | |
| 0.00 | 1.46 | 0.00 | 1.47 | -6.56 | 275.03 | -59.81 | 99.32 | 0.8722 | 589.0 | 376.2 | |
| 0.00 | 1.03 | 0.00 | 1.21 | -9.44 | 270.85 | -63.99 | 101.92 | 0.9079 | 484.0 | 374.0 | |
| 6.46 | 50.80 | 12.14 | 96.73 | -13.99 | 261.45 | -73.40 | 105.41 | 0.9657 | 227.7 | 23.4 | |
| 1.03 | -6.00 | 2.01 | -6.00 | -13.74 | 260.88 | -73.96 | 105.08 | 0.9680 | -182.8 | 999999 | |
| 12.83 | 85.75 | 52.86 | 374.04 | -12.12 | 252.76 | -82.08 | 102.62 | 0.9929 | -212.9 | -38.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
