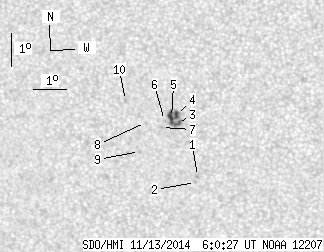

SDO HMI 2014-11-13 06:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.95 | 23.77 | 4.62 | 12.27 | -8.96 | 323.23 | -11.07 | 137.55 | 0.2824 | 949.6 | 784.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 06:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.71 | -10.52 | 324.04 | -10.26 | 143.20 | 0.2936 | 1004.0 | 794.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -10.70 | 323.97 | -10.33 | 143.40 | 0.2967 | 919.0 | 699.2 | |
| 2.07 | 15.84 | 1.07 | 8.17 | -8.91 | 323.48 | -10.82 | 138.09 | 0.2788 | 967.5 | 958.1 | |
| 2.32 | -3.00 | 1.20 | -3.00 | -8.64 | 323.46 | -10.84 | 137.36 | 0.2757 | 1303.6 | 999999 | |
| 4.56 | -3.00 | 2.35 | -3.00 | -8.73 | 323.30 | -10.99 | 137.19 | 0.2786 | 1138.3 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -8.82 | 323.08 | -11.21 | 136.86 | 0.2822 | 731.0 | 614.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -9.03 | 322.99 | -11.31 | 137.13 | 0.2860 | 839.0 | 584.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -8.89 | 322.50 | -11.80 | 135.57 | 0.2898 | 767.0 | 613.5 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -9.77 | 322.28 | -12.01 | 137.15 | 0.3029 | 712.0 | 577.8 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -8.23 | 321.91 | -12.39 | 132.51 | 0.2893 | 788.0 | 553.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
