SDO HMI 2014-11-13 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.06 | 0.00 | 6.15 | -9.57 | 339.24 | 5.49 | 202.98 | 0.2453 | 64.6 | 116.8 | |
|
previous
or next observation for the same group /

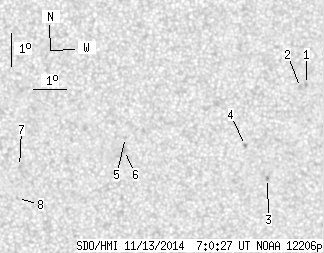

back to the solar disc SDO HMI 2014-11-13 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.70 | -7.90 | 342.68 | 8.93 | 219.07 | 0.2451 | 946.0 | 800.8 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -7.98 | 342.50 | 8.75 | 218.27 | 0.2444 | 760.0 | 667.4 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -10.74 | 341.56 | 7.81 | 209.28 | 0.2742 | 1024.0 | 871.3 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -9.73 | 340.87 | 7.12 | 208.93 | 0.2536 | 999.0 | 785.9 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -9.46 | 337.24 | 3.49 | 195.48 | 0.2259 | -845.0 | -710.5 | |
| 0.00 | 2.50 | 0.00 | 1.27 | -9.86 | 337.21 | 3.46 | 194.91 | 0.2323 | -856.0 | -702.5 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -10.34 | 334.05 | 0.30 | 181.27 | 0.2328 | -723.0 | -641.1 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -11.31 | 333.99 | 0.24 | 180.94 | 0.2494 | -788.0 | -578.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
