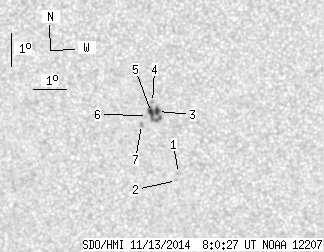

SDO HMI 2014-11-13 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.43 | 21.61 | 2.79 | 11.10 | -8.95 | 323.40 | -9.81 | 140.89 | 0.2684 | 907.5 | 763.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 0.98 | -10.55 | 324.05 | -9.15 | 146.31 | 0.2832 | 767.0 | 468.5 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -10.77 | 323.98 | -9.22 | 146.54 | 0.2868 | 984.0 | 764.9 | |
| 2.24 | 14.29 | 1.15 | 7.34 | -8.67 | 323.47 | -9.74 | 140.45 | 0.2638 | 1290.7 | 924.0 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -8.40 | 323.32 | -9.88 | 139.36 | 0.2619 | 913.0 | 768.7 | |
| 3.19 | -3.00 | 1.64 | -3.00 | -8.70 | 323.28 | -9.92 | 140.00 | 0.2662 | 1121.6 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -8.79 | 323.16 | -10.05 | 139.88 | 0.2687 | 296.0 | 455.6 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -9.07 | 322.97 | -10.24 | 140.01 | 0.2743 | 786.0 | 543.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
