SDO HMI 2014-11-13 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.34 | 479.81 | 43.17 | 273.09 | -11.66 | 307.72 | -25.48 | 120.95 | 0.4922 | -65.9 | -84.6 | |
|
previous
or next observation for the same group /

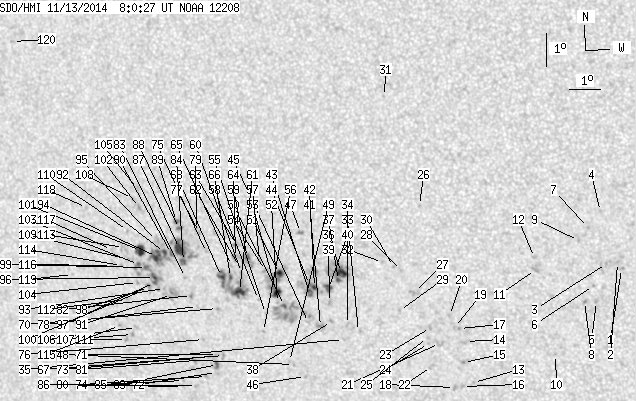

back to the solar disc SDO HMI 2014-11-13 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.81 | 0.00 | 0.95 | -10.99 | 319.57 | -13.64 | 136.19 | 0.3358 | 895.0 | 683.9 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -10.81 | 319.45 | -13.75 | 135.56 | 0.3350 | 920.0 | 718.9 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -10.85 | 319.11 | -14.10 | 134.93 | 0.3394 | 903.0 | 775.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -9.26 | 318.99 | -14.21 | 131.15 | 0.3232 | 730.0 | 556.4 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -12.01 | 318.73 | -14.47 | 136.58 | 0.3572 | -713.0 | -553.0 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -11.52 | 318.66 | -14.54 | 135.47 | 0.3523 | 645.0 | 507.4 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -9.75 | 318.60 | -14.61 | 131.52 | 0.3334 | 899.0 | 763.1 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -12.02 | 318.35 | -14.85 | 135.86 | 0.3615 | -932.0 | -830.5 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -10.15 | 318.27 | -14.94 | 131.79 | 0.3418 | 892.0 | 725.3 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -13.67 | 317.33 | -15.87 | 137.08 | 0.3919 | 617.0 | 436.5 | |
| 0.00 | 3.01 | 0.00 | 1.60 | -11.06 | 316.87 | -16.33 | 131.21 | 0.3685 | 774.0 | 596.4 | |
| 0.00 | 2.07 | 0.00 | 1.10 | -10.69 | 316.86 | -16.34 | 130.42 | 0.3648 | 827.0 | 606.6 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -14.58 | 314.63 | -18.57 | 134.25 | 0.4321 | 678.0 | 488.4 | |
| 0.00 | 3.96 | 0.00 | 2.16 | -13.31 | 314.48 | -18.72 | 131.77 | 0.4206 | 708.0 | 602.7 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -13.96 | 314.36 | -18.84 | 132.77 | 0.4287 | 916.0 | 762.4 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -14.71 | 314.26 | -18.94 | 133.92 | 0.4377 | 812.0 | 645.6 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -12.91 | 314.32 | -18.88 | 130.80 | 0.4185 | 955.0 | 849.2 | |
| 0.00 | 2.32 | 0.00 | 1.28 | -14.74 | 314.00 | -19.20 | 133.59 | 0.4410 | 684.0 | 620.7 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -12.88 | 314.16 | -19.04 | 130.51 | 0.4201 | 886.0 | 755.5 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -12.51 | 314.03 | -19.17 | 129.63 | 0.4181 | 785.0 | 642.2 | |
| 0.00 | 4.82 | 0.00 | 2.64 | -13.39 | 313.64 | -19.57 | 130.68 | 0.4314 | 471.0 | 622.7 | |
| 0.00 | 2.75 | 0.00 | 1.52 | -14.10 | 313.31 | -19.89 | 131.50 | 0.4424 | 733.0 | 541.2 | |
| 0.00 | 2.15 | 0.00 | 1.18 | -12.90 | 313.39 | -19.82 | 129.43 | 0.4297 | 819.0 | 679.2 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -13.39 | 313.28 | -19.92 | 130.19 | 0.4358 | 615.0 | 533.7 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -13.21 | 313.26 | -19.94 | 129.83 | 0.4342 | 618.0 | 568.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -9.17 | 313.30 | -19.90 | 121.82 | 0.3972 | 624.0 | 462.8 | |
| 0.00 | 4.48 | 0.00 | 2.45 | -11.83 | 312.96 | -20.25 | 126.82 | 0.4249 | 951.0 | 676.1 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -11.16 | 312.59 | -20.62 | 125.04 | 0.4237 | 502.0 | 461.0 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -12.39 | 312.42 | -20.78 | 127.19 | 0.4368 | 879.0 | 641.5 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -11.04 | 312.34 | -20.87 | 124.48 | 0.4259 | 972.0 | 775.1 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -5.89 | 312.35 | -20.85 | 113.24 | 0.3871 | 629.0 | 458.5 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -10.92 | 311.99 | -21.21 | 123.82 | 0.4295 | 660.0 | 473.8 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -13.06 | 311.02 | -22.18 | 126.66 | 0.4604 | 525.0 | 575.1 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -12.85 | 310.68 | -22.52 | 125.88 | 0.4629 | 1001.0 | 735.0 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -13.32 | 310.50 | -22.70 | 126.50 | 0.4692 | 631.0 | 524.8 | |
| 6.72 | 31.94 | 3.72 | 17.71 | -11.26 | 310.63 | -22.58 | 122.86 | 0.4501 | 1122.6 | 480.3 | |
| 1.29 | -36.00 | 0.72 | -36.00 | -11.50 | 310.51 | -22.70 | 123.19 | 0.4537 | 912.8 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.01 | -12.77 | 310.16 | -23.04 | 125.13 | 0.4687 | 869.0 | 651.2 | |
| 0.00 | 2.24 | 0.00 | 1.25 | -12.19 | 310.15 | -23.05 | 124.06 | 0.4640 | 909.0 | 682.2 | |
| 3.10 | 6.03 | 1.73 | 3.36 | -11.76 | 310.16 | -23.05 | 123.27 | 0.4603 | 991.5 | 755.5 | |
| 0.00 | 5.51 | 0.00 | 3.10 | -12.93 | 309.78 | -23.43 | 124.99 | 0.4749 | 852.0 | 689.7 | |
| 1.72 | 32.80 | 0.96 | 18.35 | -11.74 | 309.70 | -23.51 | 122.73 | 0.4662 | 1025.2 | 384.8 | |
| 2.58 | -42.00 | 1.45 | -42.00 | -11.89 | 309.52 | -23.69 | 122.82 | 0.4698 | 802.5 | 999999 | |
| 1.03 | -42.00 | 0.58 | -42.00 | -11.65 | 309.54 | -23.67 | 122.39 | 0.4675 | 765.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -12.82 | 309.39 | -23.81 | 124.35 | 0.4788 | 504.0 | 447.0 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -14.50 | 309.11 | -24.10 | 126.93 | 0.4965 | 659.0 | 589.5 | |
| 0.00 | 2.24 | 0.00 | 1.25 | -10.06 | 309.38 | -23.83 | 119.22 | 0.4576 | 819.0 | 715.3 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -14.13 | 308.75 | -24.46 | 125.92 | 0.4978 | 555.0 | 439.2 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -14.04 | 308.62 | -24.58 | 125.64 | 0.4986 | 624.0 | 510.9 | |
| 0.95 | 36.93 | 0.54 | 20.89 | -12.31 | 308.64 | -24.56 | 122.66 | 0.4844 | 761.0 | 195.5 | |
| 3.19 | 35.21 | 1.79 | 19.88 | -11.33 | 308.57 | -24.63 | 120.81 | 0.4778 | -487.8 | 148.5 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -12.22 | 308.42 | -24.79 | 122.27 | 0.4866 | 531.0 | 389.4 | |
| 4.13 | -51.00 | 2.34 | -51.00 | -11.92 | 308.42 | -24.79 | 121.72 | 0.4843 | 877.3 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.17 | -11.25 | 308.11 | -25.09 | 120.21 | 0.4833 | -882.0 | -770.4 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -12.57 | 307.98 | -25.23 | 122.44 | 0.4949 | 536.0 | 337.9 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -13.13 | 307.85 | -25.35 | 123.28 | 0.5009 | -964.0 | -779.1 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -10.95 | 307.94 | -25.26 | 119.49 | 0.4834 | 465.0 | 310.1 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -12.15 | 307.79 | -25.42 | 121.50 | 0.4941 | 661.0 | 465.8 | |
| 1.46 | 8.87 | 0.83 | 5.03 | -10.86 | 307.55 | -25.66 | 118.97 | 0.4881 | -1005.7 | -732.9 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -11.33 | 307.30 | -25.90 | 119.58 | 0.4946 | -850.0 | -705.9 | |
| 5.77 | 42.10 | 3.30 | 24.07 | -11.91 | 307.17 | -26.03 | 120.51 | 0.5005 | 798.3 | -117.4 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -11.15 | 307.25 | -25.95 | 119.21 | 0.4940 | -891.0 | -705.7 | |
| 0.00 | 4.30 | 0.00 | 2.44 | -10.48 | 307.21 | -25.99 | 117.95 | 0.4899 | -783.0 | -546.6 | |
| 0.00 | 4.05 | 0.00 | 2.30 | -10.87 | 307.14 | -26.06 | 118.62 | 0.4935 | -759.0 | -723.6 | |
| 0.00 | 1.46 | 0.00 | 0.83 | -11.12 | 306.98 | -26.22 | 118.92 | 0.4973 | -671.0 | -582.5 | |
| 0.95 | -61.00 | 0.54 | -61.00 | -11.49 | 306.91 | -26.29 | 119.52 | 0.5009 | -873.1 | 999999 | |
| 0.00 | 2.67 | 0.00 | 1.55 | -13.91 | 306.40 | -26.81 | 123.17 | 0.5251 | -962.0 | -726.1 | |
| 2.93 | -61.00 | 1.68 | -61.00 | -11.47 | 306.61 | -26.59 | 119.20 | 0.5047 | -1033.3 | 999999 | |
| 1.46 | 3.27 | 0.85 | 1.91 | -14.19 | 306.15 | -27.05 | 123.41 | 0.5303 | -986.2 | -841.8 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -12.46 | 306.37 | -26.84 | 120.71 | 0.5148 | 758.0 | 564.7 | |
| 0.00 | 1.89 | 0.00 | 1.10 | -13.88 | 306.19 | -27.01 | 122.94 | 0.5274 | -724.0 | -634.1 | |
| 0.00 | 1.38 | 0.00 | 0.81 | -14.44 | 306.09 | -27.12 | 123.75 | 0.5330 | -548.0 | -607.1 | |
| 0.00 | 1.55 | 0.00 | 0.90 | -13.95 | 305.91 | -27.29 | 122.79 | 0.5315 | -638.0 | -562.1 | |
| 0.00 | 1.64 | 0.00 | 0.96 | -14.57 | 305.72 | -27.48 | 123.63 | 0.5385 | -674.0 | -545.3 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -10.74 | 306.17 | -27.03 | 117.54 | 0.5056 | -768.0 | -675.2 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -13.43 | 305.77 | -27.43 | 121.80 | 0.5294 | -796.0 | -612.2 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -10.14 | 305.99 | -27.21 | 116.30 | 0.5041 | -713.0 | -659.7 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -12.41 | 305.69 | -27.52 | 120.03 | 0.5232 | 566.0 | 430.6 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -10.05 | 305.90 | -27.30 | 116.06 | 0.5048 | -403.0 | -487.2 | |
| 0.00 | 1.21 | 0.00 | 0.71 | -14.86 | 305.33 | -27.87 | 123.73 | 0.5454 | -692.0 | -614.5 | |
| 0.00 | 2.84 | 0.00 | 1.67 | -14.09 | 305.37 | -27.83 | 122.52 | 0.5392 | -859.0 | -742.1 | |
| 0.00 | 1.98 | 0.00 | 1.15 | -12.08 | 305.52 | -27.68 | 119.31 | 0.5231 | 562.0 | 350.7 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -11.53 | 305.38 | -27.83 | 118.25 | 0.5213 | -823.0 | -685.9 | |
| 2.41 | 68.62 | 1.39 | 39.76 | -11.04 | 305.36 | -27.84 | 117.38 | 0.5184 | -898.7 | -728.8 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -14.72 | 304.90 | -28.30 | 123.12 | 0.5496 | -649.0 | -594.0 | |
| 0.00 | 1.38 | 0.00 | 0.82 | -14.91 | 304.84 | -28.36 | 123.36 | 0.5518 | -651.0 | -511.4 | |
| 10.85 | -84.00 | 6.27 | -84.00 | -10.64 | 305.26 | -27.94 | 116.61 | 0.5171 | -1118.8 | 999999 | |
| 0.95 | 2.50 | 0.55 | 1.44 | -10.03 | 305.32 | -27.88 | 115.57 | 0.5126 | -998.1 | -810.6 | |
| 1.21 | 2.32 | 0.69 | 1.34 | -9.82 | 305.24 | -27.96 | 115.13 | 0.5124 | -909.0 | -802.5 | |
| 1.03 | -84.00 | 0.60 | -84.00 | -10.80 | 304.97 | -28.23 | 116.66 | 0.5220 | -953.8 | 999999 | |
| 0.00 | 11.02 | 0.00 | 6.44 | -12.06 | 304.83 | -28.37 | 118.71 | 0.5320 | -787.0 | -530.6 | |
| 2.07 | -84.00 | 1.20 | -84.00 | -10.78 | 304.74 | -28.47 | 116.43 | 0.5250 | -902.0 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -11.88 | 304.61 | -28.59 | 118.23 | 0.5337 | -879.0 | -771.0 | |
| 8.09 | -84.00 | 4.72 | -84.00 | -10.91 | 304.45 | -28.76 | 116.43 | 0.5297 | -1003.0 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.95 | -10.42 | 304.50 | -28.71 | 115.62 | 0.5260 | -205.0 | -196.3 | |
| 1.29 | 30.05 | 0.76 | 17.61 | -11.55 | 304.30 | -28.90 | 117.43 | 0.5356 | -1043.7 | -678.8 | |
| 0.86 | -96.00 | 0.50 | -96.00 | -11.71 | 304.29 | -28.92 | 117.68 | 0.5368 | -880.5 | 999999 | |
| 0.00 | 3.70 | 0.00 | 2.18 | -11.87 | 304.06 | -29.14 | 117.76 | 0.5408 | -778.0 | -644.7 | |
| 1.21 | -96.00 | 0.71 | -96.00 | -11.25 | 304.06 | -29.14 | 116.73 | 0.5369 | -948.1 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -11.97 | 303.84 | -29.37 | 117.76 | 0.5442 | -580.0 | -462.3 | |
| 7.23 | 9.13 | 4.24 | 5.35 | -10.74 | 303.91 | -29.29 | 115.74 | 0.5358 | -901.9 | -557.3 | |
| 0.00 | 2.41 | 0.00 | 1.40 | -9.43 | 304.01 | -29.20 | 113.52 | 0.5269 | -949.0 | -807.5 | |
| 0.86 | -96.00 | 0.51 | -96.00 | -11.17 | 303.79 | -29.41 | 116.38 | 0.5399 | -760.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -11.72 | 303.69 | -29.51 | 117.24 | 0.5446 | -704.0 | -590.9 | |
| 0.00 | 2.50 | 0.00 | 1.45 | -8.85 | 303.99 | -29.21 | 112.49 | 0.5240 | -747.0 | -636.9 | |
| 0.00 | 1.55 | 0.00 | 0.92 | -13.11 | 303.48 | -29.72 | 119.36 | 0.5562 | -765.0 | -573.8 | |
| 0.00 | 1.64 | 0.00 | 0.98 | -13.33 | 303.31 | -29.89 | 119.58 | 0.5598 | -806.0 | -671.0 | |
| 0.00 | 1.38 | 0.00 | 0.80 | -9.16 | 303.79 | -29.41 | 112.90 | 0.5284 | -739.0 | -618.0 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -11.03 | 303.46 | -29.74 | 115.90 | 0.5434 | -608.0 | -536.0 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -10.14 | 303.52 | -29.68 | 114.43 | 0.5375 | -709.0 | -602.6 | |
| 0.00 | 2.07 | 0.00 | 1.24 | -13.49 | 303.08 | -30.13 | 119.65 | 0.5638 | -687.0 | -503.2 | |
| 0.00 | 1.29 | 0.00 | 0.77 | -12.26 | 303.24 | -29.96 | 117.78 | 0.5538 | -653.0 | -490.4 | |
| 0.00 | 6.37 | 0.00 | 3.75 | -10.66 | 303.33 | -29.88 | 115.18 | 0.5431 | -727.0 | -556.1 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -11.22 | 303.19 | -30.01 | 116.02 | 0.5481 | -663.0 | -513.6 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -13.07 | 302.89 | -30.32 | 118.83 | 0.5634 | -855.0 | -664.0 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -11.23 | 302.84 | -30.36 | 115.78 | 0.5528 | -587.0 | -482.4 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -10.73 | 302.90 | -30.30 | 115.00 | 0.5492 | -391.0 | -375.6 | |
| 0.00 | 1.55 | 0.00 | 0.92 | -9.48 | 302.16 | -31.05 | 112.38 | 0.5523 | -655.0 | -558.8 | |
| 0.00 | 1.03 | 0.00 | 0.62 | -11.54 | 301.42 | -31.78 | 115.32 | 0.5731 | -466.0 | -288.8 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -4.54 | 299.93 | -33.27 | 102.71 | 0.5629 | 685.0 | 592.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
