SDO HMI 2014-11-13 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.52 | 27.82 | 7.70 | 15.94 | 8.89 | 2.98 | 29.78 | 282.54 | 0.5045 | 334.1 | -105.5 | |
|
previous
or next observation for the same group /

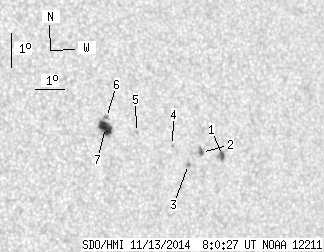

back to the solar disc SDO HMI 2014-11-13 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.07 | 5.34 | 1.21 | 3.14 | 8.27 | 5.57 | 32.37 | 280.59 | 0.5411 | -843.2 | -761.3 | |
| 1.12 | 3.10 | 0.65 | 1.81 | 8.38 | 4.84 | 31.63 | 280.97 | 0.5307 | -868.4 | -705.8 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 8.04 | 4.35 | 31.15 | 280.45 | 0.5229 | -878.0 | -828.2 | |
| 0.00 | 1.21 | 0.00 | 0.70 | 8.62 | 3.84 | 30.64 | 281.69 | 0.5166 | -634.0 | -586.9 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 9.04 | 2.63 | 29.43 | 282.89 | 0.4998 | 548.0 | 506.5 | |
| 0.00 | 2.50 | 0.00 | 1.41 | 9.51 | 1.64 | 28.44 | 284.20 | 0.4864 | 666.0 | 531.9 | |
| 10.33 | 13.69 | 5.84 | 7.74 | 9.22 | 1.58 | 28.38 | 283.61 | 0.4847 | 991.8 | 679.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
