groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

12205 71.73 452.51 48.64 303.68 13.89 14.09 41.44 287.49 0.6750 -381.2 -237.1


previous   or   next   observation for the same group / back to the solar disc

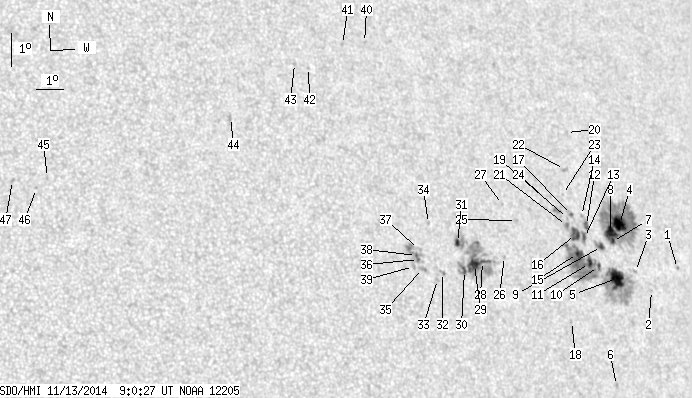

SDO HMI 2014-11-13 09:00:27 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.03 0.00 0.74 13.15 18.69 46.03 285.26 0.7288 -174.0 -247.1
2 0.00 0.86 0.00 0.61 12.53 17.41 44.75 284.66 0.7127 -604.0 -524.0
3 0.00 1.64 0.00 1.14 13.13 16.86 44.20 285.61 0.7073 -295.0 -259.1
4 11.71 123.02 8.16 85.76 14.57 16.52 43.87 287.70 0.7064 -962.7 -209.3
5 17.99 82.47 12.39 56.74 12.95 16.02 43.36 285.54 0.6968 -936.0 -309.4
6 0.00 1.38 0.00 0.93 9.75 15.41 42.75 281.04 0.6839 -550.0 -517.4
7 1.89 -4.00 1.31 -4.00 14.06 16.10 43.45 287.10 0.7002 -814.7 999999
8 8.95 -4.00 6.20 -4.00 14.34 16.09 43.43 287.49 0.7006 -953.9 999999
9 2.41 6.11 1.65 4.19 13.93 15.61 42.95 287.03 0.6940 -798.9 -533.3
10 1.55 75.32 1.06 50.84 13.33 15.35 42.69 286.25 0.6895 -696.2 -704.5
11 3.53 -10.00 2.39 -10.00 13.44 15.00 42.34 286.48 0.6855 -979.6 999999
12 0.00 3.53 0.00 2.41 14.59 15.14 42.48 288.09 0.6899 -694.0 -549.7
13 1.64 4.13 1.11 2.81 14.23 14.97 42.31 287.62 0.6870 -714.6 -659.0
14 0.00 1.21 0.00 0.82 14.90 15.00 42.35 288.57 0.6891 -304.0 -338.7
15 1.81 -10.00 1.22 -10.00 13.76 14.57 41.91 287.05 0.6810 -1151.6 999999
16 7.15 9.99 4.83 6.75 14.33 14.62 41.96 287.87 0.6830 -903.9 -725.2
17 0.69 2.93 0.47 1.98 14.94 14.60 41.94 288.75 0.6843 -714.4 -535.8
18 0.00 1.38 0.00 0.91 11.72 13.91 41.25 284.23 0.6684 -458.0 -455.9
19 0.00 0.86 0.00 0.58 14.83 14.41 41.75 288.64 0.6817 -585.0 -599.9
20 0.00 1.21 0.00 0.83 17.44 15.05 42.40 292.14 0.6968 -185.0 -320.5
21 0.00 2.07 0.00 1.39 14.62 14.32 41.66 288.36 0.6800 -960.0 -697.6
22 0.00 2.67 0.00 1.82 16.31 14.66 42.00 290.69 0.6888 -736.0 -534.7
23 0.00 0.69 0.00 0.47 15.56 14.38 41.72 289.70 0.6833 -460.0 -448.5
24 0.00 4.05 0.00 2.72 15.08 14.06 41.40 289.11 0.6781 -861.0 -721.7
25 0.00 1.55 0.00 1.01 14.84 12.34 39.68 289.30 0.6563 -307.0 -406.6
26 0.00 0.95 0.00 0.61 13.77 11.63 38.97 287.91 0.6443 -285.0 -283.3
27 0.00 0.77 0.00 0.50 15.34 11.89 39.23 290.20 0.6522 -602.0 -579.0
28 1.38 76.19 0.88 48.46 13.64 10.75 38.09 288.01 0.6327 608.9 79.7
29 6.03 -28.00 3.83 -28.00 13.56 10.42 37.76 287.99 0.6282 836.4 999999
30 1.64 -28.00 1.03 -28.00 13.40 10.01 37.35 287.86 0.6223 659.4 999999
31 2.41 14.38 1.52 9.10 14.25 9.90 37.24 289.24 0.6235 732.8 163.2
32 0.00 2.58 0.00 1.61 13.36 9.16 36.50 288.10 0.6111 471.0 420.0
33 0.00 1.64 0.00 1.02 13.16 8.93 36.27 287.85 0.6075 474.0 371.6
34 0.00 1.21 0.00 0.75 14.86 8.90 36.25 290.58 0.6127 -448.0 -497.3
35 0.00 2.93 0.00 1.81 13.51 8.43 35.77 288.60 0.6019 765.0 526.9
36 0.52 10.67 0.32 6.60 13.78 8.32 35.66 289.08 0.6015 698.0 566.3
37 0.00 1.46 0.00 0.91 14.08 8.38 35.72 289.55 0.6032 305.0 328.7
38 0.43 -36.00 0.27 -36.00 13.91 8.27 35.61 289.30 0.6012 738.4 999999
39 0.00 1.81 0.00 1.11 13.58 8.10 35.44 288.84 0.5978 697.0 634.7
40 0.00 1.03 0.00 0.65 20.47 7.74 35.08 299.80 0.6228 668.0 563.1
41 0.00 1.12 0.00 0.70 20.43 6.88 34.22 300.25 0.6124 744.0 608.5
42 0.00 0.69 0.00 0.42 19.76 5.43 32.77 300.11 0.5911 742.0 584.1
43 0.00 1.38 0.00 0.84 19.90 4.93 32.27 300.65 0.5859 729.0 548.5
44 0.00 1.64 0.00 0.96 18.30 2.25 29.59 299.89 0.5430 672.0 558.5
45 0.00 1.46 0.00 0.81 16.61 355.63 22.97 302.53 0.4454 746.0 589.1
46 0.00 0.95 0.00 0.52 16.28 355.22 22.56 302.31 0.4375 604.0 557.9
47 0.00 1.55 0.00 0.85 16.54 354.45 21.79 303.67 0.4293 824.0 626.7


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
