SDO HMI 2014-11-13 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.02 | 0.00 | 3.12 | 18.39 | 340.73 | 8.07 | 333.61 | 0.3001 | 502.2 | 482.4 | |
|
previous
or next observation for the same group /

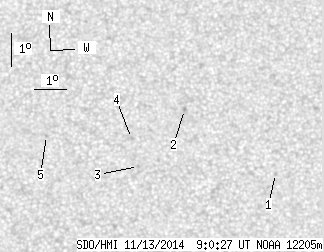

back to the solar disc SDO HMI 2014-11-13 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.54 | 17.38 | 344.53 | 11.87 | 321.70 | 0.3181 | -690.0 | -514.2 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 19.37 | 341.76 | 9.10 | 332.09 | 0.3202 | 863.0 | 752.0 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 17.63 | 340.22 | 7.56 | 333.58 | 0.2829 | 855.0 | 692.5 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 18.49 | 340.03 | 7.38 | 335.47 | 0.2945 | 738.0 | 674.1 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 18.60 | 337.36 | 4.70 | 343.84 | 0.2806 | 745.0 | 629.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
