SDO HMI 2014-11-13 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.48 | 175.87 | 67.73 | 468.27 | -12.55 | 254.67 | -77.99 | 103.46 | 0.9803 | 241.9 | -7.5 | |
|
previous
or next observation for the same group /

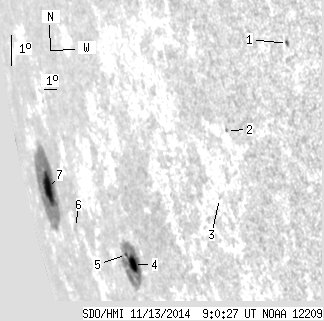

back to the solar disc SDO HMI 2014-11-13 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 1.78 | -6.64 | 275.22 | -57.44 | 99.76 | 0.8516 | 71.0 | 223.9 | |
| 0.00 | 1.03 | 0.00 | 1.12 | -9.47 | 270.87 | -61.79 | 102.28 | 0.8914 | 229.0 | 268.4 | |
| 0.00 | 0.86 | 0.00 | 0.98 | -11.60 | 269.64 | -63.02 | 104.42 | 0.9032 | 411.0 | 418.3 | |
| 7.58 | 59.14 | 12.53 | 98.74 | -14.03 | 261.49 | -71.16 | 105.74 | 0.9553 | 383.1 | 45.7 | |
| 1.03 | -4.00 | 1.75 | -4.00 | -13.75 | 261.03 | -71.63 | 105.38 | 0.9574 | 124.8 | 999999 | |
| 0.00 | 4.05 | 0.00 | 9.71 | -13.20 | 255.63 | -77.02 | 104.18 | 0.9795 | -95.0 | -96.2 | |
| 16.87 | 108.90 | 53.45 | 355.94 | -12.17 | 252.57 | -80.09 | 102.84 | 0.9883 | 219.2 | -23.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
