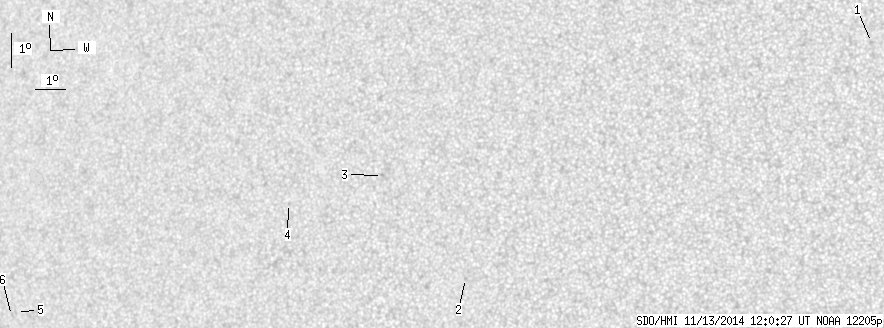

SDO HMI 2014-11-13 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.20 | 0.00 | 3.59 | 5.13 | 301.94 | -29.08 | 81.76 | 0.4874 | 353.2 | 295.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.62 | 10.58 | 318.79 | -12.23 | 57.54 | 0.2479 | -737.0 | -599.6 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 3.37 | 306.23 | -24.79 | 88.55 | 0.4206 | 775.0 | 637.5 | |
| 0.00 | 1.64 | 0.00 | 0.92 | 6.36 | 303.35 | -27.67 | 82.11 | 0.4679 | 700.0 | 502.4 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 5.45 | 300.18 | -30.84 | 84.46 | 0.5148 | 654.0 | 550.5 | |
| 0.00 | 0.52 | 0.00 | 0.34 | 1.92 | 290.33 | -40.69 | 90.59 | 0.6539 | 321.0 | 267.7 | |
| 0.00 | 1.20 | 0.00 | 0.79 | 1.82 | 290.14 | -40.88 | 90.73 | 0.6566 | 406.0 | 413.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
