SDO HMI 2014-11-13 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.53 | 428.54 | 34.59 | 239.67 | -11.66 | 307.74 | -23.28 | 123.26 | 0.4635 | -68.7 | -64.2 | |
|
previous
or next observation for the same group /

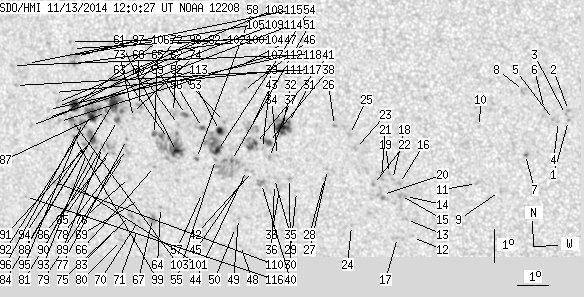

back to the solar disc SDO HMI 2014-11-13 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.45 | -10.92 | 319.74 | -11.28 | 141.35 | 0.3090 | 804.0 | 687.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -10.62 | 319.75 | -11.27 | 140.74 | 0.3050 | 903.0 | 792.5 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -10.74 | 319.65 | -11.37 | 140.76 | 0.3076 | 778.0 | 695.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -10.95 | 319.43 | -11.59 | 140.67 | 0.3127 | 608.0 | 544.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -10.89 | 319.27 | -11.75 | 140.18 | 0.3135 | 1007.0 | 837.0 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -10.59 | 319.01 | -12.01 | 138.91 | 0.3126 | 1000.0 | 801.8 | |
| 0.34 | 1.72 | 0.18 | 0.90 | -11.98 | 318.36 | -12.66 | 140.25 | 0.3368 | -872.0 | -818.7 | |
| 0.00 | 3.53 | 0.00 | 1.84 | -10.02 | 318.38 | -12.63 | 136.21 | 0.3127 | 728.0 | 697.0 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -13.13 | 317.49 | -13.53 | 140.55 | 0.3603 | 469.0 | 623.4 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -11.13 | 316.97 | -14.05 | 135.61 | 0.3420 | 737.0 | 482.3 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -12.89 | 316.78 | -14.24 | 138.68 | 0.3648 | 657.0 | 586.4 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -14.59 | 314.63 | -16.39 | 137.77 | 0.4079 | 695.0 | 602.2 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -14.03 | 314.49 | -16.53 | 136.55 | 0.4032 | 820.0 | 640.1 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -13.32 | 314.51 | -16.51 | 135.30 | 0.3949 | 773.0 | 669.8 | |
| 0.00 | 1.98 | 0.00 | 1.07 | -13.29 | 314.35 | -16.67 | 134.98 | 0.3964 | 791.0 | 769.0 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -12.92 | 314.34 | -16.68 | 134.28 | 0.3924 | 976.0 | 784.4 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -14.60 | 314.15 | -16.87 | 136.97 | 0.4132 | 398.0 | 341.6 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -12.80 | 314.13 | -16.89 | 133.70 | 0.3936 | 796.0 | 660.4 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -12.62 | 314.05 | -16.97 | 133.21 | 0.3925 | 789.0 | 605.3 | |
| 0.00 | 7.14 | 0.00 | 3.86 | -13.27 | 313.78 | -17.24 | 133.99 | 0.4027 | 405.0 | 638.3 | |
| 0.00 | 2.75 | 0.00 | 1.48 | -12.74 | 313.78 | -17.24 | 133.02 | 0.3970 | 773.0 | 702.5 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -12.96 | 313.51 | -17.51 | 132.99 | 0.4025 | 820.0 | 716.7 | |
| 0.00 | 2.24 | 0.00 | 1.21 | -11.86 | 313.02 | -18.00 | 130.10 | 0.3971 | 841.0 | 762.3 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -14.25 | 312.70 | -18.32 | 134.04 | 0.4255 | 536.0 | 374.5 | |
| 0.00 | 2.24 | 0.00 | 1.21 | -11.44 | 312.86 | -18.16 | 129.00 | 0.3948 | 826.0 | 617.8 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -11.17 | 312.40 | -18.62 | 127.77 | 0.3980 | 905.0 | 751.5 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -12.52 | 312.07 | -18.95 | 129.95 | 0.4153 | 620.0 | 544.9 | |
| 0.00 | 1.38 | 0.00 | 0.75 | -12.80 | 311.95 | -19.07 | 130.30 | 0.4195 | 409.0 | 390.4 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -13.22 | 311.01 | -20.01 | 129.74 | 0.4350 | 555.0 | 496.9 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -12.82 | 310.82 | -20.20 | 128.75 | 0.4335 | 775.0 | 731.8 | |
| 0.77 | 26.42 | 0.42 | 14.41 | -11.10 | 310.93 | -20.09 | 125.58 | 0.4163 | 1034.1 | 639.6 | |
| 9.38 | -31.00 | 5.12 | -31.00 | -11.29 | 310.72 | -20.30 | 125.67 | 0.4206 | 1042.6 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -13.17 | 310.47 | -20.55 | 128.90 | 0.4411 | 477.0 | 546.3 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -12.12 | 310.49 | -20.53 | 126.99 | 0.4311 | 446.0 | 469.4 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -12.83 | 310.33 | -20.69 | 128.11 | 0.4396 | 837.0 | 632.9 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -13.02 | 310.32 | -20.70 | 128.43 | 0.4415 | 547.0 | 570.7 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -12.19 | 310.23 | -20.79 | 126.77 | 0.4350 | 928.0 | 703.9 | |
| 2.58 | 4.99 | 1.42 | 2.74 | -11.73 | 310.23 | -20.79 | 125.89 | 0.4308 | 996.3 | 766.2 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -11.91 | 310.02 | -21.00 | 125.99 | 0.4352 | 892.0 | 662.5 | |
| 0.00 | 6.02 | 0.00 | 3.33 | -12.99 | 309.89 | -21.12 | 127.83 | 0.4465 | 852.0 | 647.3 | |
| 1.12 | 12.99 | 0.62 | 7.15 | -11.77 | 309.81 | -21.21 | 125.43 | 0.4366 | 1033.7 | 644.2 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -12.63 | 309.63 | -21.39 | 126.83 | 0.4464 | 857.0 | 683.5 | |
| 0.00 | 12.39 | 0.00 | 6.81 | -11.28 | 309.68 | -21.34 | 124.34 | 0.4340 | 201.0 | 295.9 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -12.60 | 309.44 | -21.58 | 126.54 | 0.4486 | 789.0 | 713.8 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -12.79 | 309.39 | -21.63 | 126.82 | 0.4509 | 286.0 | 359.7 | |
| 0.00 | 2.32 | 0.00 | 1.27 | -10.15 | 309.54 | -21.48 | 121.93 | 0.4265 | 762.0 | 672.4 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -9.39 | 309.50 | -21.52 | 120.31 | 0.4211 | 592.0 | 430.1 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -14.93 | 309.01 | -22.01 | 130.09 | 0.4753 | 277.0 | 442.7 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -14.09 | 309.03 | -21.99 | 128.69 | 0.4672 | 656.0 | 573.5 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -14.38 | 308.90 | -22.12 | 129.02 | 0.4713 | 383.0 | 404.2 | |
| 0.43 | 33.65 | 0.24 | 18.70 | -12.30 | 308.98 | -22.04 | 125.42 | 0.4519 | 793.4 | 215.9 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -11.11 | 308.85 | -22.17 | 123.02 | 0.4435 | -200.0 | -231.6 | |
| 3.61 | 33.39 | 2.00 | 18.53 | -11.39 | 308.66 | -22.36 | 123.34 | 0.4482 | -468.5 | 197.7 | |
| 3.53 | -53.00 | 1.96 | -53.00 | -12.00 | 308.54 | -22.48 | 124.36 | 0.4549 | 961.2 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -12.28 | 308.45 | -22.57 | 124.77 | 0.4584 | 276.0 | 349.6 | |
| 0.95 | 3.96 | 0.53 | 2.20 | -11.31 | 308.11 | -22.91 | 122.56 | 0.4548 | -900.7 | -717.8 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -13.31 | 307.92 | -23.10 | 126.00 | 0.4738 | -674.0 | -576.9 | |
| 0.43 | 1.55 | 0.24 | 0.87 | -12.26 | 307.83 | -23.19 | 124.02 | 0.4662 | 633.2 | 556.0 | |
| 0.95 | 3.79 | 0.53 | 2.11 | -10.92 | 307.59 | -23.43 | 121.25 | 0.4587 | -1006.4 | -686.7 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -11.23 | 307.33 | -23.69 | 121.57 | 0.4645 | -788.0 | -741.1 | |
| 3.96 | 44.23 | 2.22 | 24.85 | -12.06 | 307.18 | -23.84 | 122.95 | 0.4729 | 1008.7 | -47.8 | |
| 0.00 | 4.30 | 0.00 | 2.40 | -10.87 | 307.19 | -23.83 | 120.74 | 0.4635 | -863.0 | -584.8 | |
| 0.43 | -61.00 | 0.24 | -61.00 | -11.67 | 306.96 | -24.06 | 121.99 | 0.4728 | -716.8 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -13.81 | 306.47 | -24.55 | 125.24 | 0.4961 | -876.0 | -725.5 | |
| 0.95 | -61.00 | 0.53 | -61.00 | -11.56 | 306.50 | -24.52 | 121.31 | 0.4779 | -937.4 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.78 | -12.54 | 306.40 | -24.62 | 122.98 | 0.4867 | 581.0 | 529.1 | |
| 0.00 | 6.37 | 0.00 | 3.64 | -14.15 | 306.16 | -24.86 | 125.50 | 0.5028 | -1029.0 | -849.8 | |
| 0.00 | 2.75 | 0.00 | 1.55 | -10.68 | 306.08 | -24.94 | 119.28 | 0.4770 | -866.0 | -800.3 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -13.57 | 305.79 | -25.23 | 124.14 | 0.5027 | -392.0 | -435.2 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -14.23 | 305.67 | -25.35 | 125.12 | 0.5094 | -686.0 | -571.6 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -14.51 | 305.61 | -25.41 | 125.52 | 0.5125 | -468.0 | -494.4 | |
| 0.00 | 2.84 | 0.00 | 1.60 | -10.10 | 305.97 | -25.05 | 118.08 | 0.4745 | -564.0 | -562.9 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -11.05 | 305.85 | -25.17 | 119.74 | 0.4828 | -506.0 | -467.4 | |
| 0.00 | 1.64 | 0.00 | 0.92 | -10.90 | 305.83 | -25.19 | 119.44 | 0.4819 | -821.0 | -752.8 | |
| 0.00 | 2.41 | 0.00 | 1.39 | -14.08 | 305.42 | -25.60 | 124.61 | 0.5113 | -914.0 | -698.6 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -12.90 | 305.52 | -25.50 | 122.72 | 0.5008 | -360.0 | -390.8 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -11.73 | 305.55 | -25.47 | 120.69 | 0.4917 | -856.0 | -694.2 | |
| 0.00 | 5.25 | 0.00 | 2.99 | -12.04 | 305.52 | -25.50 | 121.20 | 0.4944 | 258.0 | 97.0 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -12.23 | 305.40 | -25.62 | 121.42 | 0.4973 | 206.0 | 228.4 | |
| 0.00 | 2.32 | 0.00 | 1.35 | -14.86 | 305.01 | -26.01 | 125.49 | 0.5226 | -686.0 | -526.0 | |
| 1.12 | 28.23 | 0.64 | 15.99 | -11.15 | 305.30 | -25.72 | 119.42 | 0.4908 | -903.2 | -804.4 | |
| 0.00 | 6.11 | 0.00 | 3.45 | -9.96 | 305.34 | -25.68 | 117.26 | 0.4820 | -892.0 | -809.4 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -14.56 | 304.85 | -26.17 | 124.83 | 0.5222 | -540.0 | -517.1 | |
| 8.95 | -81.00 | 5.07 | -81.00 | -10.61 | 305.22 | -25.80 | 118.34 | 0.4881 | -1074.8 | 999999 | |
| 0.00 | 5.59 | 0.00 | 3.20 | -12.02 | 304.98 | -26.04 | 120.66 | 0.5012 | -588.0 | -580.5 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -12.17 | 304.93 | -26.09 | 120.88 | 0.5030 | -615.0 | -658.4 | |
| 0.00 | 2.15 | 0.00 | 1.22 | -10.89 | 304.96 | -26.06 | 118.62 | 0.4935 | -973.0 | -793.4 | |
| 0.00 | 3.36 | 0.00 | 1.91 | -11.07 | 304.87 | -26.15 | 118.88 | 0.4959 | -830.0 | -690.9 | |
| 0.00 | 2.84 | 0.00 | 1.63 | -12.00 | 304.71 | -26.31 | 120.37 | 0.5045 | -687.0 | -689.7 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -12.00 | 304.47 | -26.55 | 120.16 | 0.5077 | -659.0 | -596.6 | |
| 3.10 | 8.95 | 1.78 | 5.13 | -11.76 | 304.40 | -26.62 | 119.67 | 0.5069 | -964.4 | -865.3 | |
| 9.47 | 23.06 | 5.41 | 13.17 | -10.99 | 304.44 | -26.58 | 118.34 | 0.5011 | -987.0 | -685.2 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -12.13 | 304.19 | -26.83 | 120.13 | 0.5123 | -468.0 | -420.6 | |
| 0.00 | 1.72 | 0.00 | 0.99 | -11.92 | 304.11 | -26.91 | 119.69 | 0.5118 | -782.0 | -734.8 | |
| 1.29 | 12.22 | 0.74 | 7.02 | -11.24 | 304.11 | -26.91 | 118.51 | 0.5072 | -944.7 | -680.7 | |
| 0.00 | 1.89 | 0.00 | 1.09 | -11.49 | 303.95 | -27.07 | 118.80 | 0.5110 | -869.0 | -740.9 | |
| 0.00 | 1.72 | 0.00 | 0.98 | -9.23 | 304.10 | -26.92 | 114.84 | 0.4945 | -813.0 | -589.4 | |
| 6.97 | 9.72 | 4.00 | 5.58 | -10.73 | 303.89 | -27.13 | 117.40 | 0.5067 | -897.6 | -575.6 | |
| 0.34 | 2.07 | 0.20 | 1.19 | -11.71 | 303.79 | -27.23 | 119.05 | 0.5146 | -838.8 | -661.4 | |
| 0.00 | 2.93 | 0.00 | 1.67 | -9.45 | 303.98 | -27.04 | 115.14 | 0.4975 | -957.0 | -811.2 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -13.16 | 303.55 | -27.47 | 121.31 | 0.5278 | -706.0 | -603.6 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -8.99 | 303.98 | -27.04 | 114.30 | 0.4947 | -788.0 | -539.7 | |
| 0.86 | -95.00 | 0.50 | -95.00 | -11.16 | 303.75 | -27.27 | 118.05 | 0.5115 | -745.5 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -8.78 | 303.93 | -27.09 | 113.87 | 0.4941 | -841.0 | -722.1 | |
| 0.00 | 1.38 | 0.00 | 0.78 | -9.21 | 303.90 | -27.12 | 114.63 | 0.4971 | -824.0 | -692.5 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -10.98 | 303.53 | -27.49 | 117.55 | 0.5132 | -636.0 | -583.9 | |
| 0.00 | 2.24 | 0.00 | 1.29 | -11.23 | 303.33 | -27.69 | 117.82 | 0.5175 | -684.0 | -521.2 | |
| 0.00 | 1.98 | 0.00 | 1.14 | -10.65 | 303.32 | -27.70 | 116.79 | 0.5138 | -730.0 | -664.9 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -10.77 | 303.31 | -27.71 | 117.00 | 0.5148 | -582.0 | -555.9 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -13.12 | 302.94 | -28.08 | 120.69 | 0.5353 | -714.0 | -565.5 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -10.35 | 303.25 | -27.77 | 116.20 | 0.5129 | -719.0 | -559.4 | |
| 0.00 | 1.38 | 0.00 | 0.80 | -10.87 | 302.99 | -28.03 | 116.92 | 0.5197 | -568.0 | -412.1 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -11.12 | 302.93 | -28.09 | 117.30 | 0.5220 | -443.0 | -397.8 | |
| 0.00 | 1.81 | 0.00 | 1.05 | -11.38 | 302.35 | -28.67 | 117.29 | 0.5313 | -745.0 | -500.5 | |
| 0.00 | 1.46 | 0.00 | 0.85 | -9.49 | 302.41 | -28.61 | 114.02 | 0.5192 | -665.0 | -582.8 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -13.57 | 301.87 | -29.15 | 120.54 | 0.5520 | -653.0 | -548.3 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -10.17 | 301.93 | -29.09 | 114.87 | 0.5296 | -635.0 | -448.8 | |
| 0.00 | 1.38 | 0.00 | 0.80 | -9.56 | 301.88 | -29.14 | 113.78 | 0.5268 | -491.0 | -457.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
