SDO HMI 2014-11-13 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.22 | 34.84 | 7.14 | 20.47 | 8.76 | 3.24 | 32.22 | 281.60 | 0.5399 | 127.8 | -193.0 | |
|
previous
or next observation for the same group /

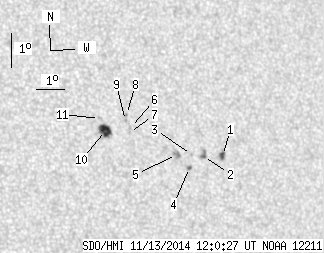

back to the solar disc SDO HMI 2014-11-13 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.15 | 4.13 | 1.30 | 2.49 | 8.27 | 5.72 | 34.70 | 280.12 | 0.5745 | -840.9 | -594.7 | |
| 0.77 | 4.39 | 0.46 | 2.63 | 8.26 | 5.03 | 34.01 | 280.24 | 0.5647 | -948.4 | -745.2 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 8.34 | 4.60 | 33.58 | 280.46 | 0.5587 | -428.0 | -481.1 | |
| 0.52 | 1.89 | 0.31 | 1.13 | 7.95 | 4.49 | 33.47 | 279.80 | 0.5565 | -829.7 | -703.4 | |
| 0.00 | 5.34 | 0.00 | 3.16 | 8.35 | 4.06 | 33.04 | 280.61 | 0.5510 | -883.0 | -676.5 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 9.20 | 2.51 | 31.49 | 282.58 | 0.5304 | 467.0 | 319.4 | |
| 0.00 | 0.77 | 0.00 | 0.45 | 9.06 | 2.46 | 31.44 | 282.32 | 0.5294 | 151.0 | 195.2 | |
| 0.00 | 1.20 | 0.00 | 0.70 | 9.59 | 2.41 | 31.39 | 283.34 | 0.5299 | 679.0 | 492.9 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 9.42 | 2.36 | 31.34 | 283.03 | 0.5287 | 211.0 | 353.4 | |
| 8.78 | 12.91 | 5.07 | 7.46 | 9.14 | 1.63 | 30.61 | 282.73 | 0.5174 | 981.5 | 611.5 | |
| 0.00 | 1.64 | 0.00 | 0.94 | 9.50 | 1.45 | 30.43 | 283.48 | 0.5158 | 455.0 | 463.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
