SDO HMI 2014-11-13 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.31 | 23.06 | 4.70 | 14.98 | 17.30 | 292.07 | -38.40 | 66.56 | 0.6485 | -208.9 | 33.9 | |
|
previous
or next observation for the same group /

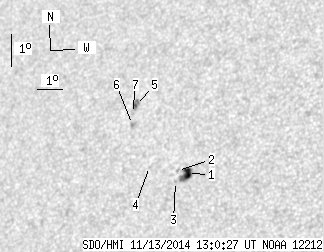

back to the solar disc SDO HMI 2014-11-13 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.54 | 11.87 | 4.18 | 7.59 | 16.63 | 293.09 | -37.38 | 67.12 | 0.6336 | -723.4 | -581.2 | |
| 0.00 | 1.55 | 0.00 | 0.99 | 16.71 | 292.68 | -37.79 | 67.17 | 0.6390 | -254.0 | -280.6 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 16.37 | 292.68 | -37.79 | 67.68 | 0.6378 | -457.0 | -419.2 | |
| 0.00 | 0.52 | 0.00 | 0.34 | 16.80 | 291.55 | -38.92 | 67.50 | 0.6533 | -204.0 | -204.0 | |
| 0.77 | 5.25 | 0.52 | 3.50 | 18.64 | 290.50 | -39.97 | 65.24 | 0.6726 | 823.6 | 596.3 | |
| 0.00 | 2.15 | 0.00 | 1.43 | 18.06 | 290.54 | -39.93 | 66.06 | 0.6700 | 824.0 | 588.1 | |
| 0.00 | 0.77 | 0.00 | 0.52 | 18.39 | 290.45 | -40.02 | 65.62 | 0.6723 | 660.0 | 602.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
