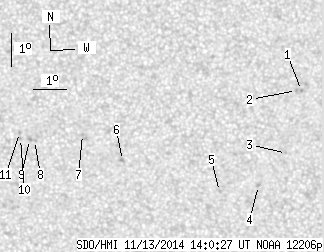

SDO HMI 2014-11-13 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.12 | 0.00 | 7.25 | -9.44 | 337.93 | 8.01 | 211.29 | 0.2610 | -72.6 | -165.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.49 | -7.84 | 342.84 | 12.92 | 229.77 | 0.2915 | 959.0 | 841.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -7.84 | 342.69 | 12.77 | 229.44 | 0.2895 | 921.0 | 777.9 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -9.75 | 342.45 | 12.53 | 224.17 | 0.3081 | 846.0 | 711.0 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -10.71 | 341.62 | 11.70 | 220.11 | 0.3106 | 921.0 | 600.9 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -10.88 | 340.43 | 10.50 | 216.77 | 0.3005 | 726.0 | 641.6 | |
| 0.00 | 2.15 | 0.00 | 1.10 | -9.90 | 337.44 | 7.52 | 209.96 | 0.2591 | -924.0 | -738.6 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -9.11 | 336.21 | 6.29 | 207.25 | 0.2373 | -870.0 | -659.5 | |
| 0.00 | 1.81 | 0.00 | 0.92 | -9.28 | 334.76 | 4.84 | 201.35 | 0.2298 | -801.0 | -656.0 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -9.25 | 334.61 | 4.69 | 200.80 | 0.2284 | -885.0 | -786.0 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -9.21 | 334.34 | 4.42 | 199.74 | 0.2263 | -777.0 | -556.3 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -9.03 | 334.31 | 4.39 | 199.88 | 0.2232 | -915.0 | -753.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
