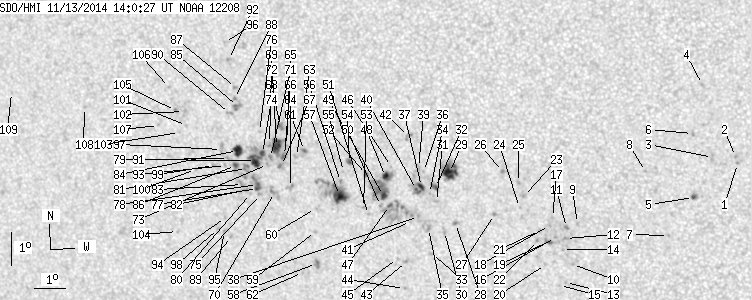

SDO HMI 2014-11-13 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.81 | 383.98 | 36.59 | 213.30 | -11.60 | 307.58 | -22.34 | 124.31 | 0.4511 | -47.7 | -84.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-13 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.76 | -10.88 | 319.81 | -10.11 | 144.28 | 0.2966 | 906.0 | 669.8 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -10.67 | 319.76 | -10.16 | 143.70 | 0.2942 | 1000.0 | 859.7 | |
| 0.00 | 2.93 | 0.00 | 1.52 | -10.70 | 319.05 | -10.87 | 141.93 | 0.3019 | 546.0 | 575.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -8.49 | 318.82 | -11.10 | 136.23 | 0.2765 | 689.0 | 597.0 | |
| 1.03 | 2.75 | 0.54 | 1.44 | -11.93 | 318.41 | -11.51 | 142.81 | 0.3244 | -985.6 | -714.9 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -9.98 | 318.46 | -11.46 | 138.88 | 0.2989 | 902.0 | 656.3 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -13.11 | 317.58 | -12.34 | 143.07 | 0.3480 | 846.0 | 644.2 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -11.15 | 316.96 | -12.96 | 137.93 | 0.3299 | 608.0 | 408.4 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -12.78 | 314.75 | -15.17 | 136.68 | 0.3737 | 540.0 | 513.0 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -14.05 | 314.51 | -15.42 | 138.54 | 0.3912 | 802.0 | 630.6 | |
| 0.00 | 2.06 | 0.00 | 1.10 | -12.90 | 314.39 | -15.53 | 136.26 | 0.3791 | 1067.0 | 838.8 | |
| 0.00 | 2.24 | 0.00 | 1.20 | -13.24 | 314.34 | -15.58 | 136.80 | 0.3837 | 895.0 | 723.0 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -14.61 | 314.24 | -15.68 | 139.03 | 0.4007 | 478.0 | 413.3 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -13.59 | 314.22 | -15.70 | 137.21 | 0.3889 | 592.0 | 574.8 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -14.71 | 314.04 | -15.88 | 138.85 | 0.4039 | 405.0 | 361.1 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -13.22 | 314.02 | -15.90 | 136.18 | 0.3868 | 819.0 | 713.1 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -12.60 | 313.97 | -15.95 | 134.93 | 0.3805 | 499.0 | 531.4 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -12.85 | 313.86 | -16.06 | 135.20 | 0.3846 | 901.0 | 734.0 | |
| 0.00 | 4.22 | 0.00 | 2.27 | -13.34 | 313.79 | -16.13 | 136.01 | 0.3909 | 752.0 | 695.9 | |
| 0.00 | 1.46 | 0.00 | 0.79 | -14.06 | 313.65 | -16.28 | 137.03 | 0.4006 | 695.0 | 453.5 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -13.01 | 313.53 | -16.39 | 134.93 | 0.3901 | 880.0 | 650.5 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -13.32 | 313.45 | -16.48 | 135.36 | 0.3945 | 724.0 | 586.9 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -11.97 | 313.09 | -16.83 | 132.19 | 0.3839 | 1069.0 | 830.9 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -12.31 | 312.94 | -16.98 | 132.60 | 0.3893 | 579.0 | 594.2 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -11.54 | 312.96 | -16.96 | 131.11 | 0.3810 | 849.0 | 687.3 | |
| 0.00 | 1.98 | 0.00 | 1.06 | -11.21 | 312.48 | -17.44 | 129.65 | 0.3836 | 903.0 | 724.8 | |
| 0.00 | 1.72 | 0.00 | 0.93 | -12.54 | 312.13 | -17.79 | 131.73 | 0.4014 | 823.0 | 611.5 | |
| 0.00 | 1.81 | 0.00 | 0.98 | -12.83 | 310.86 | -19.06 | 130.36 | 0.4197 | 939.0 | 702.8 | |
| 11.53 | 24.18 | 6.24 | 13.09 | -11.27 | 310.78 | -19.14 | 127.22 | 0.4055 | 1055.0 | 713.9 | |
| 0.00 | 3.27 | 0.00 | 1.79 | -13.09 | 310.48 | -19.44 | 130.29 | 0.4268 | 590.0 | 534.9 | |
| 0.00 | 1.98 | 0.00 | 1.08 | -12.17 | 310.30 | -19.62 | 128.30 | 0.4201 | 737.0 | 601.2 | |
| 1.12 | 3.87 | 0.61 | 2.11 | -11.74 | 310.30 | -19.62 | 127.47 | 0.4160 | 1050.4 | 830.1 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -13.78 | 310.00 | -19.92 | 130.85 | 0.4393 | 342.0 | 375.4 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -11.92 | 310.09 | -19.83 | 127.54 | 0.4204 | 790.0 | 654.2 | |
| 0.00 | 3.10 | 0.00 | 1.70 | -13.00 | 309.97 | -19.95 | 129.41 | 0.4321 | 857.0 | 696.4 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -11.25 | 309.95 | -19.97 | 126.03 | 0.4160 | 671.0 | 586.9 | |
| 2.41 | 12.56 | 1.31 | 6.86 | -11.71 | 309.85 | -20.07 | 126.81 | 0.4215 | 818.6 | 569.9 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -12.64 | 309.68 | -20.24 | 128.34 | 0.4323 | 747.0 | 604.9 | |
| 0.00 | 3.36 | 0.00 | 1.83 | -11.13 | 309.80 | -20.12 | 125.59 | 0.4169 | 177.0 | 207.8 | |
| 0.26 | -37.00 | 0.14 | -37.00 | -11.81 | 309.68 | -20.24 | 126.77 | 0.4245 | 589.7 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -12.80 | 309.41 | -20.52 | 128.27 | 0.4371 | 217.0 | 335.4 | |
| 0.00 | 3.61 | 0.00 | 1.96 | -10.19 | 309.54 | -20.38 | 123.35 | 0.4121 | 709.0 | 688.7 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -14.04 | 309.16 | -20.76 | 130.17 | 0.4519 | 711.0 | 548.1 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -14.88 | 309.01 | -20.91 | 131.42 | 0.4619 | 635.0 | 436.5 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -13.95 | 308.88 | -21.05 | 129.64 | 0.4545 | 319.0 | 376.4 | |
| 0.00 | 0.34 | 0.00 | 0.19 | -11.12 | 308.93 | -20.99 | 124.44 | 0.4281 | -231.0 | -169.0 | |
| 0.69 | 28.65 | 0.38 | 15.79 | -12.32 | 308.76 | -21.16 | 126.54 | 0.4407 | 693.8 | 289.4 | |
| 3.27 | 37.77 | 1.80 | 20.80 | -11.43 | 308.71 | -21.21 | 124.77 | 0.4336 | -703.1 | 195.4 | |
| 3.27 | -48.00 | 1.80 | -48.00 | -12.01 | 308.60 | -21.33 | 125.75 | 0.4402 | 925.1 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -12.32 | 308.47 | -21.45 | 126.18 | 0.4445 | 543.0 | 405.4 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -12.61 | 308.05 | -21.87 | 126.19 | 0.4523 | 669.0 | 477.4 | |
| 0.69 | 1.63 | 0.38 | 0.90 | -11.38 | 308.09 | -21.83 | 123.93 | 0.4412 | -846.1 | -793.3 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -12.40 | 307.91 | -22.01 | 125.62 | 0.4523 | 534.0 | 493.0 | |
| 0.95 | 3.44 | 0.52 | 1.90 | -11.02 | 307.57 | -22.35 | 122.63 | 0.4451 | -998.2 | -741.6 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -11.30 | 307.35 | -22.57 | 122.91 | 0.4503 | -605.0 | -621.8 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -11.61 | 307.22 | -22.70 | 123.36 | 0.4544 | -913.0 | -676.7 | |
| 10.41 | 32.35 | 5.80 | 18.02 | -12.04 | 307.15 | -22.77 | 124.08 | 0.4589 | 733.7 | -197.0 | |
| 0.00 | 4.56 | 0.00 | 2.59 | -14.16 | 306.17 | -23.75 | 126.72 | 0.4892 | -1027.0 | -894.6 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -13.17 | 306.25 | -23.67 | 125.09 | 0.4798 | -667.0 | -659.1 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -12.46 | 306.32 | -23.60 | 123.91 | 0.4730 | 218.0 | 328.3 | |
| 0.43 | 4.04 | 0.24 | 2.26 | -10.69 | 306.12 | -23.80 | 120.41 | 0.4618 | -992.4 | -742.9 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -14.45 | 305.67 | -24.25 | 126.65 | 0.4978 | -599.0 | -559.1 | |
| 0.00 | 2.41 | 0.00 | 1.35 | -10.87 | 305.84 | -24.09 | 120.48 | 0.4670 | -814.0 | -739.9 | |
| 0.00 | 3.53 | 0.00 | 1.99 | -11.83 | 305.55 | -24.37 | 121.95 | 0.4780 | -536.0 | -532.0 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -10.55 | 305.53 | -24.39 | 119.55 | 0.4686 | -883.0 | -777.2 | |
| 0.00 | 3.53 | 0.00 | 1.98 | -10.85 | 305.44 | -24.48 | 120.04 | 0.4721 | -1003.0 | -910.9 | |
| 0.00 | 4.39 | 0.00 | 2.47 | -11.16 | 305.31 | -24.61 | 120.49 | 0.4761 | -953.0 | -750.6 | |
| 0.00 | 4.04 | 0.00 | 2.26 | -9.97 | 305.38 | -24.54 | 118.31 | 0.4665 | -968.0 | -875.1 | |
| 9.03 | 13.16 | 5.07 | 7.39 | -10.58 | 305.20 | -24.72 | 119.30 | 0.4734 | -1076.9 | -853.7 | |
| 0.00 | 7.06 | 0.00 | 3.99 | -11.99 | 305.00 | -24.92 | 121.69 | 0.4864 | -580.0 | -550.2 | |
| 0.00 | 2.58 | 0.00 | 1.45 | -10.92 | 304.97 | -24.95 | 119.71 | 0.4789 | -1064.0 | -824.4 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -10.50 | 304.97 | -24.95 | 118.92 | 0.4758 | -687.0 | -581.1 | |
| 0.00 | 1.55 | 0.00 | 0.87 | -11.14 | 304.85 | -25.07 | 119.99 | 0.4821 | -761.0 | -690.4 | |
| 2.06 | 21.85 | 1.17 | 12.36 | -10.81 | 304.71 | -25.21 | 119.25 | 0.4815 | -977.1 | -642.8 | |
| 0.00 | 2.06 | 0.00 | 1.17 | -12.07 | 304.52 | -25.40 | 121.35 | 0.4932 | -749.0 | -539.0 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -10.14 | 304.67 | -25.25 | 117.96 | 0.4774 | -686.0 | -485.7 | |
| 1.20 | 12.56 | 0.68 | 7.14 | -11.88 | 304.44 | -25.48 | 120.95 | 0.4929 | -887.3 | -723.5 | |
| 0.77 | -77.00 | 0.44 | -77.00 | -11.76 | 304.45 | -25.47 | 120.74 | 0.4918 | -1103.8 | 999999 | |
| 8.69 | -74.00 | 4.92 | -74.00 | -11.03 | 304.46 | -25.46 | 119.41 | 0.4865 | -1012.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -12.04 | 304.19 | -25.73 | 120.99 | 0.4974 | -506.0 | -430.8 | |
| 0.00 | 5.51 | 0.00 | 3.13 | -11.28 | 304.13 | -25.79 | 119.57 | 0.4926 | -895.0 | -821.2 | |
| 0.00 | 3.10 | 0.00 | 1.77 | -11.96 | 303.96 | -25.96 | 120.62 | 0.4997 | -478.0 | -542.4 | |
| 0.00 | 3.10 | 0.00 | 1.77 | -11.77 | 303.95 | -25.98 | 120.28 | 0.4985 | -718.0 | -666.7 | |
| 6.45 | 8.86 | 3.67 | 5.03 | -10.73 | 303.88 | -26.04 | 118.35 | 0.4921 | -926.5 | -606.4 | |
| 0.00 | 4.99 | 0.00 | 2.82 | -9.39 | 304.00 | -25.92 | 115.96 | 0.4817 | -955.0 | -818.9 | |
| 1.55 | 8.69 | 0.88 | 4.95 | -11.20 | 303.77 | -26.15 | 119.08 | 0.4968 | -789.9 | -647.3 | |
| 0.00 | 1.55 | 0.00 | 0.87 | -8.82 | 303.98 | -25.94 | 114.84 | 0.4784 | -878.0 | -659.6 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -9.15 | 303.92 | -26.00 | 115.43 | 0.4813 | -822.0 | -730.0 | |
| 0.00 | 1.46 | 0.00 | 0.85 | -13.39 | 303.39 | -26.53 | 122.54 | 0.5175 | -724.0 | -582.8 | |
| 0.00 | 2.75 | 0.00 | 1.56 | -9.61 | 303.71 | -26.21 | 116.13 | 0.4870 | -658.0 | -614.2 | |
| 0.00 | 2.15 | 0.00 | 1.23 | -10.99 | 303.55 | -26.37 | 118.52 | 0.4982 | -618.0 | -551.2 | |
| 0.00 | 1.89 | 0.00 | 1.06 | -7.97 | 303.81 | -26.11 | 113.06 | 0.4758 | -700.0 | -484.2 | |
| 0.00 | 1.55 | 0.00 | 0.89 | -11.20 | 303.43 | -26.49 | 118.80 | 0.5014 | -541.0 | -476.8 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -12.80 | 303.26 | -26.67 | 121.43 | 0.5149 | -599.0 | -521.9 | |
| 0.00 | 1.46 | 0.00 | 0.85 | -13.24 | 303.17 | -26.75 | 122.09 | 0.5192 | -794.0 | -633.9 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -7.46 | 303.71 | -26.21 | 111.98 | 0.4743 | -778.0 | -531.4 | |
| 0.00 | 5.16 | 0.00 | 2.95 | -10.72 | 303.34 | -26.58 | 117.84 | 0.4992 | -744.0 | -616.5 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -13.15 | 302.98 | -26.95 | 121.76 | 0.5210 | -655.0 | -537.2 | |
| 0.00 | 2.06 | 0.00 | 1.18 | -11.21 | 303.02 | -26.90 | 118.45 | 0.5068 | -562.0 | -501.5 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -11.35 | 302.40 | -27.53 | 118.16 | 0.5160 | -627.0 | -449.6 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -10.01 | 302.22 | -27.70 | 115.65 | 0.5098 | -645.0 | -517.6 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -9.59 | 302.16 | -27.76 | 114.83 | 0.5081 | -717.0 | -735.2 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -10.23 | 301.96 | -27.96 | 115.84 | 0.5147 | -574.0 | -525.3 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -13.28 | 301.55 | -28.37 | 120.71 | 0.5401 | -448.0 | -362.2 | |
| 0.00 | 1.98 | 0.00 | 1.14 | -9.56 | 301.89 | -28.03 | 114.58 | 0.5117 | -630.0 | -499.3 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -8.87 | 301.75 | -28.18 | 113.21 | 0.5097 | -521.0 | -451.5 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -10.04 | 301.26 | -28.66 | 114.95 | 0.5230 | -488.0 | -437.6 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -9.55 | 298.74 | -31.18 | 112.40 | 0.5544 | 701.0 | 463.5 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -9.17 | 296.17 | -33.75 | 110.28 | 0.5869 | 596.0 | 549.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
